SMAJ16A-E3/61 - Vishay
ESD protection diodes / TVS diodes; VISHAY; SMAJ16A-E3/61; 26 V; 15.4 A; 16 V; 17.8 V - 19.7 V
Technical Details
| Breakdown Voltage | 18.75V |
| Case/Package | SMA |
| China RoHS | Non-Compliant |
| Clamping Voltage | 26V |
| Direction | Unidirectional |
| Element Configuration | Single |
| Forward Voltage | 3.5V |
| Height | 2.087mm |
| Lead Free | Lead Free |
| Leakage Current | 1µA |
| Length | 4.5mm |
| Lifecycle Status | Production |
| Max Breakdown Voltage | 19.7V |
| Max Forward Surge Current (Ifsm) | 40A |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 3.3W |
| Max Reverse Leakage Current | 1µA |
| Max Surge Current | 15.4A |
| Min Breakdown Voltage | 17.8V |
| Min Operating Temperature | -55°C |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Operating Supply Voltage | 16V |
| Packaging | Tape and Reel |
| Peak Pulse Current | 15.4A |
| Peak Pulse Power | 400W |
| Peak Reverse Current | 1µA |
| Polarity | Unidirectional |
| Power Dissipation | 400W |
| Power Rating | 400W |
| Radiation Hardening | No |
| REACH SVHC | No |
| Reverse Breakdown Voltage | 17.8V |
| Reverse Standoff Voltage | 16V |
| RoHS | Compliant |
| Schedule B | 8541100080, 8541100080|8541100080|8541100080|8541100080|8541100080 |
| Termination | SMD/SMT |
| Test Current | 1mA |
| Voltage Rating (DC) | 16V |
| Width | 2.79mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

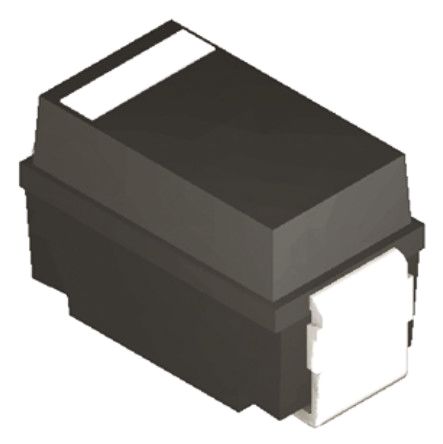

Images
RS
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| EIC Semiconductor | Production | ||
| Taiwan Semiconductor | Production | ||
| Vishay | Production | ||
| Vishay | Production | ||
| Littelfuse | Obsolete | ||
| Vishay | Obsolete | ||
| Vishay | Obsolete | ||
| Vishay | Obsolete | ||
| Lite-On | Obsolete | ||
| Meritek | Production |
