SMAJ170A-E3/5A - Vishay
Trans Voltage Suppressor Diode, 300W, 170V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AC
Technical Details
| Breakdown Voltage | 199V |
| Case/Package | SMA |
| China RoHS | Non-Compliant |
| Clamping Voltage | 275V |
| Direction | Unidirectional |
| Element Configuration | Single |
| Forward Voltage | 3.5V |
| Leakage Current | 1µA |
| Lifecycle Status | Production |
| Max Breakdown Voltage | 209V |
| Max Forward Surge Current (Ifsm) | 40A |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 3.3W |
| Max Reverse Leakage Current | 1µA |
| Max Surge Current | 1.09A |
| Min Breakdown Voltage | 189V |
| Min Operating Temperature | -55°C |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Operating Supply Voltage | 170V |
| Packaging | Tape and Reel |
| Peak Pulse Current | 1.09A |
| Peak Pulse Power | 300W |
| Peak Reverse Current | 1µA |
| Polarity | Unidirectional |
| Radiation Hardening | No |
| REACH SVHC | No |
| Reverse Breakdown Voltage | 189V |
| Reverse Standoff Voltage | 170V |
| RoHS | Compliant |
| Test Current | 1mA |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

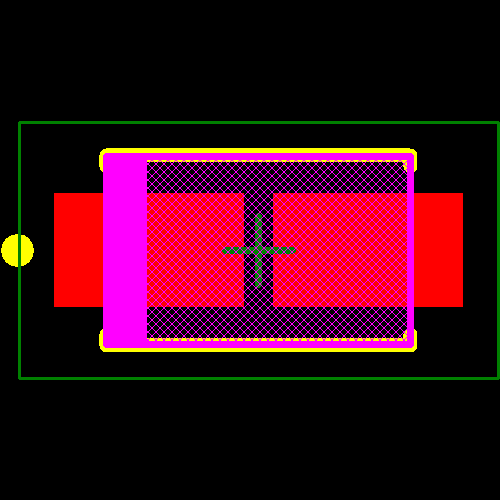

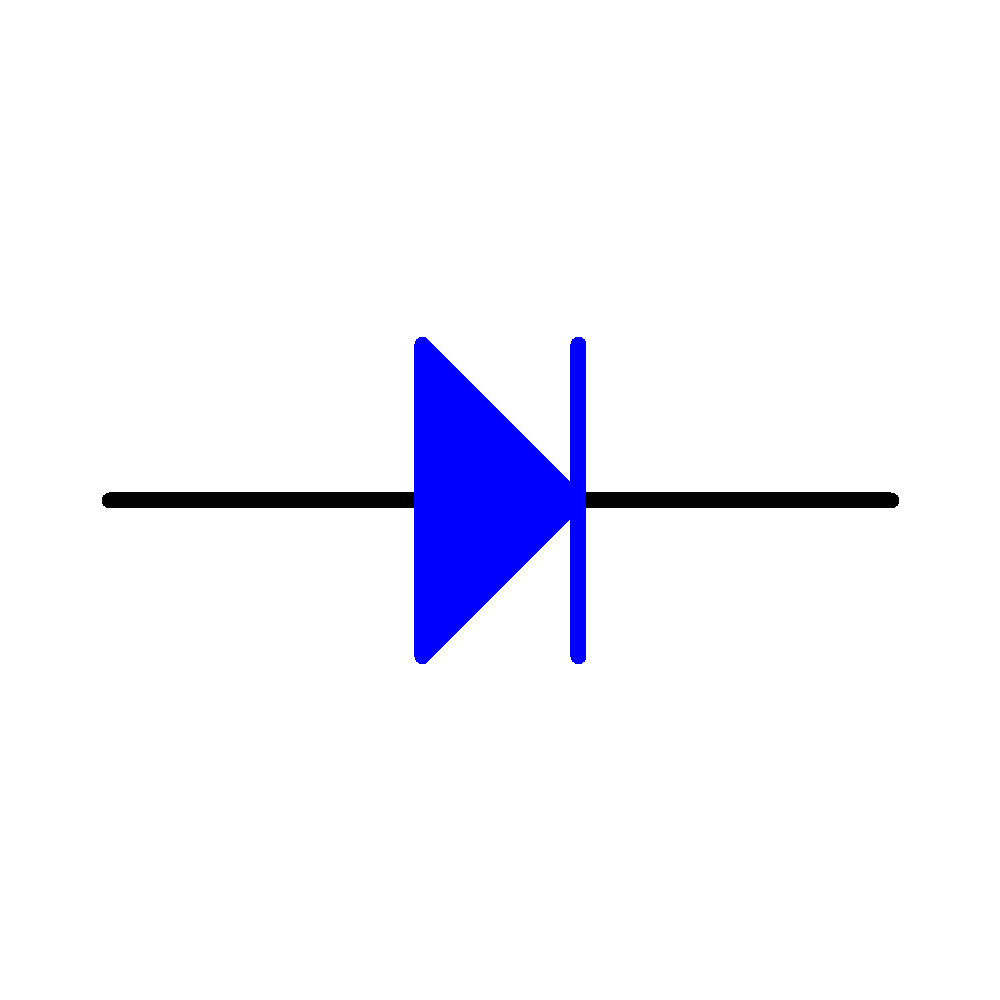

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| EIC Semiconductor | Production | ||
| Vishay | Production | ||
| Taiwan Semiconductor | Production | ||
| Vishay | Production | ||
| STMicroelectronics | Production | ||
| Vishay | Obsolete | ||
| Vishay | Obsolete | ||
| Vishay | Obsolete | ||
| Vishay | Obsolete | ||
| STMicroelectronics | Production |
