SMAJ170A-E3/61 - Vishay
1.09A 300W 275V 189V Unidirectional 170V SMA(DO-214AC) ESD and Surge Protection (TVS/ESD) ROHS
Technical Details
| Breakdown Voltage | 199V |
| Case/Package | SMA |
| China RoHS | Non-Compliant |
| Clamping Voltage | 275V |
| Composition | Zener |
| Country of Origin | Mainland China |
| Direction | Unidirectional |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Forward Voltage | 3.5V |
| Height | 2.087mm |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Introduction Date | 2001-01-01 |
| Lead Free | Lead Free |
| Leakage Current | 1µA |
| Length | 4.5mm |
| Lifecycle Status | Production |
| Max Breakdown Voltage | 209V |
| Max Forward Surge Current (Ifsm) | 40A |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 3.3W |
| Max Reverse Leakage Current | 1µA |
| Max Surge Current | 1.09A |
| Min Breakdown Voltage | 189V |
| Min Operating Temperature | -55°C |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Number of Unidirectional Channels | 1 |
| Operating Supply Voltage | 170V |
| Packaging | Tape and Reel |
| Peak Pulse Current | 1.09A |
| Peak Pulse Power | 300W |
| Peak Reverse Current | 1µA |
| Polarity | Unidirectional |
| Power Dissipation | 400W |
| Power Line Protection | No |
| Power Rating | 300W |
| Radiation Hardening | No |
| REACH SVHC | No |
| Reverse Breakdown Voltage | 189V |
| Reverse Standoff Voltage | 170V |
| RoHS | Compliant |
| Termination | SMD/SMT |
| Test Current | 1mA |
| Voltage Rating (DC) | 170V |
| Width | 2.79mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

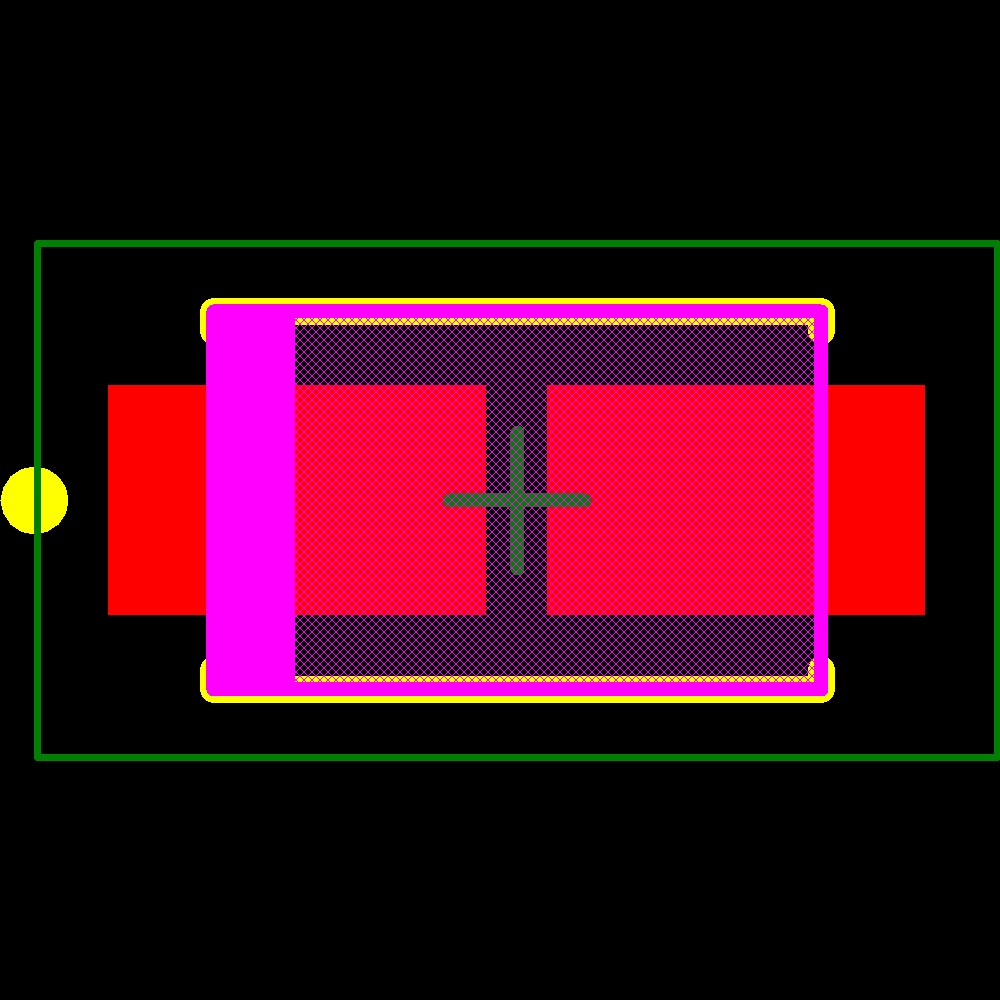

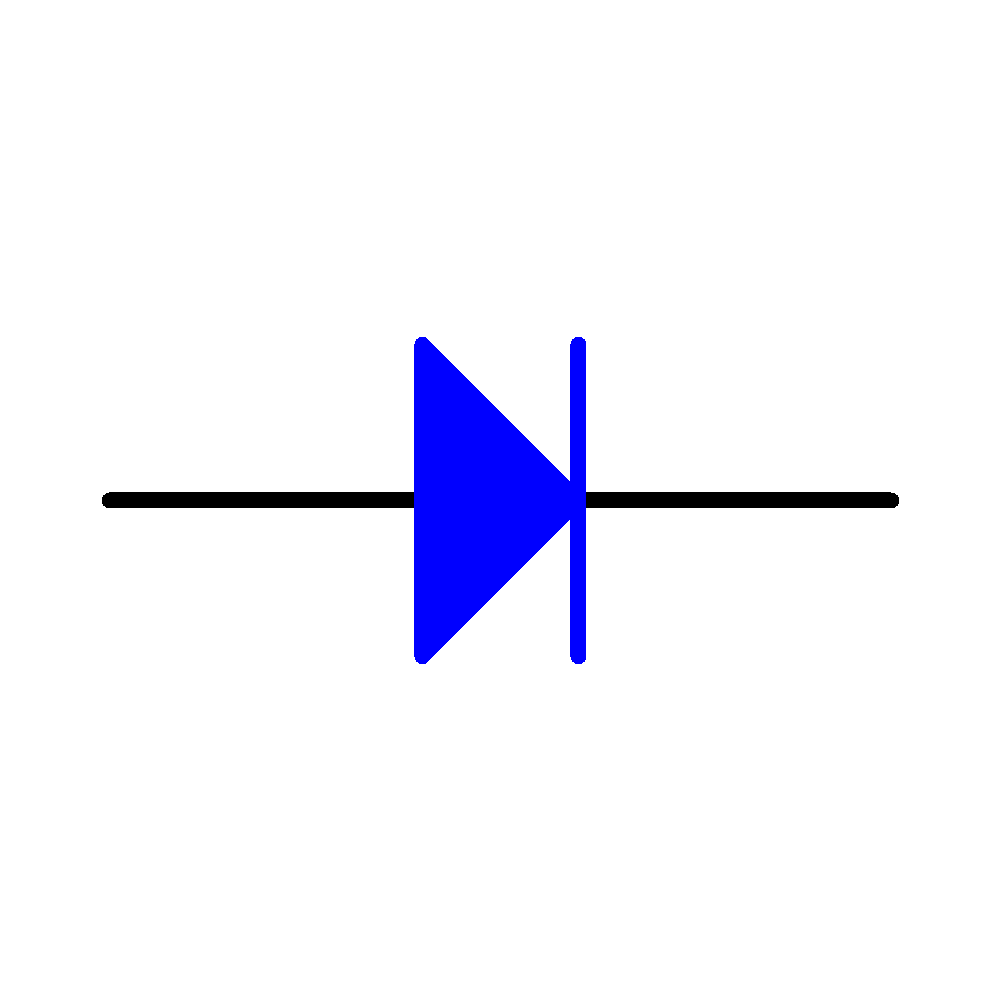

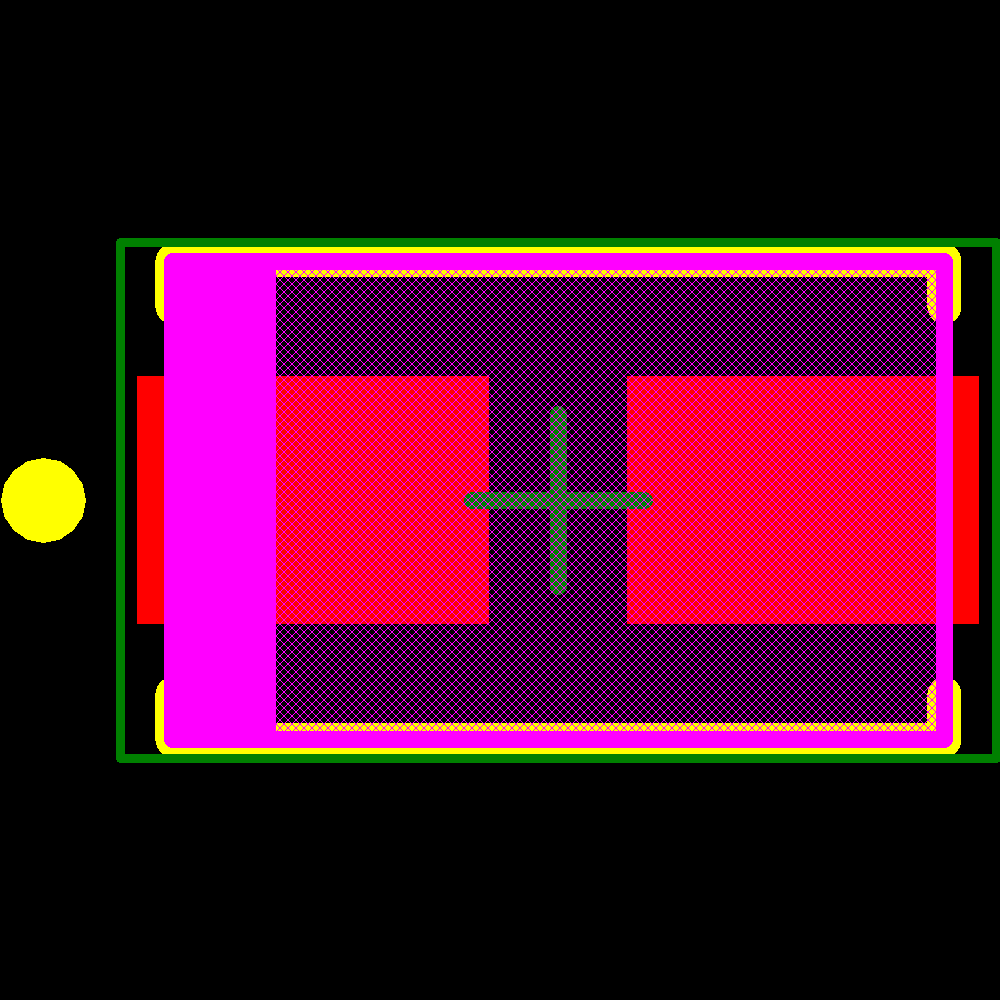

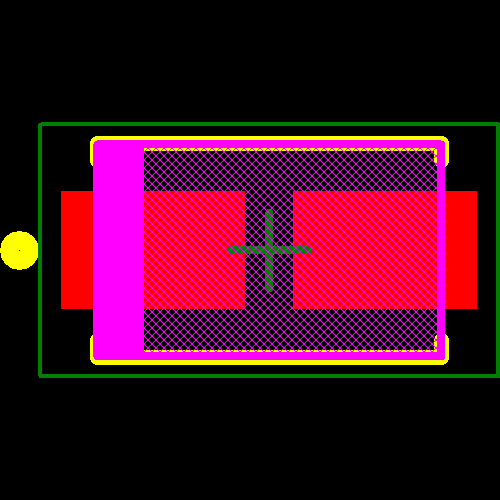

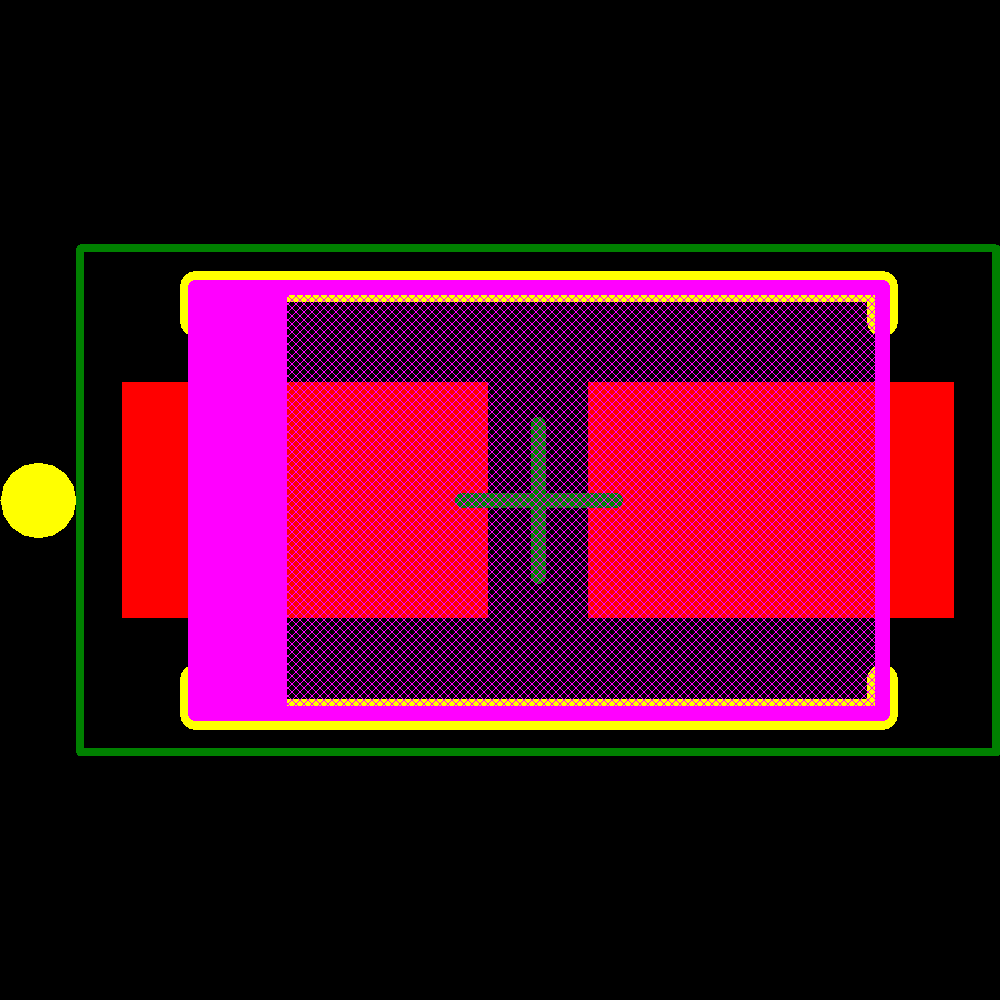

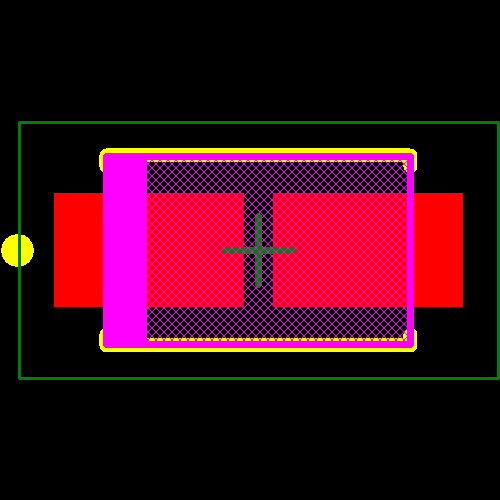

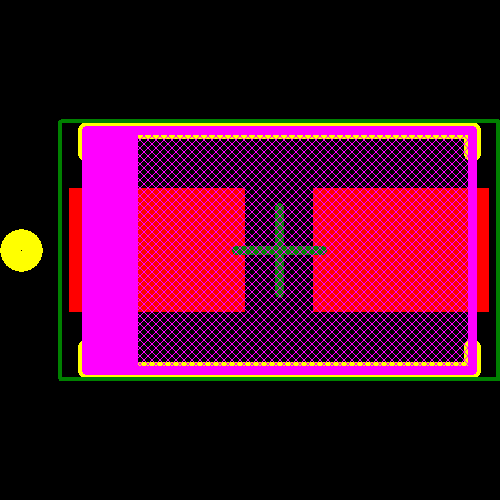

Images
