SMAJ60A-E3/5A - Vishay

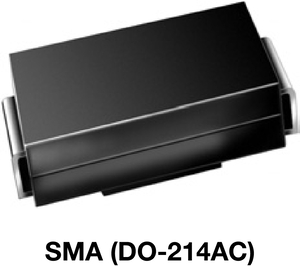

400 W 60 V Uni-Directional SMT Transient Voltage Suppressor Diode - DO-214AC
Technical Details
| Breakdown Voltage | 70.2V |
| China RoHS | Non-Compliant |
| Clamping Voltage | 96.8V |
| Country of Origin | Mainland China |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Forward Voltage | 3.5V |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Introduction Date | 2000-08-22 |
| Lifecycle Status | Production |
| Max Breakdown Voltage | 73.7V |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 3.3W |
| Min Breakdown Voltage | 66.7V |
| Min Operating Temperature | -55°C |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Terminals | 2 |
| Packaging | Tape and Reel |
| Peak Pulse Power | 400W |
| Peak Reverse Current | 1µA |
| Polarity | Unidirectional |
| REACH SVHC | No |
| Reverse Standoff Voltage | 60V |
| RoHS | Compliant |
| Schedule B | 8541100080 |
Compliance
RoHS : Unconfirmed
REACH SVHC : No
Images
Future Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Taiwan Semiconductor | Production | ||
| Vishay | Obsolete | ||
| Vishay | Production | ||
| Taiwan Semiconductor | Production | ||
| Vishay | Production | ||
| Vishay | Unknown | ||
| Vishay | Obsolete | ||
| Vishay | Obsolete | ||
| Vishay | Obsolete | ||
| Vishay | Unknown |
