Circuit Protection > TVS Diodes

SMAJ7.5A-E3/5A - Vishay

Trans Voltage Suppressor Diode, 400W, 7.5V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AC

Breakdown Voltage	8.77V
Case/Package	SMA
China RoHS	Non-Compliant
Clamping Voltage	12.9V
Composition	Zener
Country of Origin	Mainland China
Direction	Unidirectional
Export Control Classification Number (ECCN) Code	EAR99
Element Configuration	Single
Forward Voltage	3.5V
Harmonized Tariff Schedule (HTS) Code	8541.10.00.50
Introduction Date	2000-08-22
Leakage Current	1µA
Lifecycle Status	Production
Max Breakdown Voltage	9.21V
Max Forward Surge Current (Ifsm)	40A
Max Operating Temperature	150°C
Max Power Dissipation	3.3W
Max Reverse Leakage Current	1µA
Max Surge Current	3.3A
Min Breakdown Voltage	8.33V
Min Operating Temperature	-55°C
Number of Channels	1
Number of Elements	1
Number of Pins	2
Number of Terminals	2
Number of Unidirectional Channels	1
Operating Supply Voltage	7.5V
Packaging	Tape and Reel
Peak Pulse Current	3.3A
Peak Pulse Power	400W
Peak Reverse Current	100µA
Polarity	Unidirectional
Power Line Protection	No
REACH SVHC	No
Reverse Breakdown Voltage	8.33V
Reverse Standoff Voltage	7.5V
RoHS	Compliant
Test Current	1mA

RoHS : Unconfirmed

REACH SVHC : No

Production

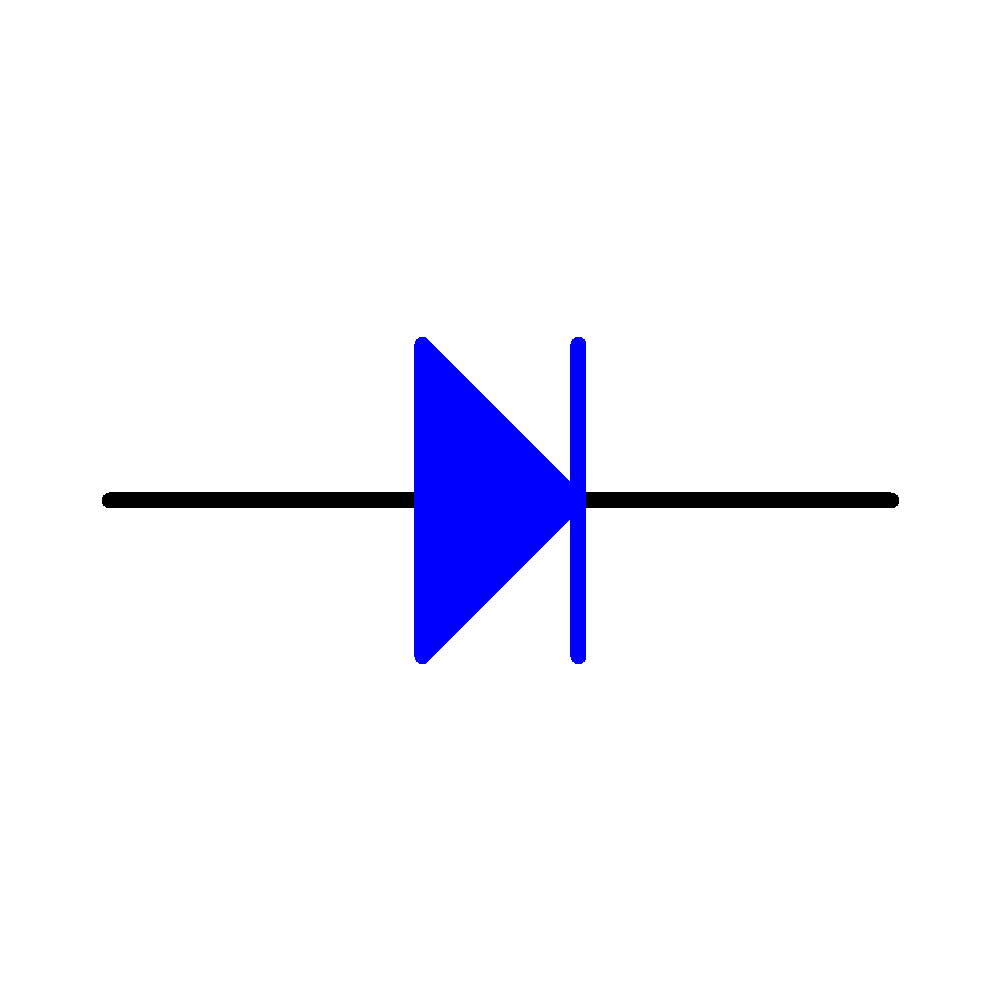

Symbol

‹ ›

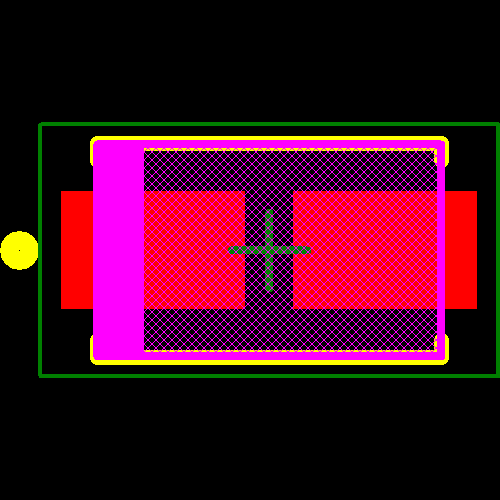

Footprint

‹ ›

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator
Bourns	CD214A-T7.5A	Obsolete
Vishay	SMAJ7.5A-E3	Production
Diodes Inc.	SMAJ7.5A-13	Obsolete
Bourns	SMAJ7.5A-H	Production
Taiwan Semiconductor	SMAJ7.5	Production
Diodes Inc.	SMAJ7.5A	Production
Vishay	SMAJ7.5A-E3/51	Obsolete
Vishay	SMAJ7.5A/63	Obsolete
Vishay	SMAJ7.5-E3/5A	Obsolete
Vishay	SMAJ7.5HE3/61	Obsolete
