SMAJ8.0CA-E3/5A - Vishay
SMAJ8.0 Series 8.89 V 400 W TRANSZORB® Transient Voltage Suppressor - DO-214AC
Technical Details
| Breakdown Voltage | 9.36V |
| Case/Package | SMA |
| China RoHS | Non-Compliant |
| Clamping Voltage | 13.6V |
| Composition | Zener |
| Direction | Bidirectional |
| Element Configuration | Single |
| Lead Free | Lead Free |
| Leakage Current | 100µA |
| Lifecycle Status | Production |
| Max Breakdown Voltage | 9.83V |
| Max Forward Surge Current (Ifsm) | 40A |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 3.3W |
| Max Reverse Leakage Current | 100µA |
| Max Surge Current | 29.4A |
| Min Breakdown Voltage | 8.89V |
| Min Operating Temperature | -55°C |
| Number of Bidirectional Channels | 1 |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Operating Supply Voltage | 8V |
| Packaging | Tape and Reel |
| Peak Pulse Current | 29.4A |
| Peak Pulse Power | 400W |
| Peak Reverse Current | 100µA |
| Polarity | Bidirectional |
| Power Line Protection | No |
| REACH SVHC | No |
| Reverse Breakdown Voltage | 8.89V |
| Reverse Standoff Voltage | 8V |
| RoHS | Compliant |
| Schedule B | 8541100080, 8541100080|8541100080|8541100080|8541100080|8541100080 |
| Test Current | 1mA |
Compliance
RoHS : Unconfirmed
REACH SVHC : No

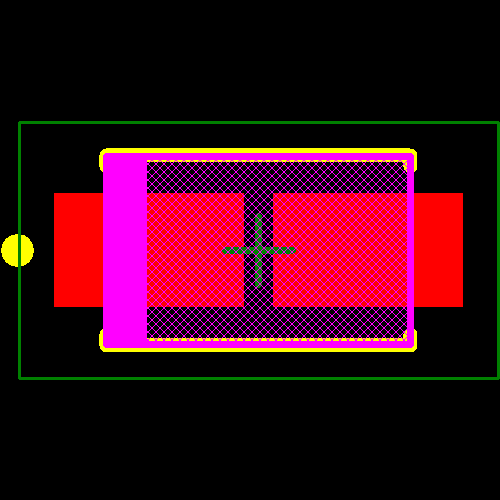

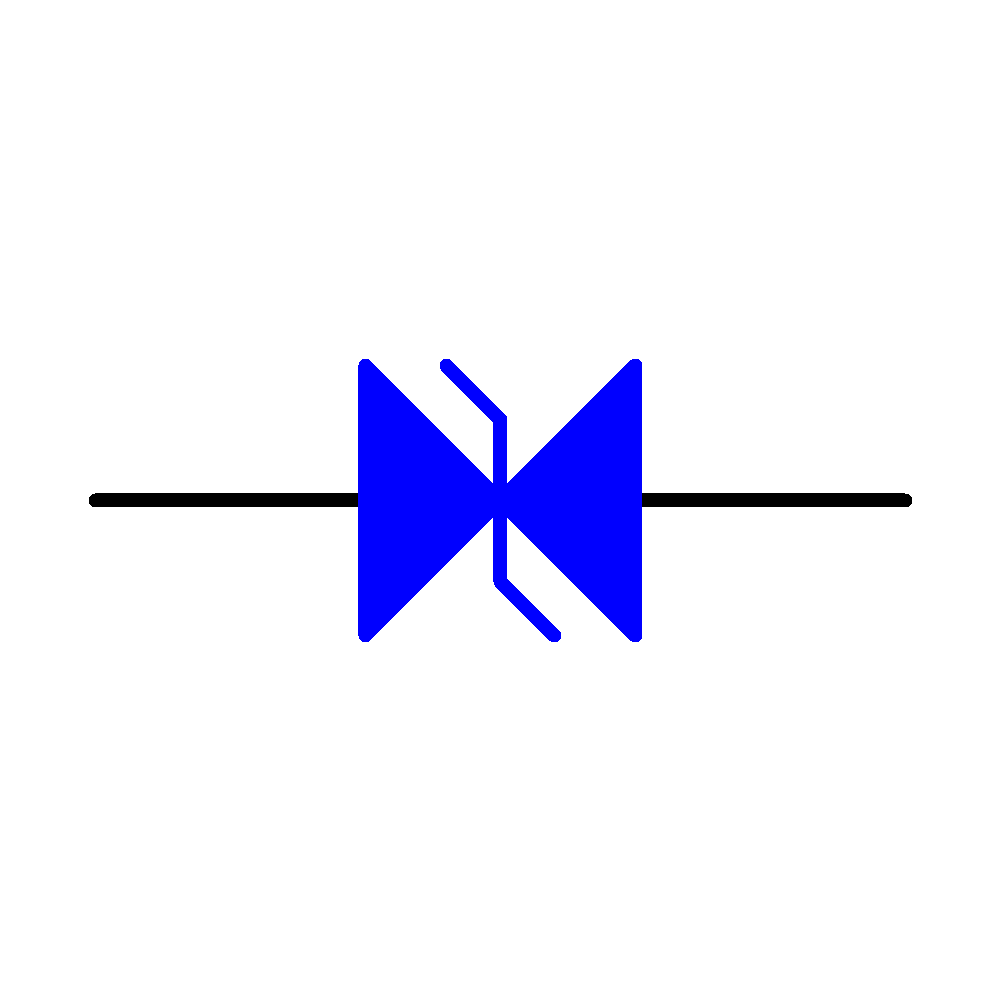

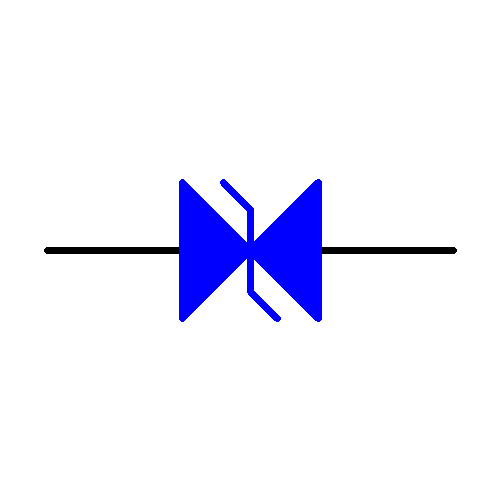

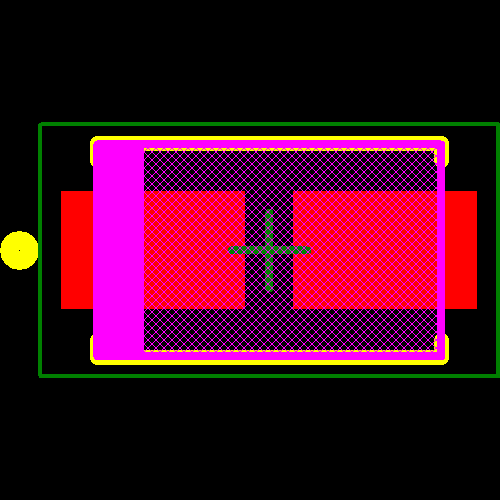

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Taiwan Semiconductor | Production | ||
| Bourns | Production | ||
| Taiwan Semiconductor | Production | ||
| MCC | Production | ||
| Vishay | Unknown | ||
| Vishay | Obsolete | ||
| Vishay | Production | ||
| Vishay | Obsolete | ||
| Vishay | Obsolete | ||
| Vishay | Obsolete |
