Technical Details
| Breakdown Voltage | 9.92V |
| Case/Package | SMA |
| China RoHS | Non-Compliant |
| Clamping Voltage | 14.4V |
| Composition | Zener |
| Country of Origin | Mainland China |
| Direction | Bidirectional |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Height | 2.29mm |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Introduction Date | 2001-01-01 |
| Lead Free | Lead Free |
| Leakage Current | 1µA |
| Length | 5.28mm |
| Lifecycle Status | Production |
| Max Breakdown Voltage | 10.4V |
| Max Forward Surge Current (Ifsm) | 40A |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 3.3W |
| Max Reverse Leakage Current | 1µA |
| Max Surge Current | 2.2A |
| Min Breakdown Voltage | 9.44V |
| Min Operating Temperature | -55°C |
| Number of Bidirectional Channels | 1 |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Operating Supply Voltage | 8.5V |
| Packaging | Tape and Reel |
| Peak Pulse Current | 2.2A |
| Peak Pulse Power | 400W |
| Peak Reverse Current | 20µA |
| Polarity | Bidirectional |
| Power Dissipation | 400W |
| Power Line Protection | No |
| Power Rating | 400W |
| Radiation Hardening | No |
| REACH SVHC | No |
| Reverse Breakdown Voltage | 9.44V |
| Reverse Standoff Voltage | 8.5V |
| RoHS | Compliant |
| Termination | SMD/SMT |
| Test Current | 1mA |
| Width | 2.79mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

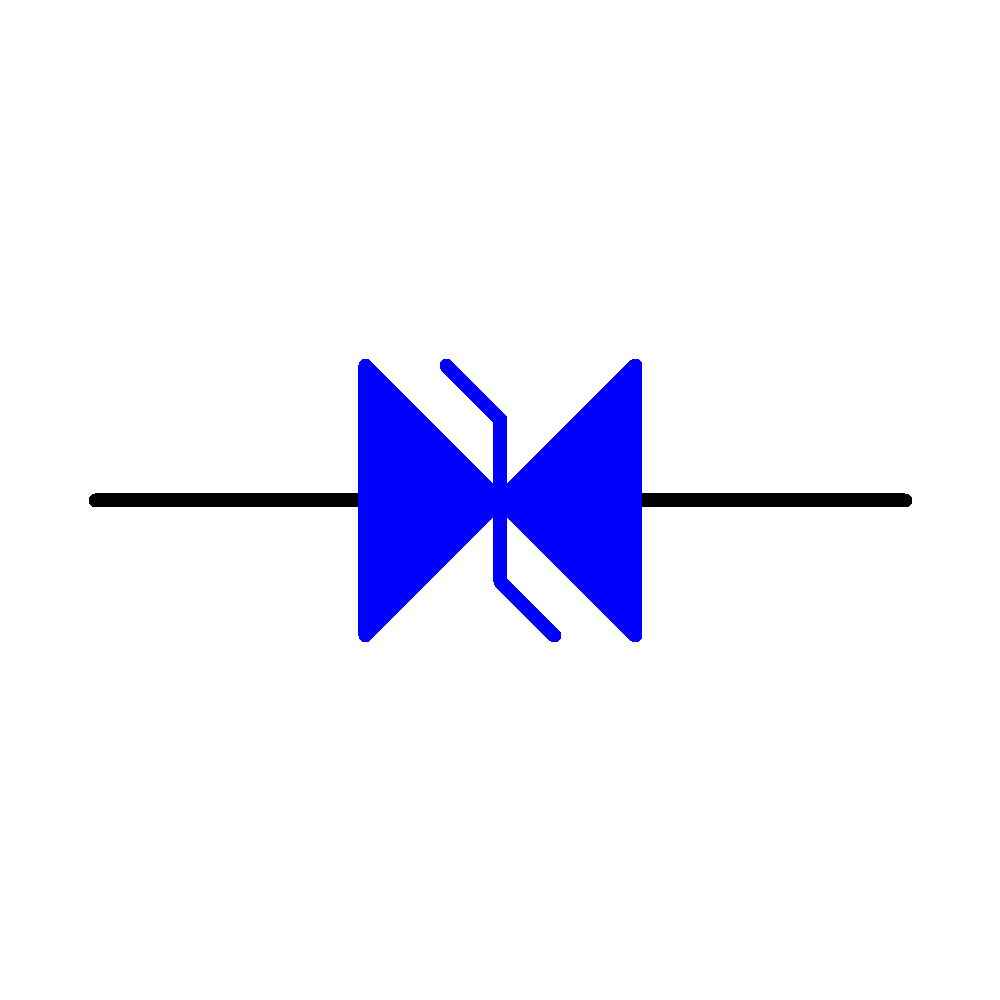

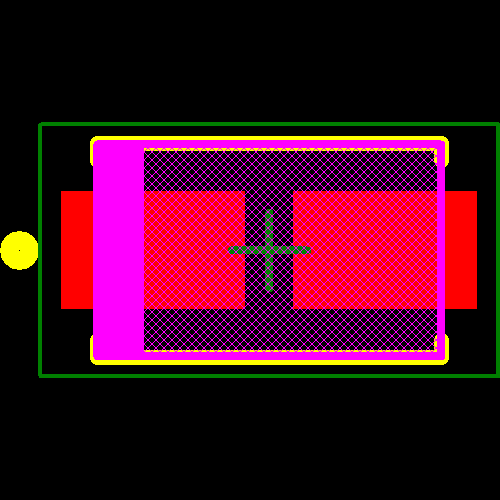

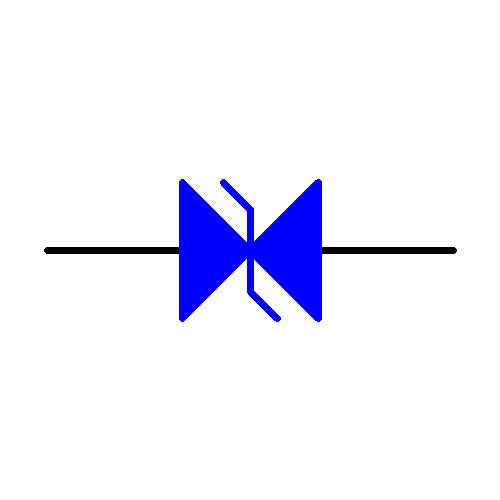

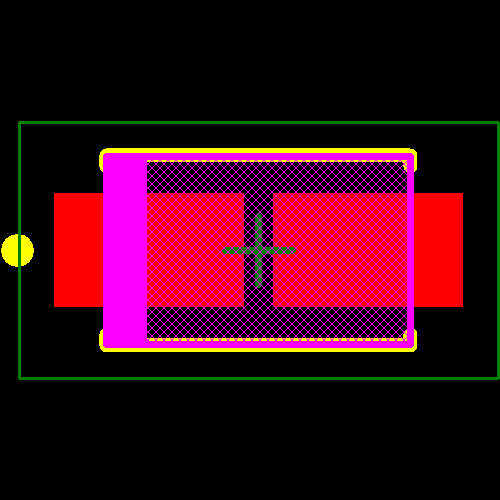

Images
Future Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Diodes Inc. | Obsolete | ||
| Vishay | Production | ||
| STMicroelectronics | Production | ||
| Taiwan Semiconductor | Production | ||
| Vishay | Obsolete | ||
| Vishay | Unknown | ||
| Vishay | Unknown | ||
| Vishay | Obsolete | ||
| Vishay | Obsolete | ||
| Vishay | Obsolete |
