SMBJ3V3-E3/52 - Vishay

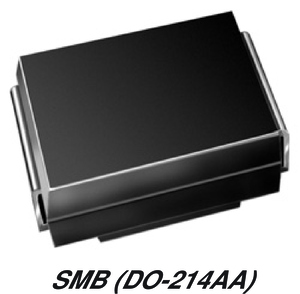

SMBJ Series 600 W 7.3 V Uni Directional Surface Mount TVS Diode - DO-214AA
Technical Details
| Breakdown Voltage | 4.1V |
| Capacitance | 5.2nF |
| China RoHS | Non-Compliant |
| Clamping Voltage | 7.3V |
| Contact Plating | Tin |
| Country of Origin | Mainland China |
| Direction | Unidirectional |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| ESD Protection | No |
| Height | 2.44mm |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Introduction Date | 2006-03-16 |
| Lead Free | Lead Free |
| Leakage Current | 200µA |
| Length | 4.5466mm |
| Lifecycle Status | Production |
| Max Breakdown Voltage | 4.1V |
| Max Junction Temperature (Tj) | 175°C |
| Max Operating Temperature | 175°C |
| Max Power Dissipation | 5W |
| Max Reverse Leakage Current | 200µA |
| Max Surge Current | 3.3A |
| Min Breakdown Voltage | 4.1V |
| Min Operating Temperature | -65°C |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Packaging | Cut Tape |
| Peak Pulse Current | 200A |
| Peak Pulse Power | 600W |
| Peak Reverse Current | 200µA |
| Polarity | Unidirectional |
| Power Dissipation | 600W |
| Power Rating | 600W |
| Radiation Hardening | No |
| REACH SVHC | No |
| Reverse Breakdown Voltage | 4.1V |
| Reverse Standoff Voltage | 3.3V |
| RoHS | Compliant |
| Schedule B | 8541100080, 8541100080|8541100080|8541100080|8541100080|8541100080 |
| Termination | SMD/SMT, Solder |
| Test Current | 1mA |
| Voltage Rating (DC) | 3.3V |
| Weight | 96mg |
| Width | 3.937mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No
