SMBJ58A-E3/52 - Vishay

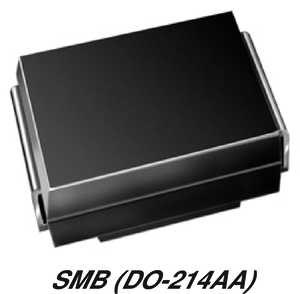

TVS Diode, TRANSZORB SMBJ Series, Unidirectional, 58 V, 93.6 V, DO-214AA (SMB), 2 Pins
Technical Details
| Breakdown Voltage | 67.8V |
| Case/Package | SMB |
| China RoHS | Non-Compliant |
| Clamping Current | 25A |
| Clamping Voltage | 93.6V |
| Contact Plating | Tin |
| Country of Origin | Mainland China |
| Direction | Bidirectional |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| ESD Protection | No |
| Forward Voltage | 3.5V |
| Height | 2.44mm |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Introduction Date | 2006-07-24 |
| Lead Free | Lead Free |
| Leakage Current | 1µA |
| Length | 5.59mm |
| Lifecycle Status | Production |
| Max Breakdown Voltage | 71.2V |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 5W |
| Max Reverse Leakage Current | 1µA |
| Max Surge Current | 6.4A |
| Max Voltage Rating (AC) | 130V |
| Max Voltage Rating (DC) | 170V |
| Min Breakdown Voltage | 64.4V |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Operating Supply Voltage | 58V |
| Packaging | Cut Tape |
| Peak Pulse Current | 6.4A |
| Peak Pulse Power | 600W |
| Peak Reverse Current | 1µA |
| Polarity | Unidirectional |
| Power Dissipation | 600W |
| Radiation Hardening | No |
| REACH SVHC | No |
| Reverse Breakdown Voltage | 64.4V |
| Reverse Standoff Voltage | 58V |
| RoHS | Compliant |
| Schedule B | 8541100080, 8541100080|8541100080|8541100080|8541100080|8541100080 |
| Termination | SMD/SMT |
| Test Current | 1mA |
| Width | 3.94mm |
