SMBZ5932B-E3/52 - Vishay
Zener Diode, single, Two Terminal, 20V V(Z), 5%, do-214Aa/Smb |Vishay SMBZ5932B-E3/52
Technical Details
| Case/Package | SMB |
| China RoHS | Non-Compliant |
| Element Configuration | Single |
| Impedance | 14Ω |
| Lifecycle Status | Production |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 550mW |
| Max Reverse Leakage Current | 1µA |
| Min Operating Temperature | -65°C |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Polarity | Unidirectional |
| Power Dissipation | 550mW |
| Radiation Hardening | No |
| REACH SVHC | No |
| Reference Voltage | 20V |
| RoHS | Compliant |
| Test Current | 18.7mA |
| Tolerance | 5% |
| Voltage Tolerance | 5% |
| Zener Current | 18.7mA |
| Zener Voltage | 20V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

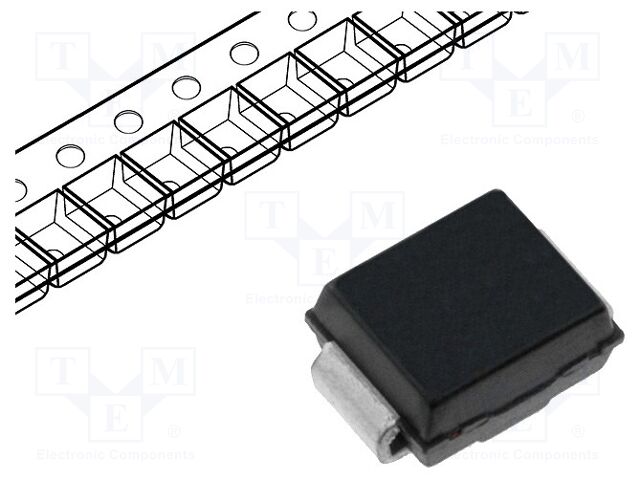

Images
TME
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Vishay | Production | ||
| Vishay | Production | ||
| Taiwan Semiconductor | Production | ||
| Taiwan Semiconductor | Production | ||
| onsemi | Production | ||
| Diodes Inc. | Production | ||
| Vishay | Production | ||
| Taiwan Semiconductor | Production | ||
| Taiwan Semiconductor | Production | ||
| Taiwan Semiconductor | Production |
