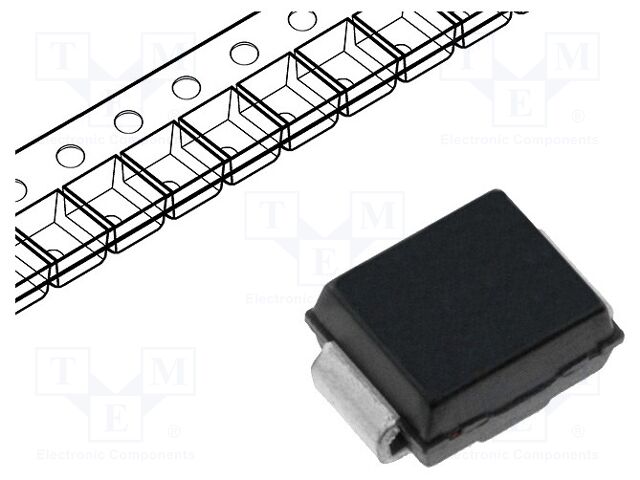

SMBZ5935B-M3/52 - Vishay
Zener Diode, 27V V(Z), 4.99%, 0.55W, Silicon, Unidirectional, DO-214AA
Technical Details
| Element Configuration | Single |
| Impedance | 23Ω |
| Lifecycle Status | Production |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 550mW |
| Max Reverse Leakage Current | 1µA |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Polarity | Unidirectional |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Reference Voltage | 27V |
| RoHS | Compliant |
| Tolerance | 2% |
| Voltage Tolerance | 4.99% |
| Zener Current | 13.9mA |
| Zener Voltage | 27V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes
