SMCG8.5AHE3/57T - Vishay
Transient Suppressor Diode, single, unidirectional, 8.5V V(Rwm), do-215Ab |Vishay SMCG8.5AHE3/57T
Technical Details
| Breakdown Voltage | 9.92V |
| China RoHS | Non-Compliant |
| Clamping Voltage | 14.4V |
| Composition | Zener |
| Direction | Unidirectional |
| Element Configuration | Single |
| Lifecycle Status | Production |
| Max Breakdown Voltage | 10.4V |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 6.5W |
| Max Reverse Leakage Current | 1µA |
| Max Surge Current | 10.9A |
| Min Breakdown Voltage | 9.44V |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Number of Unidirectional Channels | 1 |
| Operating Supply Voltage | 8.5V |
| Peak Pulse Current | 10.9A |
| Peak Pulse Power | 1.5kW |
| Polarity | Unidirectional |
| Power Line Protection | No |
| REACH SVHC | No |
| Reverse Standoff Voltage | 8.5V |
| RoHS | Compliant |
| Termination | SMD/SMT |
| Test Current | 1mA |
Compliance
RoHS : Unconfirmed
REACH SVHC : No

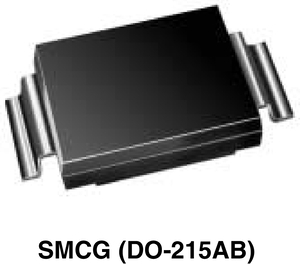

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Vishay | Obsolete | ||
| Vishay | Obsolete | ||
| Rectron | Production | ||
| Littelfuse | Obsolete | ||
| Taiwan Semiconductor | Production | ||
| Vishay | Production | ||
| Vishay | Production | ||
| Littelfuse | Obsolete | ||
| Vishay | Production | ||
| Taiwan Semiconductor | Obsolete |
