SMCJ8.5A-E3/57T - Vishay
104.2A 14.4V 1.5kW 9.44V 8.5V DO-214AB(SMCJ) ESD and Surge Protection (TVS/ESD) ROHS
Technical Details
| Breakdown Voltage | 9.92V |
| Case/Package | SMC |
| China RoHS | Non-Compliant |
| Clamping Voltage | 14.4V |
| Contact Plating | Tin |
| Direction | Unidirectional |
| Element Configuration | Single |
| Forward Voltage | 3.5V |
| Height | 2.62mm |
| Lead Free | Lead Free |
| Leakage Current | 1µA |
| Length | 8.13mm |
| Lifecycle Status | Production |
| Max Breakdown Voltage | 10.4V |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 6.5W |
| Max Reverse Leakage Current | 1µA |
| Max Surge Current | 10.9A |
| Min Breakdown Voltage | 9.44V |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Operating Supply Voltage | 8.5V |
| Peak Pulse Current | 10.9A |
| Peak Pulse Power | 1.5kW |
| Polarity | Unidirectional |
| Power Dissipation | 1.5kW |
| Radiation Hardening | No |
| REACH SVHC | No |
| Reverse Breakdown Voltage | 9.44V |
| Reverse Standoff Voltage | 8.5V |
| RoHS | Compliant |
| Schedule B | 8541100080, 8541100080|8541100080|8541100080|8541100080|8541100080 |
| Termination | SMD/SMT |
| Test Current | 1mA |
| Width | 6.22mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

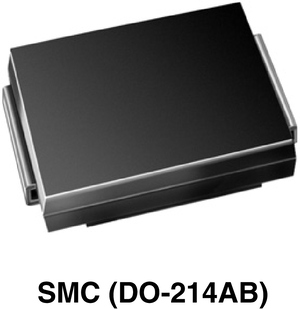

Images
