Technical Details
| Breakdown Voltage | 9.92V |
| Case/Package | SMC |
| China RoHS | Non-Compliant |
| Clamping Voltage | 14.4V |
| Country of Origin | Mainland China |
| Direction | Unidirectional |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Forward Voltage | 3.5V |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Introduction Date | 2002-05-02 |
| Leakage Current | 1µA |
| Lifecycle Status | Production |
| Max Breakdown Voltage | 10.4V |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 6.5W |
| Max Reverse Leakage Current | 1µA |
| Max Surge Current | 200A |
| Min Breakdown Voltage | 9.44V |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Operating Supply Voltage | 8.5V |
| Peak Pulse Current | 10.9A |
| Peak Pulse Power | 1.5kW |
| Polarity | Unidirectional |
| REACH SVHC | No |
| Reverse Breakdown Voltage | 9.44V |
| Reverse Standoff Voltage | 8.5V |
| RoHS | Compliant |
| Test Current | 1mA |
Compliance
RoHS : Unconfirmed
REACH SVHC : No

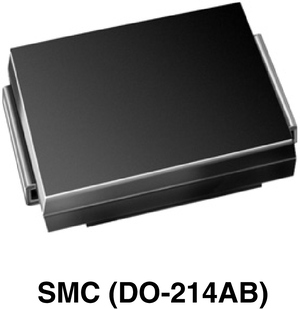

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| MCC | Production | ||
| Vishay | Production | ||
| STMicroelectronics | Obsolete | ||
| Vishay | Obsolete | ||
| Diodes Inc. | Production | ||
| Central Semiconductor | Unknown | ||
| Diodes Inc. | Obsolete | ||
| Vishay | Obsolete | ||
| Vishay | Obsolete | ||
| Vishay | Production |
