SMF12A-E3-08 - Vishay
SMFxxA Series 200 W 19.9 Vcl SMT ESD Protection TVS Diode - DO-219AB
Technical Details
| Breakdown Voltage | 14V |
| Capacitance | 483pF |
| China RoHS | Non-Compliant |
| Clamping Voltage | 19.9V |
| Composition | Zener |
| Depth | 1.9mm |
| Direction | Unidirectional |
| Element Configuration | Single |
| Forward Voltage | 2.5V |
| Height | 1.08mm |
| Leakage Current | 100nA |
| Length | 2.9mm |
| Lifecycle Status | Production |
| Max Breakdown Voltage | 14.7V |
| Max Junction Temperature (Tj) | 175°C |
| Max Operating Temperature | 150°C |
| Max Reverse Leakage Current | 100nA |
| Min Breakdown Voltage | 13.3V |
| Min Operating Temperature | -65°C |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Number of Unidirectional Channels | 1 |
| Operating Supply Voltage | 12V |
| Packaging | Tape & Reel (TR) |
| Peak Pulse Current | 10.1A |
| Peak Pulse Power | 200W |
| Peak Reverse Current | 100nA |
| Polarity | Unidirectional |
| Power Line Protection | No |
| Radiation Hardening | No |
| REACH SVHC | No |
| Reverse Standoff Voltage | 12V |
| RoHS | Compliant |
| Schedule B | 8536300000, 8536300000|8536300000|8536300000|8536300000|8536300000 |
| Test Current | 1mA |
| Working Voltage | 12V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

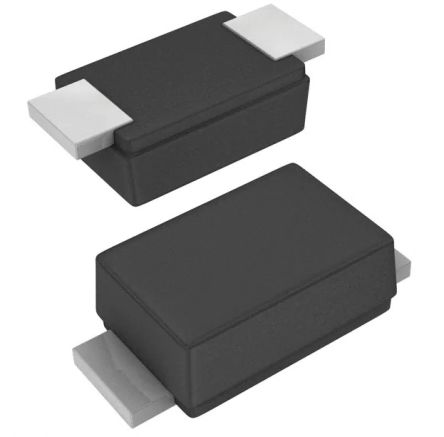

Images
