SMF12A-HE3-18 - Vishay
Esd Protection Diode Smf Do219Ab12V, ir0.1 A, ip10.1A, p1Kw, cd483Pf, 30Kv |Vishay SMF12A-HE3-18
Technical Details
| Breakdown Voltage | 14V |
| China RoHS | Non-Compliant |
| Clamping Voltage | 19.9V |
| Composition | Zener |
| Depth | 1.9mm |
| Direction | Unidirectional |
| Element Configuration | Single |
| Forward Voltage | 2.5V |
| Leakage Current | 100nA |
| Length | 2.9mm |
| Lifecycle Status | Obsolete |
| Max Breakdown Voltage | 14.7V |
| Max Operating Temperature | 150°C |
| Min Breakdown Voltage | 13.3V |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Number of Unidirectional Channels | 1 |
| Packaging | Tape & Reel (TR) |
| Peak Pulse Current | 10.1A |
| Peak Pulse Power | 1kW |
| Peak Reverse Current | 100nA |
| Polarity | Unidirectional |
| Power Line Protection | No |
| Radiation Hardening | No |
| REACH SVHC | No |
| Reverse Standoff Voltage | 12V |
| RoHS | Compliant |
| Working Voltage | 12V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

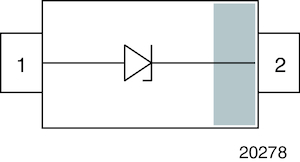

Images
