SMF24A-HE3-08 - Vishay
DO-219AB Automotive AEC-Q101 1 Surface Mount Zener Tvs Diode 38.9V 5.1A 200W 244pF @ 1MHz
Technical Details
| Breakdown Voltage | 28.15V |
| China RoHS | Non-Compliant |
| Clamping Voltage | 38.9V |
| Composition | Zener |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Forward Voltage | 2.5V |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Introduction Date | 2013-11-19 |
| Lifecycle Status | Obsolete |
| Max Breakdown Voltage | 29.6V |
| Max Operating Temperature | 150°C |
| Min Breakdown Voltage | 26.7V |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of Terminals | 2 |
| Number of Unidirectional Channels | 1 |
| Packaging | Tape & Reel (TR) |
| Peak Pulse Current | 5.1A |
| Peak Pulse Power | 1kW |
| Peak Reverse Current | 100nA |
| Polarity | Unidirectional |
| Power Line Protection | No |
| REACH SVHC | No |
| Reverse Standoff Voltage | 24V |
| RoHS | Compliant |
Compliance
RoHS : Unconfirmed
REACH SVHC : No

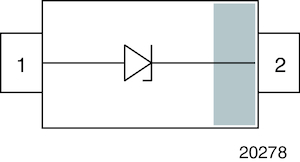

Images
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| DigiKey |
DE: 14682
|
$ | 0.5054 | 0.3119 | 0.3119 | 0.5054 | 0.1325 | 0.1325 | ||
| DigiKey |
DE: 12000
|
$ | 0.112 | |||||||
| Mouser |
US: 28187
|
$ | 0.48 | 0.296 | 0.296 | 0.188 | 0.126 | 0.091 | ||
