SMF33A-E3-08 - Vishay
3.8A 53.3V 200W 36.7V 33V SMF ESD and Surge Protection (TVS/ESD) ROHS
Technical Details
| Breakdown Voltage | 38.65V |
| Capacitance | 198pF |
| China RoHS | Non-Compliant |
| Clamping Voltage | 53.3V |
| Composition | Zener |
| Country of Origin | Mainland China |
| Direction | Unidirectional |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| ESD Protection | Yes |
| Forward Voltage | 2.5V |
| Height | 1.08mm |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Introduction Date | 2013-11-19 |
| Length | 2.8mm |
| Lifecycle Status | Production |
| Max Breakdown Voltage | 40.6V |
| Max Junction Temperature (Tj) | 175°C |
| Max Operating Temperature | 150°C |
| Max Reverse Leakage Current | 1A |
| Min Breakdown Voltage | 36.7V |
| Min Operating Temperature | -65°C |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Number of Unidirectional Channels | 1 |
| Peak Pulse Current | 3.8A |
| Peak Pulse Power | 200W |
| Peak Reverse Current | 100nA |
| Polarity | Unidirectional |
| Power Line Protection | No |
| REACH SVHC | No |
| Reverse Standoff Voltage | 33V |
| RoHS | Compliant |
| Schedule B | 8536300000, 8536300000|8536300000|8536300000|8536300000|8536300000 |
| Test Current | 1mA |
| Width | 1.8mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : No

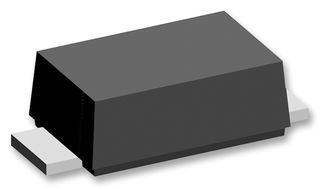

Images
