Technical Details

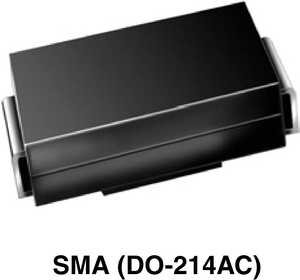

| Case/Package | SMA |
| China RoHS | Non-Compliant |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Impedance | 8Ω |
| Introduction Date | 2011-01-11 |
| Lifecycle Status | Production |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 1W |
| Max Reverse Leakage Current | 5µA |
| Min Operating Temperature | -65°C |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Polarity | Unidirectional |
| Power Dissipation | 1W |
| Radiation Hardening | No |
| REACH SVHC | No |
| Reference Voltage | 11V |
| RoHS | Compliant |
| Tolerance | 10% |
| Voltage Tolerance | 10% |
| Zener Current | 23mA |
| Zener Voltage | 11V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No
