Technical Details
| Case/Package | SMA |
| Element Configuration | Single |
| Impedance | 23Ω |
| Lifecycle Status | Production |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 1W |
| Max Reverse Leakage Current | 5µA |
| Min Operating Temperature | -65°C |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Polarity | Unidirectional |
| Power Dissipation | 1W |
| Radiation Hardening | No |
| REACH SVHC | No |
| Reference Voltage | 22V |
| RoHS | Compliant |
| Tolerance | 10% |
| Voltage Tolerance | 10% |
| Zener Current | 11.5mA |
| Zener Voltage | 22V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

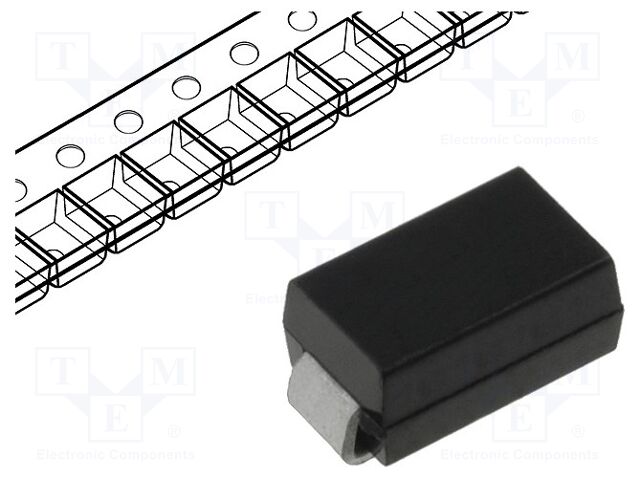

Images
TME
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Vishay | Production | ||
| Vishay | Production | ||
| Vishay | Production | ||
| Vishay | Obsolete | ||
| Rectron | Production | ||
| Vishay | Production | ||
| Vishay | Production | ||
| EIC Semiconductor | Production | ||
| EIC Semiconductor | Production | ||
| Renesas | Obsolete |
