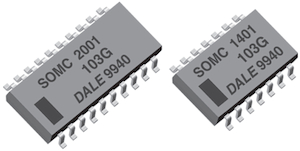

SOMC14014K70GEJ - Vishay
SOMC Series 13 Elements 4.7 kOhm ±2 % 50 V Thick Film Resistor Network - MDIP-14
Technical Details
| Case/Package | DIP |
| China RoHS | Non-Compliant |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Height | 2.03mm |
| Harmonized Tariff Schedule (HTS) Code | 8533.21.00.20 |
| Introduction Date | 2006-08-28 |
| Lead Free | Lead Free |
| Length | 9.91mm |
| Lifecycle Status | Production |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Circuits | 1 |
| Number of Elements | 13 |
| Number of Pins | 14 |
| Number of Resistors | 13 |
| Number of Terminals | 14 |
| Power Dissipation | 1.05W |
| Power Rating | 1.05W |
| Radiation Hardening | No |
| REACH SVHC | No |
| Resistance | 4.7kΩ |
| RoHS | Compliant |
| Temperature Coefficient | 100ppm/°C |
| Tolerance | 2% |
| Width | 5.59mm |
| Working Voltage | 50V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No
