SOMC14015K60GEA - Vishay
Array/Network Resistor, Bussed, Metal Glaze/thick Film, 1.05W, 5600ohm, 50V, 2% +/-Tol, 100ppm/Cel, Surface Mount, 2239
Technical Details
| Case/Package | SOIC |
| China RoHS | Non-Compliant |
| Circuit Type | Bussed |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Height | 2.03mm |
| Harmonized Tariff Schedule (HTS) Code | 8533.21.00.20 |
| Introduction Date | 2006-08-28 |
| Length | 9.906mm |
| Lifecycle Status | Production |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Circuits | 1 |
| Number of Contacts | 14 |
| Number of Elements | 13 |
| Number of Pins | 14 |
| Number of Resistors | 13 |
| Number of Terminals | 14 |
| Packaging | Tape & Reel (TR) |
| Power Dissipation | 1.05W |
| Power Per Element | 80mW |
| Power Rating | 1.05W |
| Radiation Hardening | No |
| REACH SVHC | No |
| Resistance | 5.6kΩ |
| RoHS | Compliant |
| Temperature Coefficient | 100ppm/°C |
| Thickness | 7.62mm |
| Tolerance | 2% |
| Voltage Rating (DC) | 50V |
| Width | 5.59mm |
| Working Voltage | 50V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

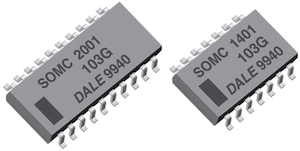

Images
