TDP16031003DUF - Vishay
Array/Network Resistor, Isolated, Thin Film, 0.8W, 100000ohm, 100V, 0.5% +/-Tol, 25ppm/Cel, Through Hole Mount, 7625
Technical Details
| Case/Package | DIP |
| Composition | Thin Film |
| Country of Origin | USA |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Height | 4.83mm |
| Harmonized Tariff Schedule (HTS) Code | 8533.21.00.60 |
| Introduction Date | 2007-03-11 |
| Lead Length | 3.3mm |
| Lead Pitch | 2.54mm |
| Length | 19.18mm |
| Lifecycle Status | Production |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Circuits | 8 |
| Number of Elements | 1 |
| Number of Pins | 16 |
| Number of Resistors | 8 |
| Number of Terminals | 16 |
| Packaging | Bulk |
| Power Dissipation | 800mW |
| Power Rating | 800mW |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Resistance | 100kΩ |
| RoHS | Non-Compliant |
| Temperature Coefficient | 25ppm/°C |
| Tolerance | 0.5% |
| Voltage Rating | 100V |
| Width | 6.35mm |
| Working Voltage | 100V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

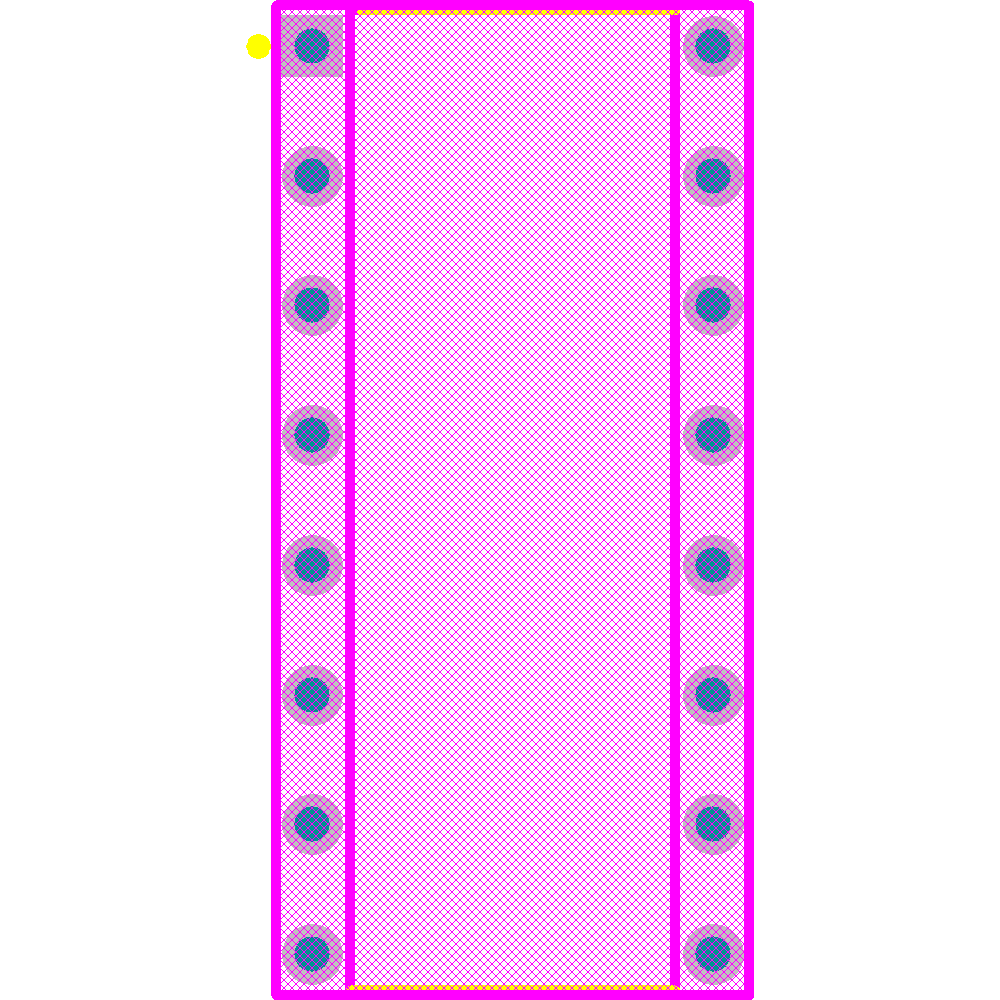

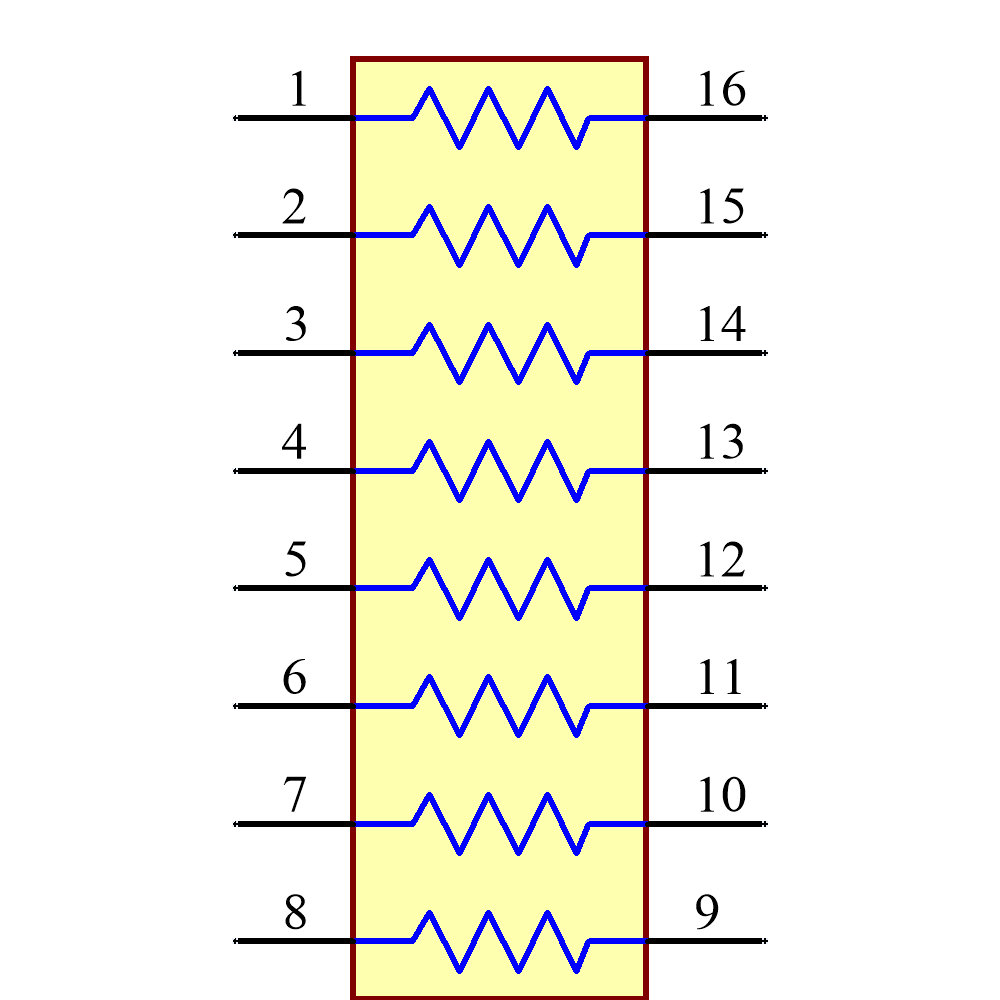

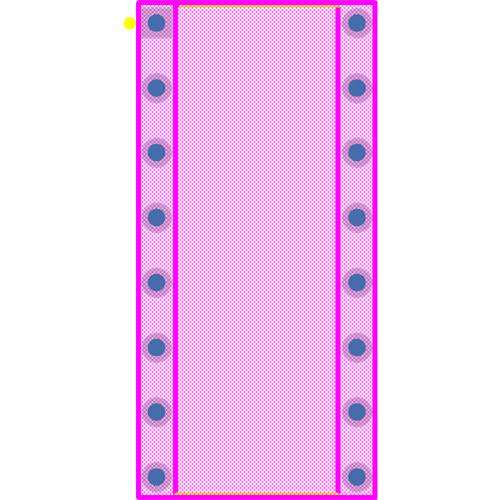

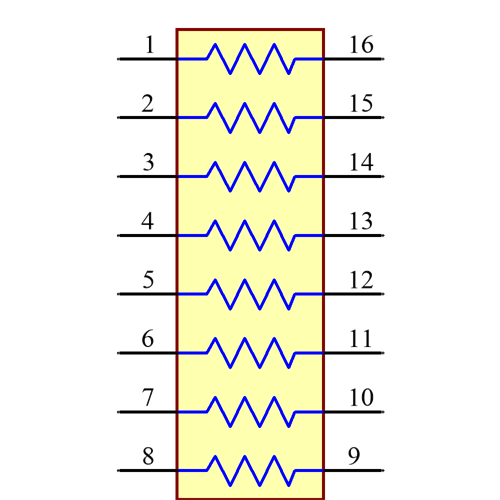

Images
