Technical Details
| Case/Package | DIP |
| Character Height | 13mm |
| Character Width | 7.4mm |
| China RoHS | Compliant |
| Color | Orange |
| Contact Plating | Silver |
| Depth | 17.5mm |
| Dominant Wavelength | 625nm |
| Element Configuration | Common Anode |
| Forward Current | 25mA |
| Forward Voltage | 3V |
| Height | 17.5006mm |
| Harmonized Tariff Schedule (HTS) Code | 8541.40.20.00 |
| Illumination Color | Orange |
| Introduction Date | 1987-04-29 |
| Length | 12.25mm |
| Lifecycle Status | Production |
| Luminous Intensity | 5mcd |
| Max Operating Temperature | 85°C |
| Max Power Dissipation | 550mW |
| Min Operating Temperature | -40°C |
| Mount | PCB, Through Hole |
| Number of Characters | 1 |
| Number of Circuits | 1 |
| Number of Elements | 8 |
| Number of Pins | 10 |
| Number of Positions | 1 |
| Number of Segments | 7 |
| Operating Supply Voltage | 2V |
| Peak Wavelength | 660nm |
| Power Dissipation | 550mW |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Reverse Voltage | 15V |
| RoHS | Compliant |
| Schedule B | 8531200040 |
| Test Current | 10mA |
| Viewing Angle | 50° |
| Viewing Area (height) | 13mm |
| Wavelength | 625nm |
| Width | 12.2428mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

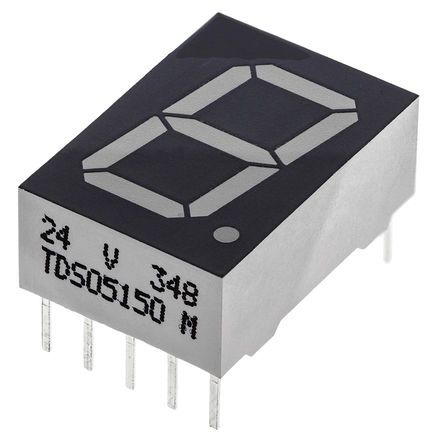

Images
