Technical Details
| Case/Package | DIP |
| Character Height | 13mm |
| China RoHS | Compliant |
| Color | Orange |
| Contact Plating | Silver |
| Depth | 17.5mm |
| Dominant Wavelength | 625nm |
| Element Configuration | Common Cathode |
| Forward Current | 25mA |
| Forward Voltage | 3V |
| Height | 17.5006mm |
| Harmonized Tariff Schedule (HTS) Code | 8541.40.20.00 |
| Introduction Date | 2001-08-08 |
| Length | 12.25mm |
| Lifecycle Status | Production |
| Luminous Intensity | 9mcd |
| Max Operating Temperature | 85°C |
| Max Power Dissipation | 550mW |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Characters | 1 |
| Number of Circuits | 1 |
| Number of Elements | 8 |
| Number of Pins | 10 |
| Peak Wavelength | 630nm |
| Power Dissipation | 550mW |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Reverse Voltage | 15V |
| RoHS | Compliant |
| Test Current | 10mA |
| Viewing Area (height) | 13mm |
| Width | 12.2428mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

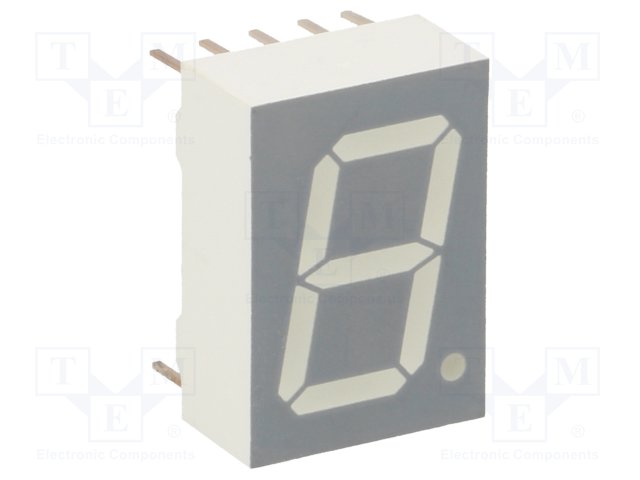

Images
