TR3D336M025C0200 - Vishay
Cap Tant Solid 33uF 25V D CASE 20% (7.3 X 4.3 X 2.8mm) SMD 7343-31 0.2 Ohm 125°C T/R
Technical Details
| Capacitance | 33µF |
| Case/Package | 2917 |
| Case Code (Imperial) | 2917 |
| Case Code (Metric) | 7343 |
| China RoHS | Compliant |
| Depth | 4.3mm |
| Dissipation Factor | 6% |
| ESR (Equivalent Series Resistance) | 200mΩ |
| Features | General Purpose |
| Height | 2.8mm |
| Height - Seated (Max) | 3.0988mm |
| Leakage Current | 8.3µA |
| Length | 7.3mm |
| Lifecycle Status | Production |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Terminals | 2 |
| Polarity | Polar |
| REACH SVHC | Yes |
| Ripple Current | 348mA |
| RoHS | Compliant |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage Rating | 25V |
| Voltage Rating (DC) | 25V |
| Width | 4.3mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

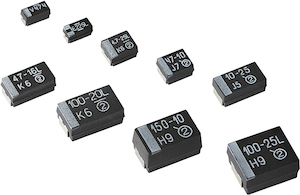

Images
