VESD12A1A-HD1-GS08 - Vishay
Trans Voltage Suppressor Diode, 200W, 12V V(RWM), Unidirectional, 1 Element, Silicon
Technical Details
| Breakdown Voltage | 14V |
| Capacitance | 65pF |
| China RoHS | Compliant |
| Clamping Voltage | 14.8V |
| Composition | Zener |
| Contact Plating | Gold |
| Depth | 650µm |
| Direction | Bidirectional |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Introduction Date | 2008-04-24 |
| Leakage Current | 100nA |
| Length | 1.05mm |
| Lifecycle Status | Obsolete |
| Max Breakdown Voltage | 16V |
| Max Operating Temperature | 125°C |
| Min Breakdown Voltage | 13.5V |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Number of Unidirectional Channels | 1 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 8A |
| Peak Pulse Power | 200W |
| Polarity | Unidirectional |
| Power Line Protection | No |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Reverse Standoff Voltage | 12V |
| RoHS | Compliant |
| Working Voltage | 12V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

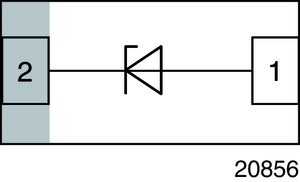

Images
