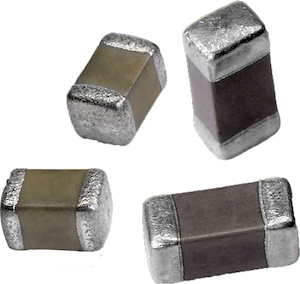

VJ0805A181FXBCW1BC - Vishay
Multilayer Ceramic Capacitor, 180 pF, 100 V, ± 1%, C0G (NP0), 0805 [2012 Metric]
Technical Details
| Capacitance | 180pF |
| Case/Package | 0805 |
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| China RoHS | Compliant |
| Country of Origin | Mainland China, Taiwan |
| Depth | 1.25mm |
| Dielectric | C0G |
| Dielectric Material | Ceramic |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Height | 750µm |
| Harmonized Tariff Schedule (HTS) Code | 8532.24.00.20 |
| Introduction Date | 2005-06-27 |
| Lead Free | Lead Free |
| Length | 2mm |
| Lifecycle Status | Production |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Terminals | 2 |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Termination | SMD/SMT |
| Tolerance | 1% |
| Voltage Rating (DC) | 100V |
| Width | 1.25mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes
Images
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| DigiKey |
DE: 0
|
$ | 0.1713 | |||||||
| Avnet Abacus |
EU: 0
|
$ | ||||||||
| Avnet |
US: 0
|
$ | 0.1264 | |||||||
| Arrow Electronics |
US: 0
|
$ | 0.1441 | |||||||
| Mouser |
US: 0
|
$ | 0.72 | 0.476 | 0.476 | 0.297 | 0.22 | 0.155 | ||
Non-Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Augswan |
CN: 81
|
$ | 0.1082 | 0.106 | 0.106 | 0.1028 | 0.0996 | 0.0952 | ||
