ZM4728A-GS08 - Vishay
ZENER DIODE Zener Diode, 3.3V V(Z), 5%, 1W, Silicon, Unidirectional, DO-213AB
Technical Details
| Body Material | Glass |
| Breakdown Voltage | 3.3V |
| Case/Package | MELF |
| Country of Origin | Germany, Japan |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Impedance | 10Ω |
| Introduction Date | 2004-06-18 |
| Lead Free | Lead Free |
| Lifecycle Status | Production |
| Max Operating Temperature | 175°C |
| Max Power Dissipation | 1W |
| Max Reverse Leakage Current | 100µA |
| Min Operating Temperature | -65°C |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Packaging | Cut Tape |
| Peak Reverse Current | 100µA |
| Polarity | Unidirectional |
| Power Dissipation | 1W |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Reference Voltage | 3.3V |
| RoHS | Compliant |
| Schedule B | 8541100050, 8541100050|8541100050|8541100050|8541100050|8541100050 |
| Test Current | 76mA |
| Tolerance | 5% |
| Voltage Tolerance | 5% |
| Working Voltage | 3.3V |
| Zener Current | 76mA |
| Zener Voltage | 3.3V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

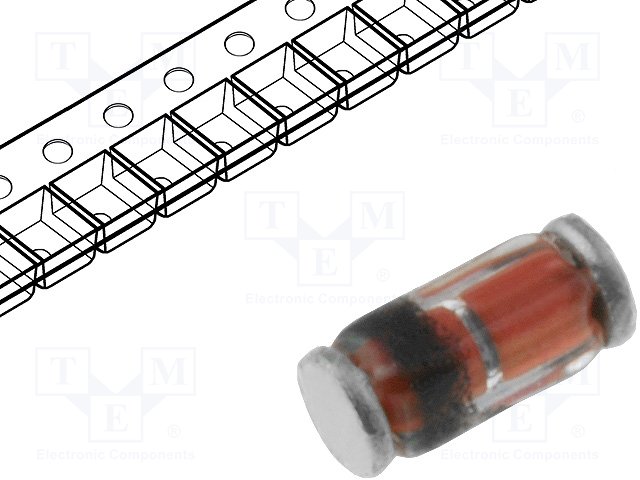

Images
TME
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Taiwan Semiconductor | Production | ||
| Diodes Inc. | Obsolete | ||
| Central Semiconductor | Unknown | ||
| Central Semiconductor | Obsolete | ||
| Vishay | Production | ||
| Rectron | Production | ||
| Rectron | Production | ||
| Microchip | Production | ||
| Diodes Inc. | Obsolete | ||
| Diodes Inc. | Obsolete |
