W25Q16VSSIG - Winbond
EAR99 Surface Mount Tube 2MX8 ic memory 80MHz 50mus 3ms 5.28mm 0.000005A
Technical Details
| Case/Package | SOP |
| China RoHS | Compliant |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Frequency | 80MHz |
| Height - Seated (Max) | 2.16mm |
| Harmonized Tariff Schedule (HTS) Code | 8542.32.00.51 |
| Interface | Serial |
| Introduction Date | 2007-03-01 |
| Length | 5.28mm |
| Lifecycle Status | Obsolete |
| Max Frequency | 80MHz |
| Max Operating Temperature | 85°C |
| Max Supply Current | 18mA |
| Max Supply Voltage | 3.6V |
| Memory Type | FLASH |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.7V |
| Number of Circuits | 1 |
| Number of Terminals | 8 |
| Operating Supply Voltage | 3V |
| RoHS | Compliant |
| Temperature Grade | Industrial |
| Terminal Pitch | 1.27mm |
| Width | 5.28mm |
Compliance
RoHS : Unconfirmed

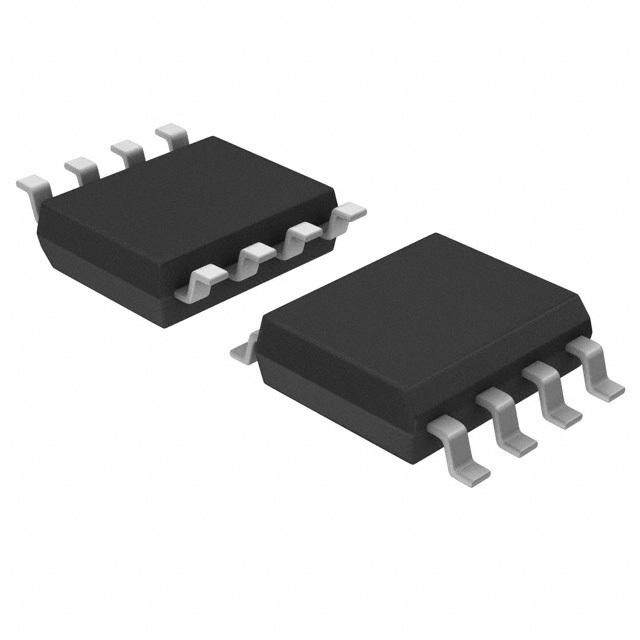

Images
