Technical Details
| Actuator Length | 900µm |
| Actuator Material | Liquid Crystal Polymer, Polymer |
| Color | Orange |
| Contact Current Rating | 50mA |
| Contact Material | Stainless Steel, Steel |
| Contact Plating | Silver |
| Current Rating | 50mA |
| Diameter | 3.5mm |
| Height | 4.3mm |
| Illumination Type | Illuminated, Non-Illuminated |
| Insulation Resistance | 100MΩ |
| Length | 6.2mm |
| Max Operating Temperature | 85°C |
| Mechanical Life | 200kcycles |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Packaging | Tape and Reel |
| REACH SVHC | No |
| RoHS | Compliant |
| Switch Function | Off-Mom |
| Switch Travel | 250µm |
| Termination | Gull Wing |
| Throw Configuration | SPST |
| Voltage Rating | 12V |
| Width | 6.2mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : No

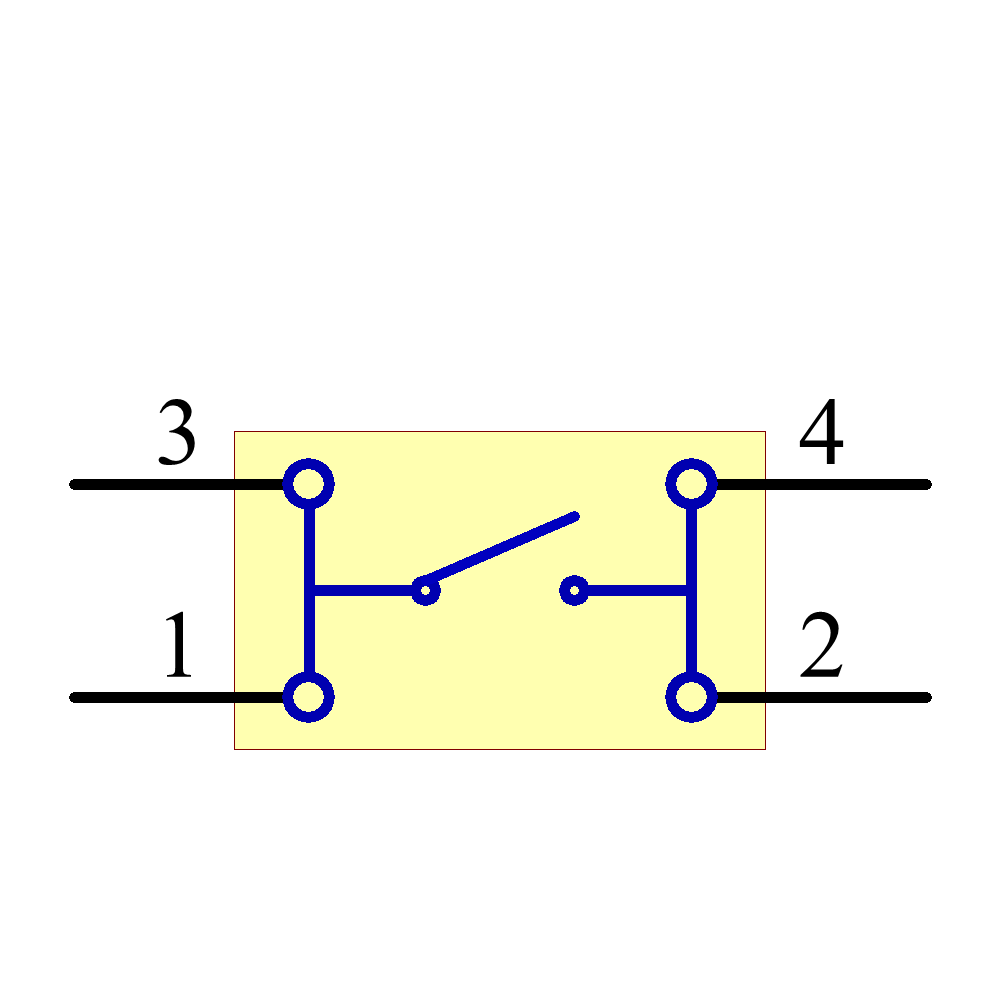

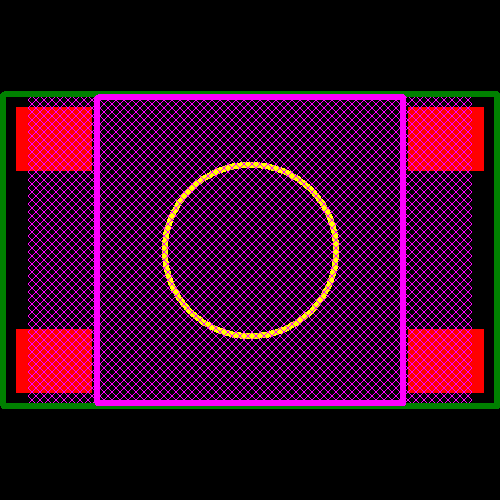

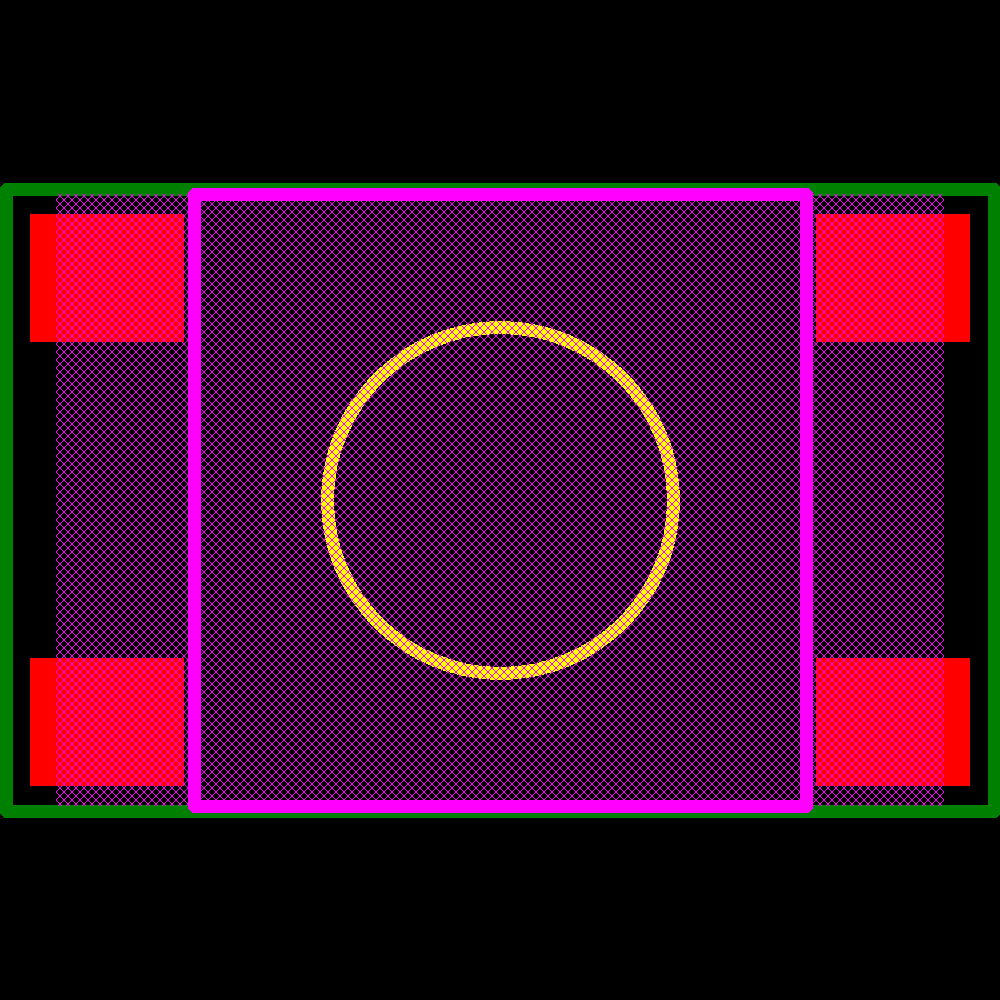

Images
element14 APAC
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Wurth Elektronik | Unknown | ||
| Wurth Elektronik | Unknown | ||
| E-Switch | Production | ||
| E-Switch | Production | ||
| C&K Components | Unknown | ||
| Multicomp | Production | ||
| APEM | Production | ||
| E-Switch | Production | ||
| Rafi | NRND | ||
| E-Switch | Production |
