Electromechanical > Switches > Tactile Switches

430451031836 - Wurth Elektronik

Tactile Switch, 0.05A, 12Vdc, 360Gf, Smd Rohs Compliant: Yes |Wurth Elektronik 430451031836

Technical Details

Actuator Material	Liquid Crystal Polymer, Polymer
Contact Plating	Silver
Current Rating	50mA
Height	3.1mm
Illumination Type	Non-Illuminated
Insulation Resistance	100MΩ
Max Operating Temperature	85°C
Mechanical Life	200kcycles
Min Operating Temperature	-40°C
Packaging	Tape and Reel
RoHS	Compliant
Switch Function	Off-Mom
Switch Travel	250µm
Termination	SMD/SMT
Throw Configuration	SPST
Voltage Rating	12V

Compliance

RoHS : Unconfirmed

Images

Datasheets

Lifecycle Status Indicator

Unknown

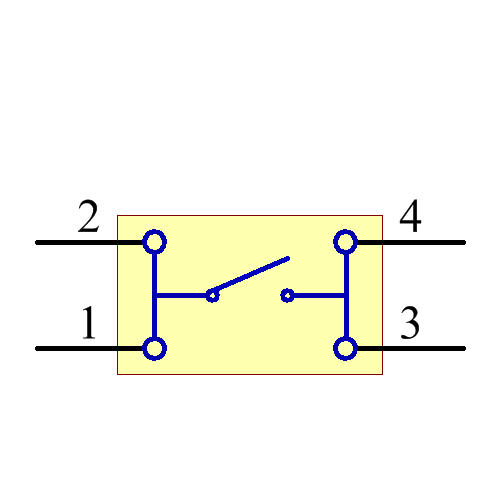

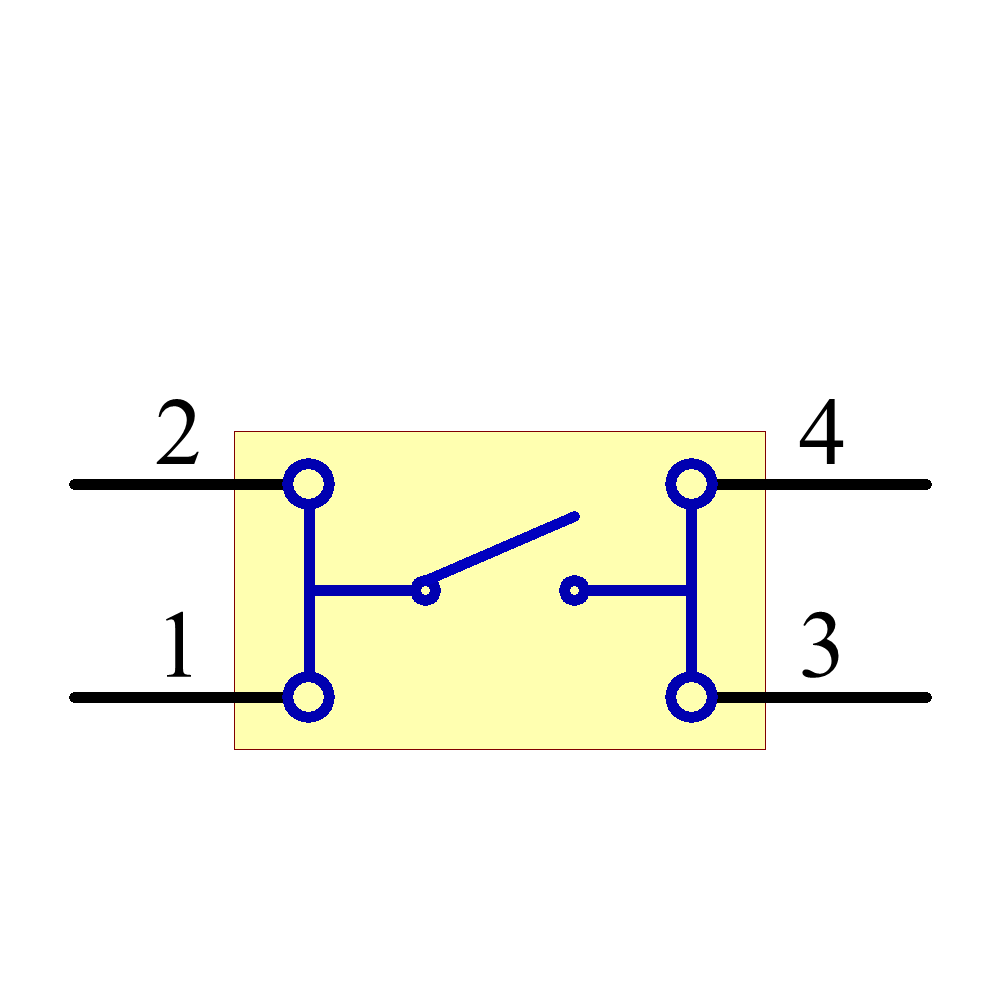

Symbol

430451031836 Symbol - Wurth Elektronik

430451031836 Symbol - Wurth Elektronik

430451031836 Symbol - Wurth Elektronik

430451031836 Symbol - Wurth Elektronik

‹ ›

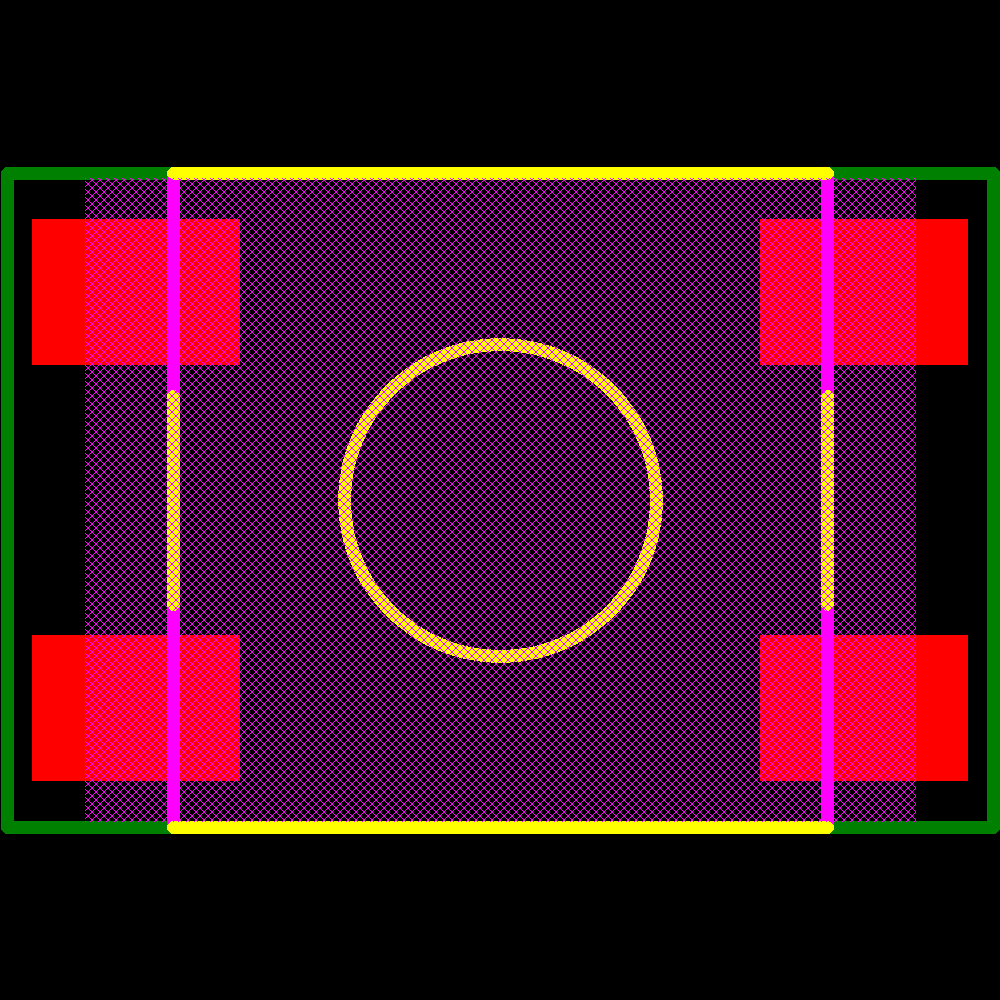

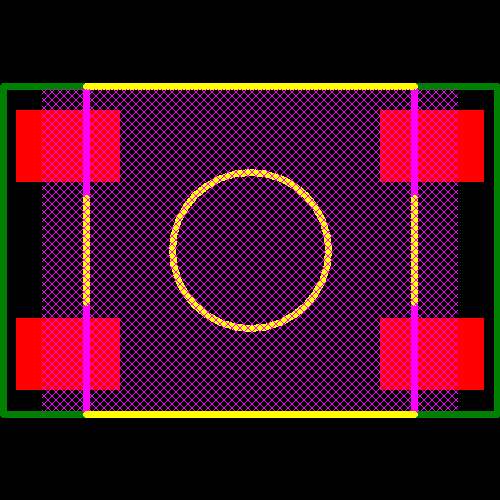

Footprint

430451031836 Footprint - Wurth Elektronik

430451031836 Footprint - Wurth Elektronik

430451031836 Footprint - Wurth Elektronik

430451031836 Footprint - Wurth Elektronik

‹ ›

Alternatives (Possible Substitutes)

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator	Confidence
Multicomp	MC32885	Production
Multicomp	MC32883	Unknown
Wurth Elektronik	430473031826	Unknown
Wurth Elektronik	430471031826	Unknown
Wurth Elektronik	430453031836	Unknown
Wurth Elektronik	430481031816	Unknown
Wurth Elektronik	430483031816	Unknown
E-Switch	TL3200AF160NNQ	Production
E-Switch	TL3200AF160BWQ	Production
C&K Components	KT11-B2-JM-3-4LFS	Unknown

See more alternatives See less alternatives

Authorized Distributors

Distributor

SKU

Stock

USD

1

10

50

100

1000

10000

Buy

Farnell

DE: 192

$

0.4043

0.3957

0.3883

0.3797

0.3797

RS

DE: 521

$

0.4043

0.4043

0.4043

0.4043

0.4043

RS

DE: 521

$

0.4043

0.4043

0.4043

0.4043

0.4043

RS

DE: 521

$

0.2798

RS

DE: 40

$

0.413

0.413

0.413

0.413

0.413

0.413

RS

DE: 0

$

0.413

0.413

0.413

0.413

0.413

0.413

DigiKey

DE: 1003

$

0.3945

0.3945

0.3945

0.3945

0.3283

0.3283

DigiKey

DE: 1003

$

0.3945

0.3945

0.3945

0.3945

0.3283

0.3283

DigiKey

DE: 0

$

0.2457

Mouser

710-430451031836

US: 642

$

0.38

0.373

0.373

0.373

0.311

0.258

Newark

US: 192

$

0.416

0.391

0.379

0.354

0.301

element14 APAC

SG: 192

$

0.4075

0.3984

0.3893

0.3741

0.3741

Non-Authorized Distributors

Distributor

SKU

Stock

USD

1

10

50

100

1000

10000

Buy

UnikeyIC

SG: 521

$

0.3267

Bettlink

HK: 953

$

0.3287

0.2435

0.2435

0.2117

0.1978

0.1778

Fly-Wing Technology

HK: 950

$

0.2953

0.2786

0.2786

0.2629

0.2339

0.2339
