Electromechanical > Switches > Tactile Switches

430453025836 - Wurth Elektronik

Switch Tactile N.O. SPST Round Button J-Bend 0.05A 12VDC 200000Cycles 3.53N SMD Reel

Technical Details

Actuator Material	Liquid Crystal Polymer, Polymer
Contact Plating	Silver
Current Rating	50mA
Height	2.5mm
Illumination Type	Non-Illuminated
Insulation Resistance	100MΩ
Max Operating Temperature	85°C
Mechanical Life	200kcycles
Min Operating Temperature	-40°C
Packaging	Tape and Reel
RoHS	Compliant
Switch Function	Off-Mom
Switch Travel	250µm
Throw Configuration	SPST
Voltage Rating	12V

Compliance

RoHS : Unconfirmed

Images

Wurth Elektronik 430453025836 | RS

RS

Datasheets

Lifecycle Status Indicator

Unknown

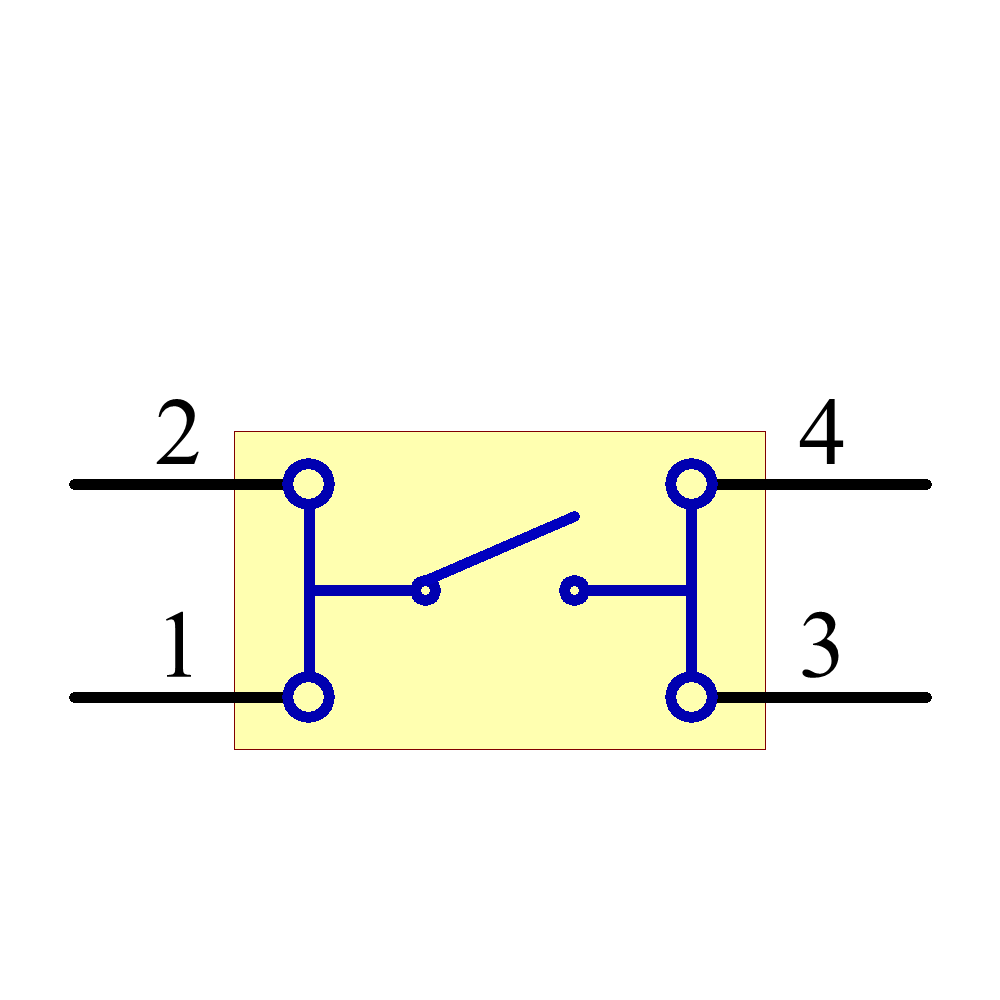

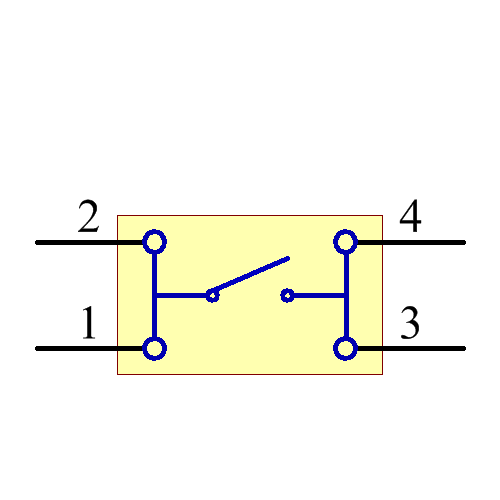

Symbol

430453025836 Symbol - Wurth Elektronik

430453025836 Symbol - Wurth Elektronik

430453025836 Symbol - Wurth Elektronik

430453025836 Symbol - Wurth Elektronik

‹ ›

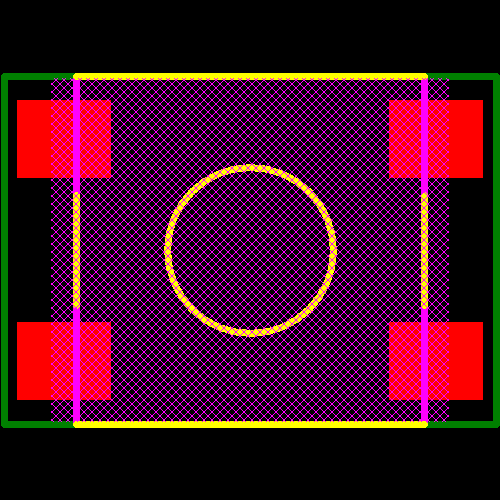

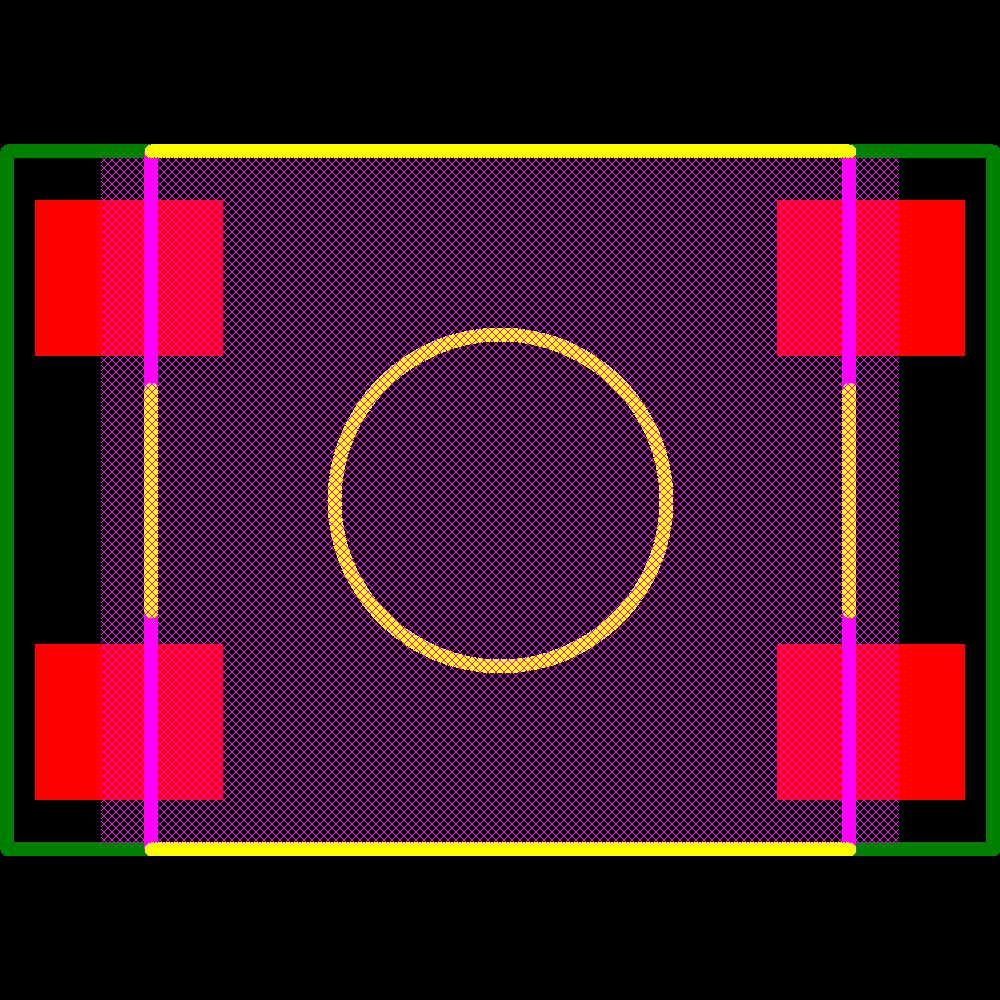

Footprint

430453025836 Footprint - Wurth Elektronik

430453025836 Footprint - Wurth Elektronik

430453025836 Footprint - Wurth Elektronik

430453025836 Footprint - Wurth Elektronik

‹ ›

Alternatives (Possible Substitutes)

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator	Confidence
Wurth Elektronik	430471025826	Unknown
Wurth Elektronik	430473025826	Unknown
Wurth Elektronik	430481025816	Unknown
Wurth Elektronik	430483025816	Unknown
Multicomp	DTSGL-61K-B	Production
Multicomp	DTSL-61R-B	Production
Wurth Elektronik	430451025836	Unknown
E-Switch	TL3200AF160NNQ	Production
E-Switch	TL3200AF160BWQ	Production
C&K Components	KT11-B2-JM-3-4LFS	Unknown

See more alternatives See less alternatives

Authorized Distributors

Distributor

SKU

Stock

USD

1

10

50

100

1000

10000

Buy

Farnell

DE: 2

$

0.2959

0.2589

0.2145

0.1923

0.1923

RS

DE: 710

$

0.5843

0.5843

0.5843

0.5843

0.5843

RS

DE: 710

$

0.5843

0.5843

0.5843

0.5843

0.5843

RS

DE: 710

$

0.2811

DigiKey

DE: 10728

$

0.5547

0.5547

0.515

0.5547

0.3705

0.3705

DigiKey

DE: 10728

$

0.5547

0.5547

0.515

0.5547

0.3705

0.3705

DigiKey

DE: 8000

$

0.304

Mouser

710-430453025836

US: 15079

$

0.53

0.526

0.488

0.444

0.351

0.281

Newark

US: 2

$

0.566

0.528

0.484

0.391

0.321

element14 APAC

SG: 2

$

0.5039

0.4894

0.475

0.4561

0.4561

Non-Authorized Distributors

Distributor

SKU

Stock

USD

1

10

50

100

1000

10000

Buy

Win Source

2000303-430453025836

CN: 2000

$

0.6537

0.4354

0.4354

UnikeyIC

SG: 720

$

0.2828

Bettlink

HK: 9914

$

0.4066

0.3012

0.3012

0.2619

0.2448

0.2199

Fly-Wing Technology

HK: 1767

$

0.5377

0.4408

0.4408

0.4275

0.40

0.40

Abacus Technologies

US: 0

$
