Technical Details
| Actuator Length | 3.8mm |
| Actuator Material | Liquid Crystal Polymer, Polymer |
| Color | White |
| Contact Current Rating | 50mA |
| Contact Material | Silver, Stainless Steel, Steel |
| Contact Plating | Silver |
| Contact Resistance | 100mΩ |
| Current Rating | 50mA |
| Height | 7.3mm |
| Illumination Type | Illuminated, Non-Illuminated |
| Insulation Resistance | 100MΩ |
| Length | 12mm |
| Life (Cycles) | 300kcycles |
| Max Operating Temperature | 85°C |
| Mechanical Life | 300kcycles |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Packaging | Bulk |
| REACH SVHC | No |
| RoHS | Compliant |
| Switch Function | Off-Mom |
| Switch Travel | 300µm |
| Termination | PC Pin |
| Throw Configuration | SPST |
| Voltage Rating | 12V |
| Voltage Rating (DC) | 12V |
| Width | 12.5mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : No

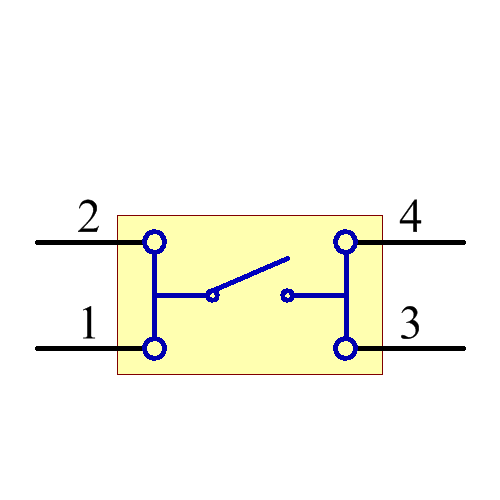

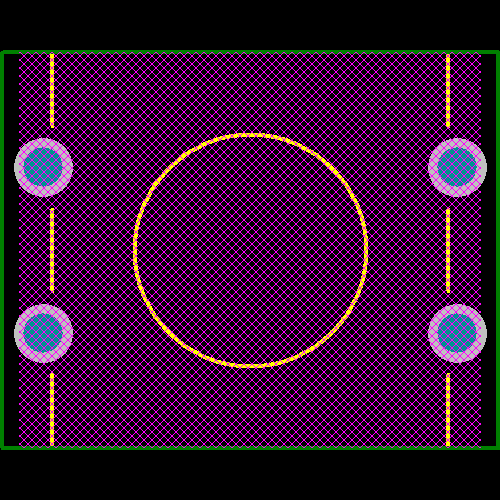

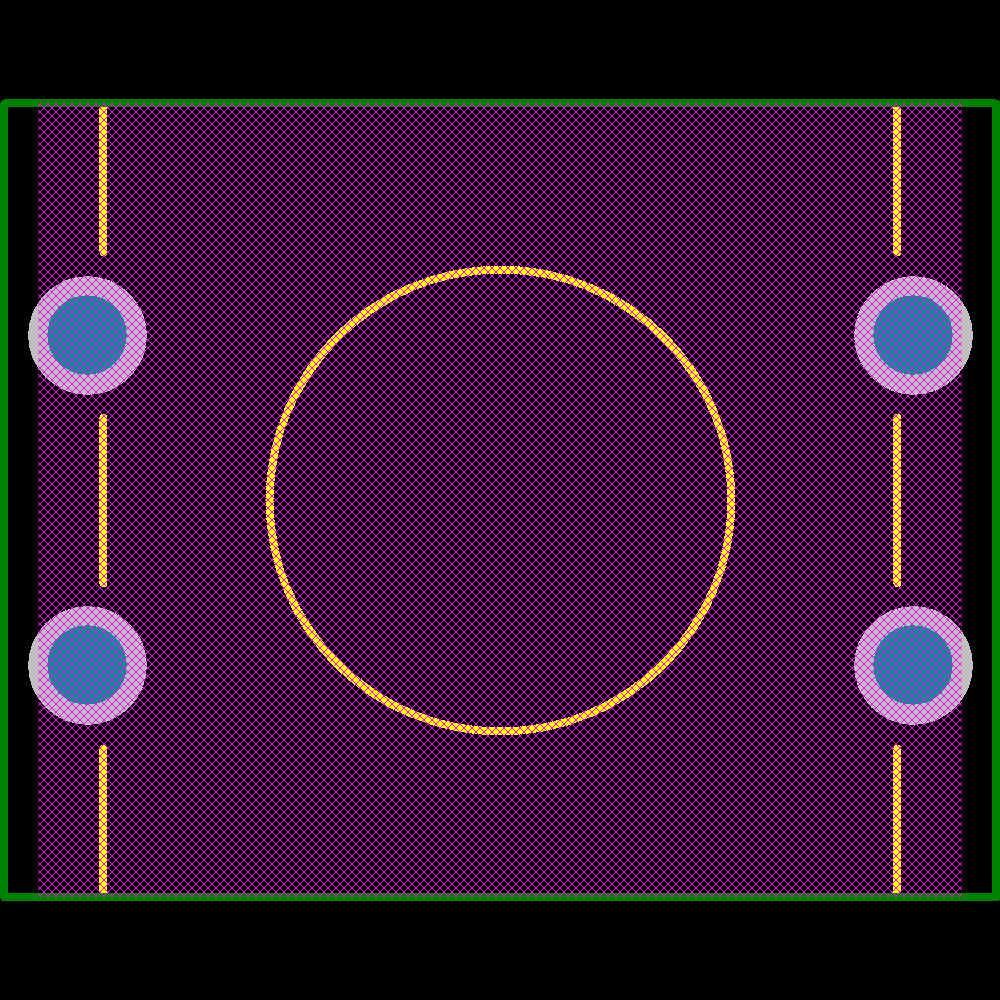

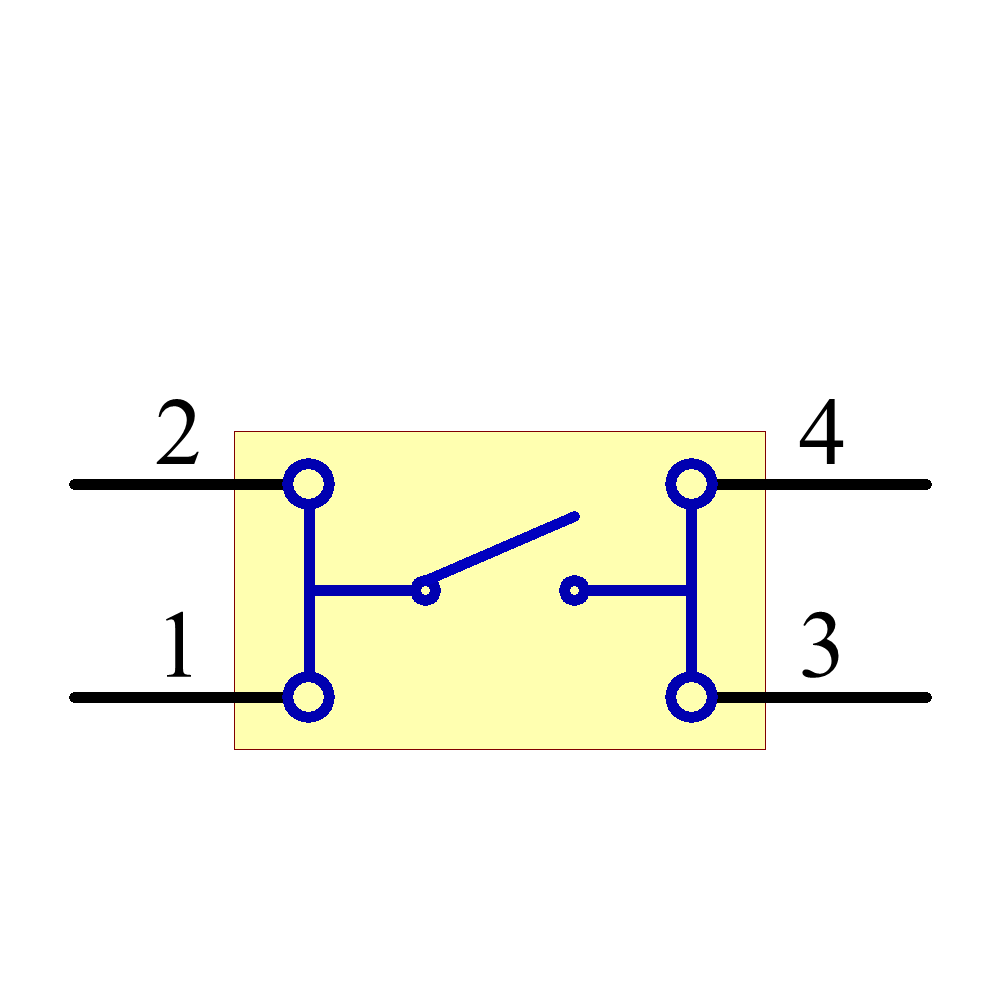

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Knitter Switch | Unknown | ||
| Knitter Switch | Unknown | ||
| Knitter Switch | Unknown | ||
| Knitter Switch | Unknown | ||
| Diptronics | Production | ||
| Wurth Elektronik | Unknown | ||
| Knitter Switch | Unknown | ||
| Knitter Switch | Unknown | ||
| Knitter Switch | Unknown | ||
| Knitter Switch | Unknown |
