Electromechanical > Switches > Tactile Switches

430481035816 - Wurth Elektronik

Tactile Switch, 0.05A, 12Vdc, 160Gf, Smd Rohs Compliant: Yes |Wurth Elektronik 430481035816

Technical Details

Actuator Material	Liquid Crystal Polymer, Polymer
Contact Plating	Silver
Current Rating	50mA
Height	3.5mm
Illumination Type	Non-Illuminated
Insulation Resistance	100MΩ
Max Operating Temperature	85°C
Mechanical Life	1Mcycles
Min Operating Temperature	-40°C
Packaging	Tape and Reel
RoHS	Compliant
Switch Function	Off-Mom
Switch Travel	250µm
Termination	SMD/SMT
Throw Configuration	SPST
Voltage Rating	12V

Compliance

RoHS : Unconfirmed

Images

Datasheets

Lifecycle Status Indicator

Unknown

Symbol

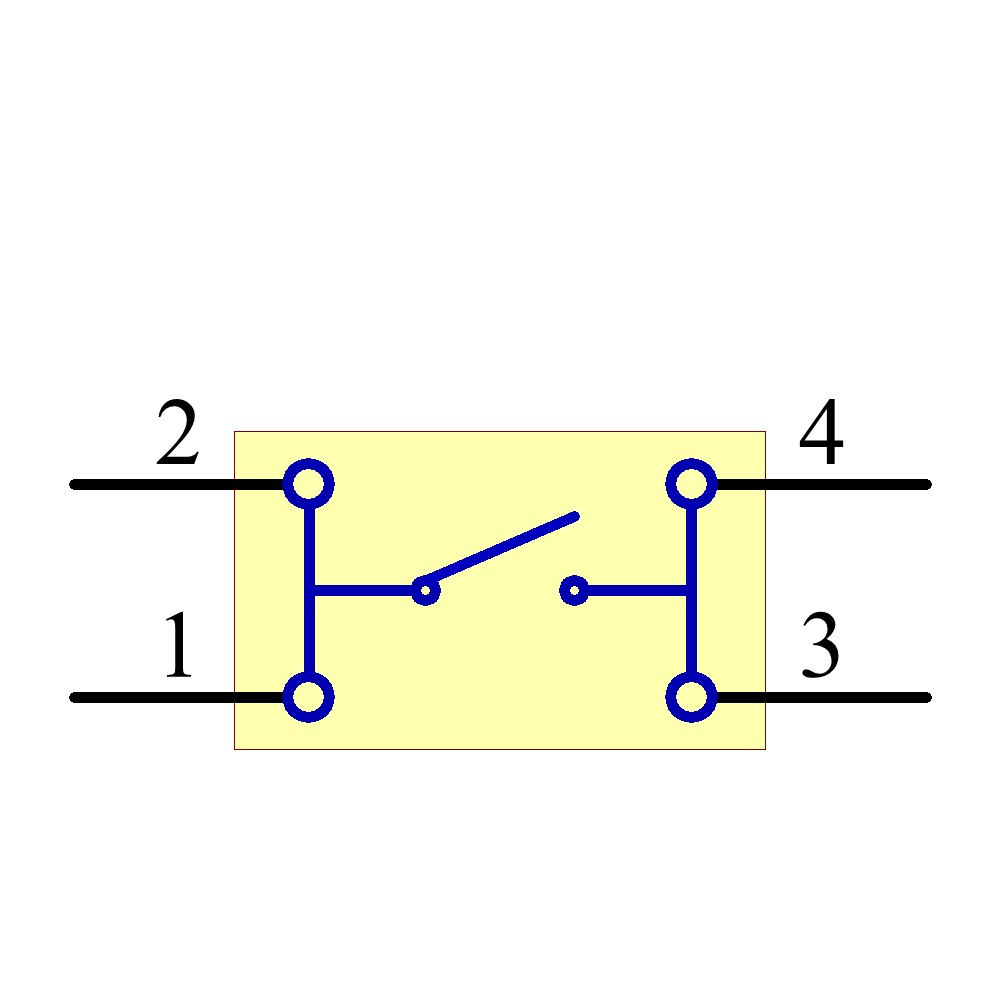

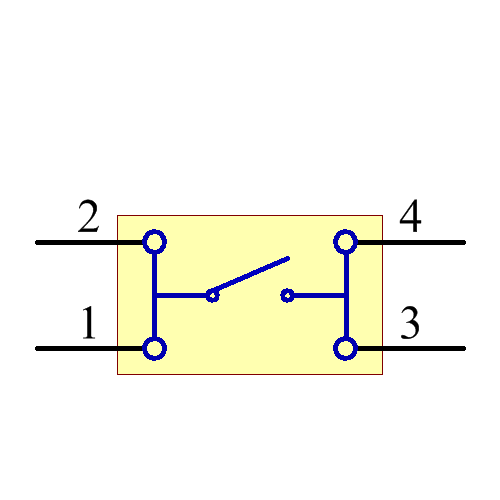

430481035816 Symbol - Wurth Elektronik

430481035816 Symbol - Wurth Elektronik

430481035816 Symbol - Wurth Elektronik

430481035816 Symbol - Wurth Elektronik

‹ ›

Footprint

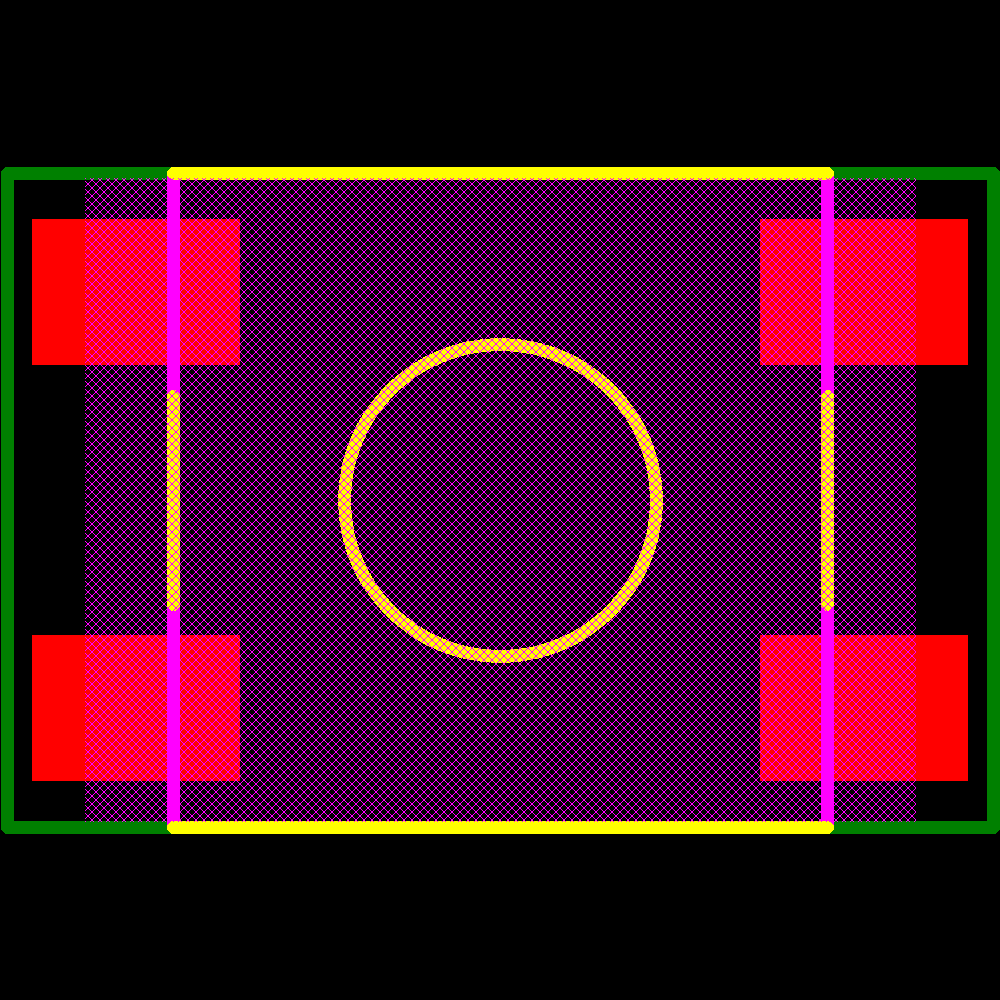

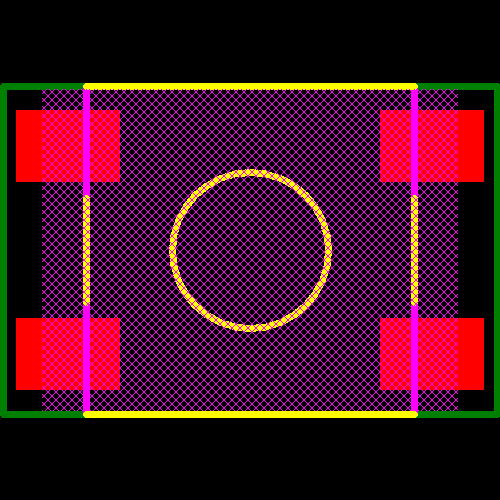

430481035816 Footprint - Wurth Elektronik

430481035816 Footprint - Wurth Elektronik

430481035816 Footprint - Wurth Elektronik

430481035816 Footprint - Wurth Elektronik

‹ ›

Alternatives (Possible Substitutes)

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator	Confidence
Wurth Elektronik	434121050816	Unknown
Multicomp	DTSM-32S-B	Production
Wurth Elektronik	434111050826	Unknown
Wurth Elektronik	434121050836	Unknown
Wurth Elektronik	430453035836	Unknown
Wurth Elektronik	430483035816	Unknown
Wurth Elektronik	430451035836	Unknown
Wurth Elektronik	430473035826	Unknown
Wurth Elektronik	430471035826	Unknown
APEM	ADTSM62RVTR	Production

See more alternatives See less alternatives

Authorized Distributors

Distributor

SKU

Stock

USD

1

10

50

100

1000

10000

Buy

RS

DE: 780

$

0.6114

0.5819

0.5547

0.503

0.503

RS

DE: 780

$

0.5819

0.5547

0.503

0.503

RS

DE: 780

$

0.3637

Mouser

710-430481035816

US: 1227

$

0.57

0.565

0.522

0.476

0.375

0.336

DigiKey

DE: 0

$

0.604

0.604

0.551

0.604

0.3958

0.3958

DigiKey

DE: 0

$

0.604

0.604

0.551

0.604

0.3958

0.3958

DigiKey

DE: 0

$

0.3263

Farnell

DE: 0

$

0.662

0.6114

0.5572

0.5461

0.5461

Non-Authorized Distributors

Distributor

SKU

Stock

USD

1

10

50

100

1000

10000

Buy

UnikeyIC

SG: 780

$

0.3056

Quest

US: 8

$

0.75

0.625

0.625

0.625

0.625

0.625

Fly-Wing Technology

HK: 2129

$

Sourcengine

US: 1949

$

Abacus Technologies

US: 0

$
