Technical Details
| Actuator Material | Liquid Crystal Polymer, Polymer |
| Contact Plating | Silver |
| Current Rating | 50mA |
| Height | 4.3mm |
| Illumination Type | Non-Illuminated |
| Insulation Resistance | 100MΩ |
| Max Operating Temperature | 85°C |
| Mechanical Life | 50kcycles |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Packaging | Tape and Reel |
| RoHS | Compliant |
| Switch Function | Off-Mom |
| Switch Travel | 250µm |
| Throw Configuration | SPST |
| Voltage Rating | 12V |
Compliance
RoHS : Unconfirmed

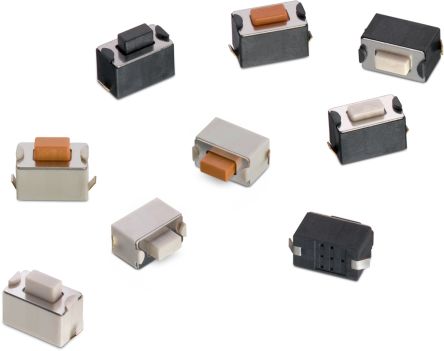

Images
RS
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Wurth Elektronik | Unknown | ||
| APEM | Production | ||
| Knitter Switch | Unknown | ||
| Knitter Switch | Unknown | ||
| Knitter Switch | Unknown | ||
| E-Switch | Production | ||
| E-Switch | Production | ||
| Knitter Switch | Unknown | ||
| Knitter Switch | Unknown | ||
| Knitter Switch | Unknown |
Authorized Distributors
Non-Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| UnikeyIC |
SG: 1220
|
$ | 0.5651 | 0.5319 | 0.5119 | 0.4344 | 0.4344 | |||
| Bettlink |
HK: 724
|
$ | 0.4794 | 0.3551 | 0.3551 | 0.3088 | 0.2886 | 0.2593 | ||
