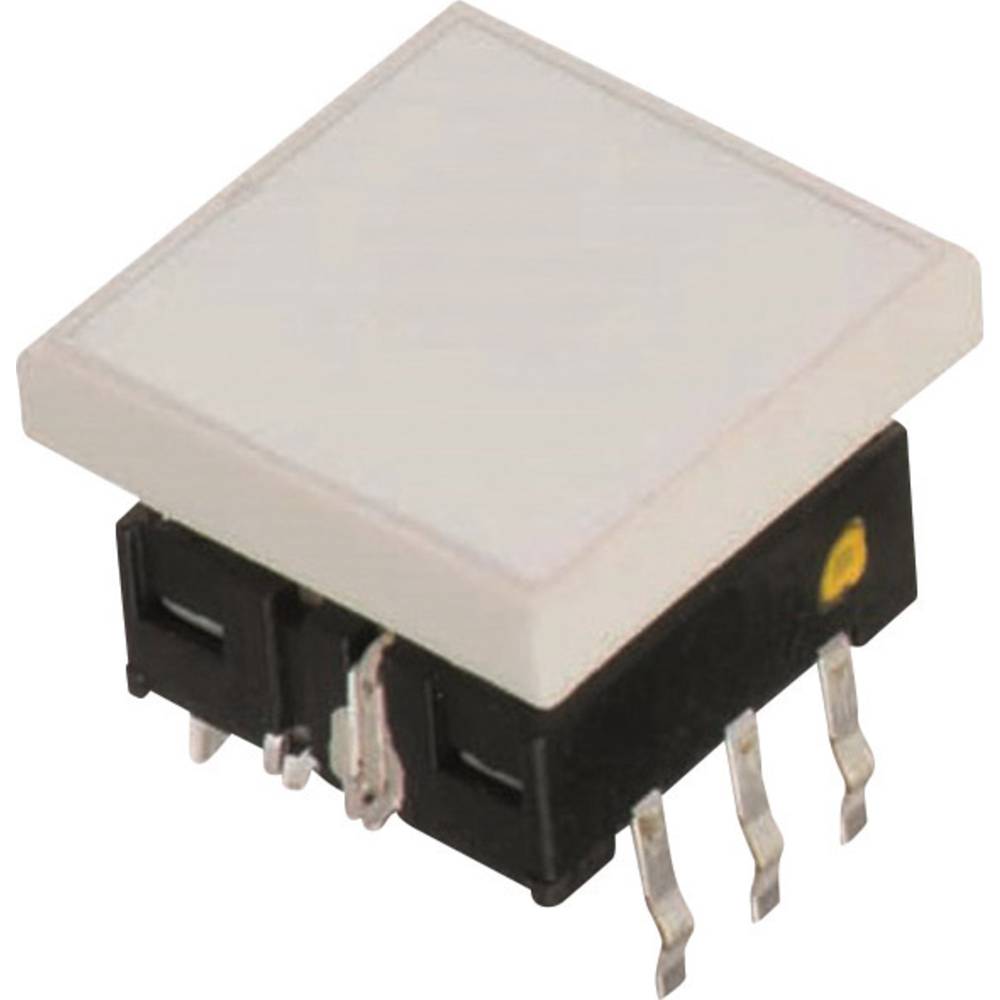

440GS67082622 - Wurth Elektronik
Square Button WS-TATL White Through Hole Tactile Switch 8.20mm 50mA 3.2VDC 0.05A @ 12VDC
Technical Details
| Actuator Length | 4.15mm |
| Actuator Material | Nylon, Polyamide |
| Color | White |
| Contact Current Rating | 50mA |
| Contact Material | Stainless Steel, Steel |
| Contact Plating | Silver |
| Contact Resistance | 100mΩ |
| Current Rating | 50mA |
| Dominant Wavelength | 525nm |
| Forward Voltage | 3.2V |
| Height | 8.2mm |
| Illumination Type | Illuminated, LED |
| Insulation Resistance | 100MΩ |
| Length | 12mm |
| Life (Cycles) | 100kcycles |
| Luminous Intensity | 150mcd |
| Material | PC, Polycarbonate |
| Max Operating Temperature | 85°C |
| Max Reverse Voltage (DC) | 5V |
| Mechanical Life | 100kcycles |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Peak Reverse Current | 10µA |
| Peak Wavelength | 520nm |
| REACH SVHC | No |
| RoHS | Compliant |
| Switch Function | Off-Mom |
| Switch Travel | 300µm |
| Termination | PC Pin |
| Throw Configuration | SPST |
| Viewing Angle | 145° |
| Voltage Rating | 12V |
| Voltage Rating (DC) | 12V |
| Width | 12mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : No
