61000821821 - Wurth Elektronik

WR-PHD 2.54 mm Dual SMT Socket Header

Technical Details

Contact Plating	Gold
Contact Resistance	20mΩ
Current Rating	3A
Gender	Female
Insulation Resistance	1GΩ
Lead Pitch	2.54mm
Length	7.62mm
Max Operating Temperature	105°C
Min Operating Temperature	-40°C
Number of Pins	8
Operating Supply Voltage	250V
Orientation	Vertical
Pitch	2.54mm

Compliance

RoHS : Unconfirmed

Images

Datasheets

Farnell

Lifecycle Status Indicator

Unknown

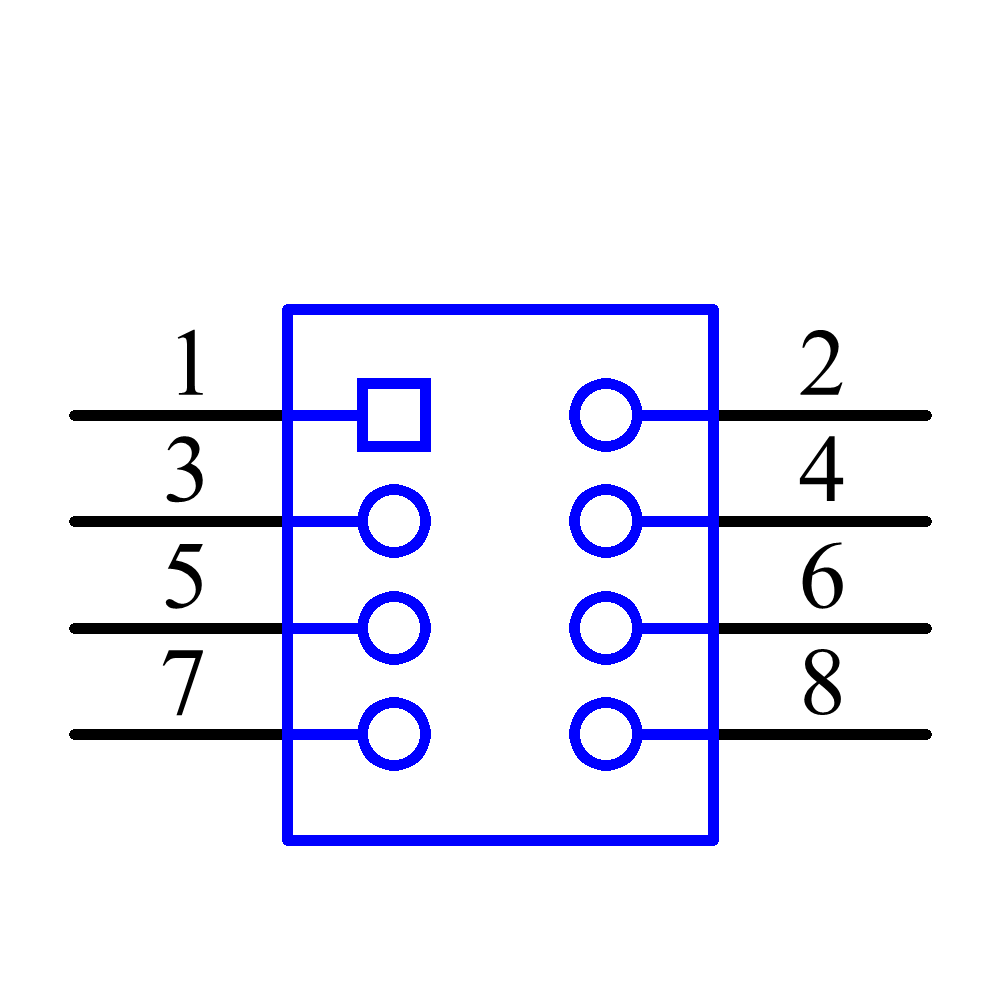

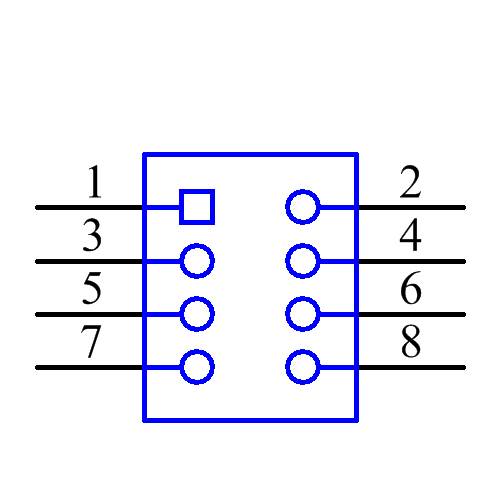

Symbol

‹ ›

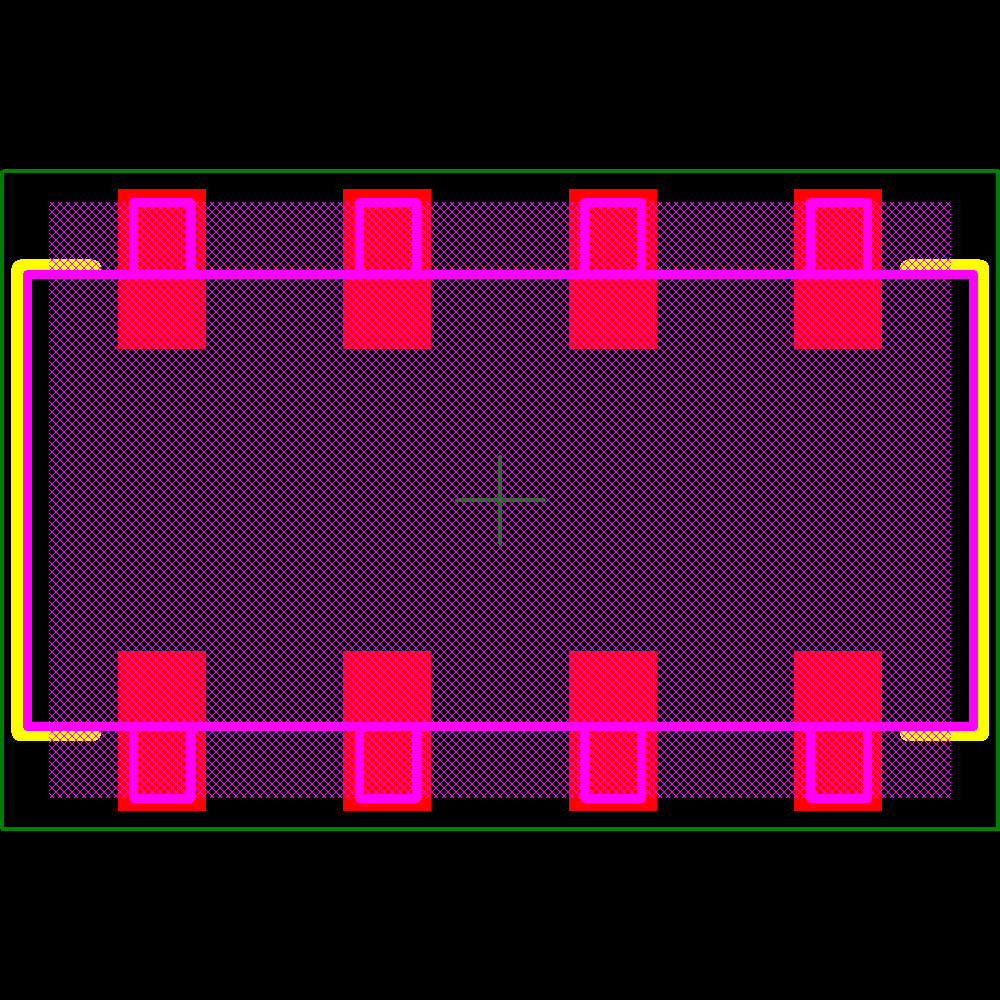

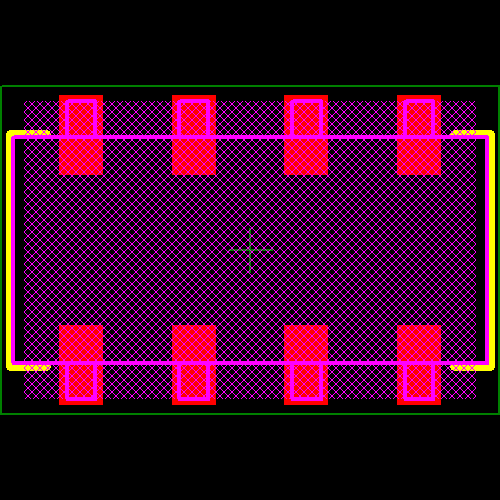

Footprint

‹ ›

Alternatives (Possible Substitutes)

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator
Samtec	SSQ-104-23-S-D-RA	Production
Samtec	ESQ-104-69-S-D	Production
Samtec	SSQ-104-04-S-Q	Production
Samtec	SSQ-104-01-S-D-LL	Production
Samtec	ESW-104-44-S-D	Production
Samtec	SSW-104-06-T-Q	Unknown
Samtec	SSM-104-L-DV-P-TR	Production
Samtec	SSQ-104-02-G-D-LL	Production
Samtec	ESW-104-69-S-D	Production
Samtec	ESQ-104-59-S-D	Production

See more alternatives See less alternatives

Authorized Distributors

Distributor

SKU

Stock

USD

100

1000

10000

Buy

Farnell

2827868

DE: 119

2.8969

2.4408

2.0833

1.7012

2339257

DE: 53

2.86

2339256

DE: 53

2.2892

2.0994

element14 APAC

2827868

SG: 119

2.7773

2.4283

2.0109

1.935

Newark

61000821821

US: 0

3.03

2.54

2.19

1.98

1.59

1.44
