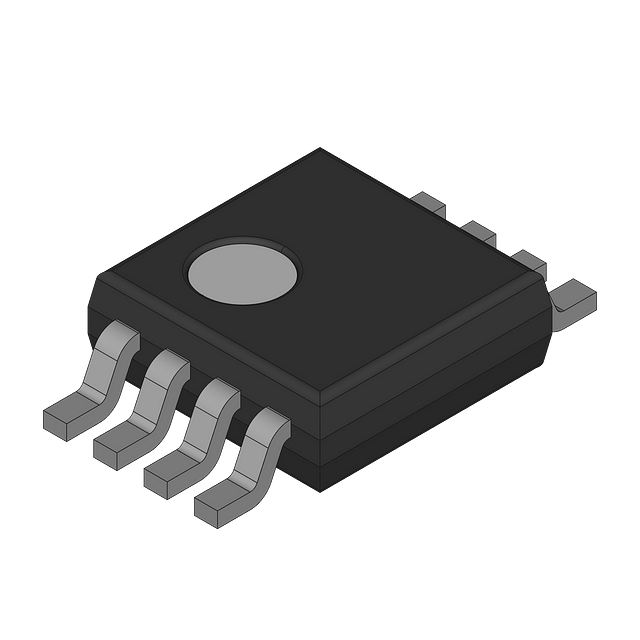

X5043M8I - Xicor
Dual Gull Wing Power Supply Management Circuit Cmos (type) Supervisor 85C 3MM 5V
Technical Details
| Case/Package | MSOP |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Frequency | 3.3MHz |
| Height - Seated (Max) | 1.1mm |
| Harmonized Tariff Schedule (HTS) Code | 8542.39.00.60 |
| Introduction Date | 1999-08-12 |
| Lead Free | Contains Lead |
| Length | 3mm |
| Lifecycle Status | Obsolete |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 500B |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Pins | 8 |
| Number of Terminals | 8 |
| Number of Voltages Monitored | 1 |
| Operating Supply Voltage | 5V |
| Packaging | Bulk |
| REACH SVHC | No |
| Reset | Active Low |
| Reset Timeout | 100ms |
| RoHS | Non-Compliant |
| Temperature Grade | Industrial |
| Terminal Pitch | 650µm |
| Threshold Voltage | 4.38V |
| Type | Simple Reset/Power-On Reset |
| Width | 3mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : No
