VER24US240-JA - XP Power

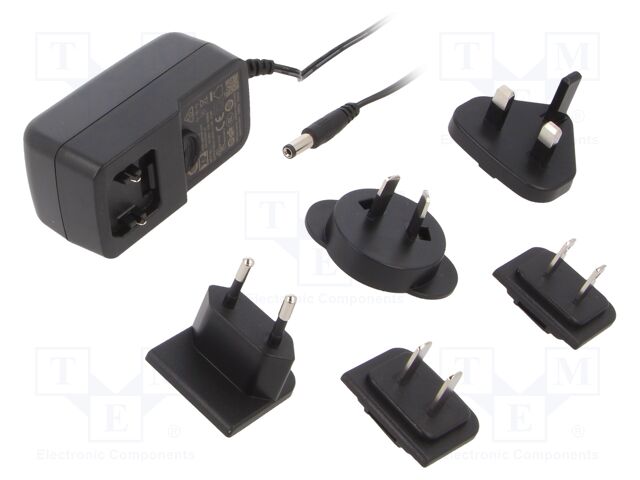

Power Supply Ac-dc Wall Mount Multi Plug 24W 24V@1A 90-264V Input Level VI
Technical Details
| Approvals | CB, CCC, CE, EN, IEC, UL |
| Connector Type | Plug |
| Cord Length | 1.4986m |
| Current - Output 1 | 1A |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Efficiency | 85% |
| Height | 42.672mm |
| Height - Seated (Max) | 42.7mm |
| Introduction Date | 2019-06-13 |
| Length | 90.5mm |
| Lifecycle Status | Production |
| Max Input Voltage | 264V |
| Max Input Voltage (AC) | 264V |
| Max Operating Temperature | 60°C |
| Max Output Current | 1A |
| Max Output Power | 24W |
| Max Output Voltage | 25.2V |
| Max Power Dissipation | 24W |
| Min Input Voltage | 90V |
| Min Input Voltage (AC) | 90V |
| Min Operating Temperature | 0°C |
| Min Output Voltage | 22.8V |
| Nominal Input Voltage | 100V |
| Nominal Output Voltage | 24V |
| Number of Circuits | 1 |
| Number of Outputs | 1 |
| Output Power | 24W |
| Output Voltage | 24V |
| Polarity | Positive |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Voltage - Output 1 | 24V |
| Weight | 80.285849g |
| Width | 43mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes
