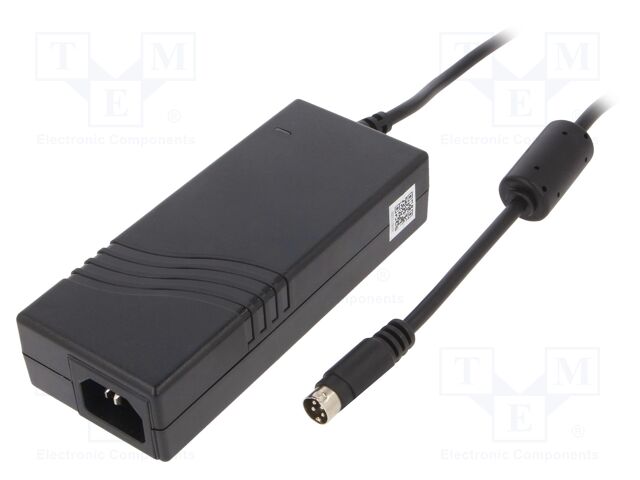

XP POWER VES90PS12 AC/DC Power Supply, Fixed, 1 Output, 90 V, 264 V, 90 W, 12 V
Technical Details
| Approvals | CB, CCC, CE, CSA, TUV, UL |
| Connector Type | Power |
| Cord Length | 1.19888m |
| Current - Output 1 | 7.5A |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Efficiency | 89% |
| Height | 30.988mm |
| Introduction Date | 2021-05-11 |
| Length | 138.938mm |
| Lifecycle Status | Production |
| Max Input Voltage | 264V |
| Max Input Voltage (AC) | 264V |
| Max Operating Temperature | 60°C |
| Max Output Current | 7.5A |
| Max Output Power | 90W |
| Max Output Voltage | 12.24V |
| Max Power Dissipation | 90W |
| Max Switching Frequency | 55kHz |
| Min Input Voltage | 90V |
| Min Input Voltage (AC) | 90V |
| Min Operating Temperature | 0°C |
| Min Output Voltage | 11.76V |
| Nominal Input Voltage | 115V |
| Nominal Output Voltage | 12V |
| Number of Circuits | 1 |
| Number of Outputs | 1 |
| Output Power | 90W |
| Output Voltage | 12V |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Voltage - Output 1 | 12V |
| Weight | 371.945743g |
| Width | 57.912mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes
