AF0603FR-0722KL - Yageo Group
100mW Thick Film Resistors 75V ±100ppm/℃ ±1% 22kΩ 0603 Chip Resistor - Surface Mount ROHS
Technical Details
| Case/Package | 0603 |
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| China RoHS | Non-Compliant |
| Composition | Thick Film |
| Country of Origin | Mainland China, Taiwan |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Features | Anti-Sulfur |
| Height | 450µm |
| Harmonized Tariff Schedule (HTS) Code | 8533.21.00.30 |
| Introduction Date | 2012-05-08 |
| Lead Free | Lead Free |
| Length | 1.6mm |
| Lifecycle Status | Production |
| Max Operating Temperature | 155°C |
| Max Power Dissipation | 100mW |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Terminals | 2 |
| Number of Terminations | 2 |
| Power Dissipation | 100mW |
| Power Rating | 100mW |
| REACH SVHC | Yes |
| Resistance | 22kΩ |
| RoHS | Compliant |
| Schedule B | 8533210045, 8533210045|8533210045|8533210045|8533210045|8533210045 |
| Temperature Coefficient | 100ppm/°C |
| Termination | SMD/SMT |
| Tolerance | 1% |
| Voltage Rating | 75V |
| Width | 800µm |
| Working Voltage | 75V |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

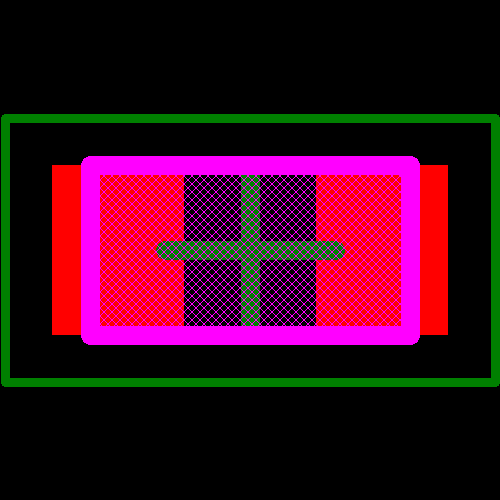

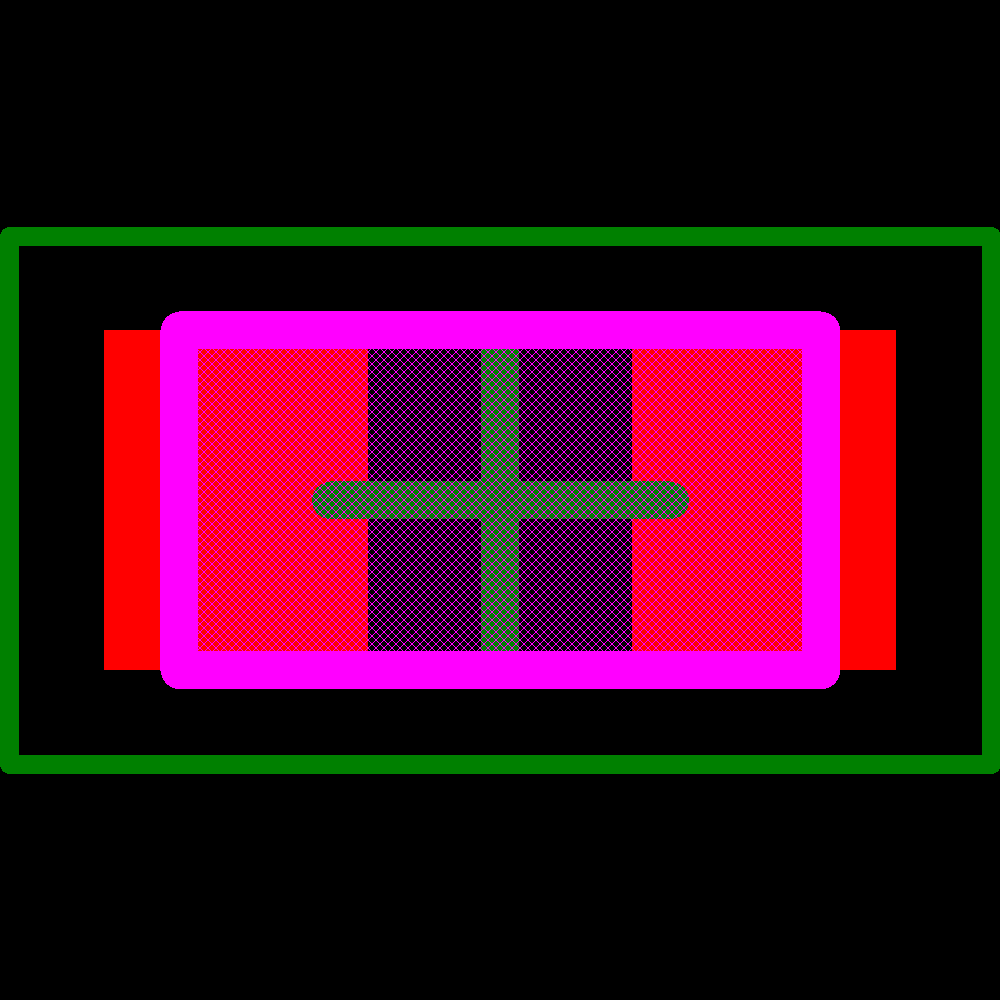

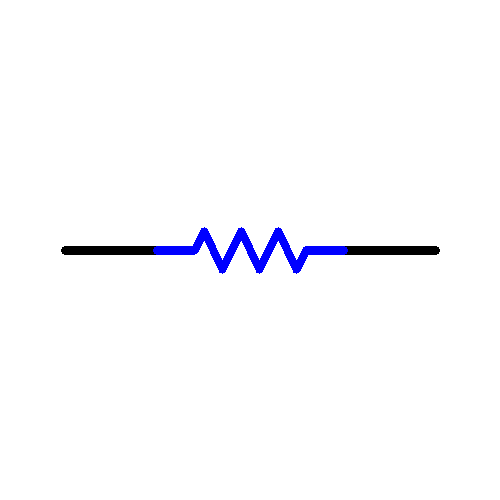

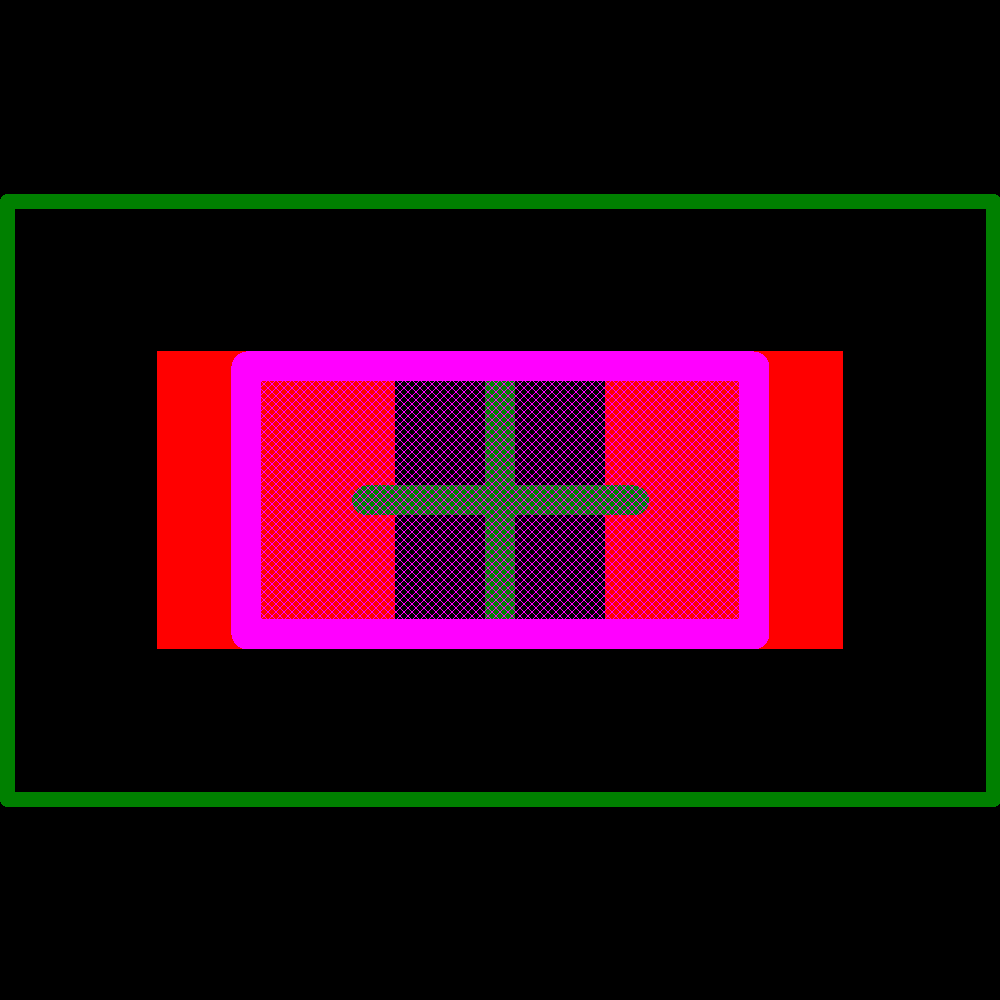

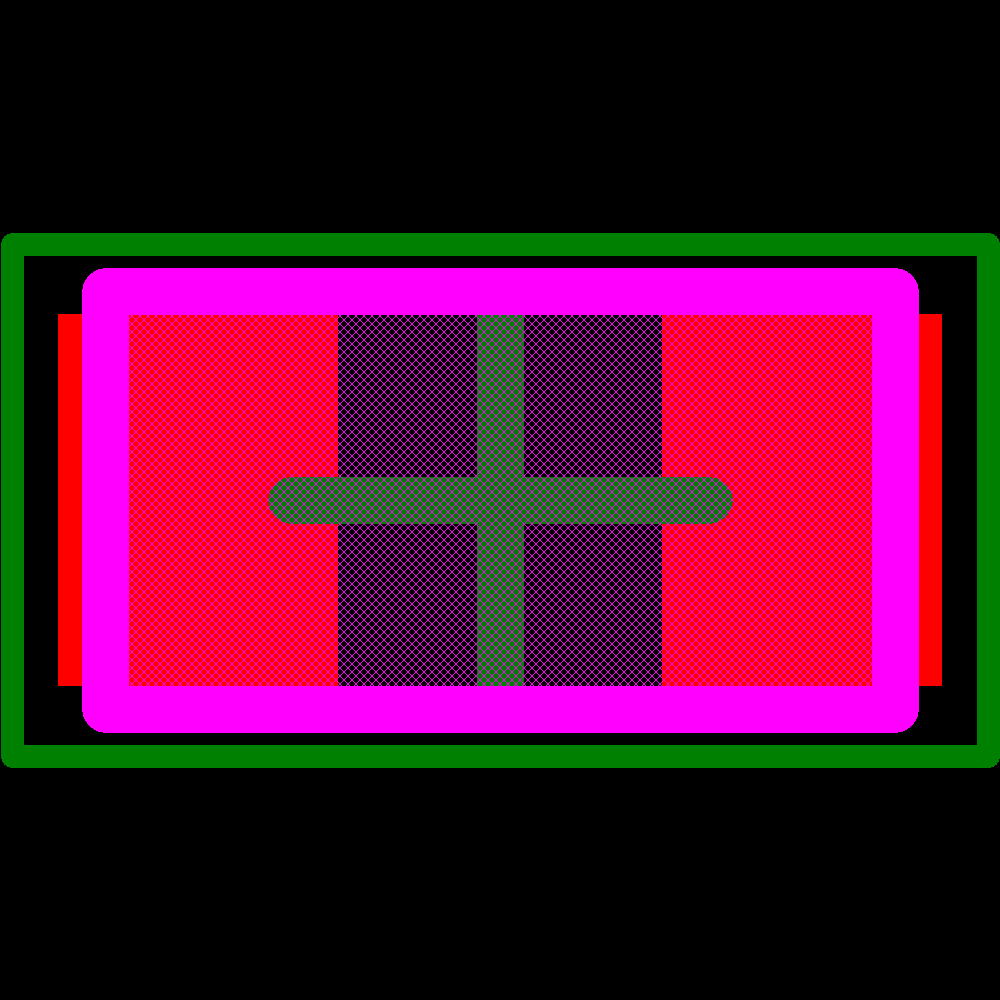

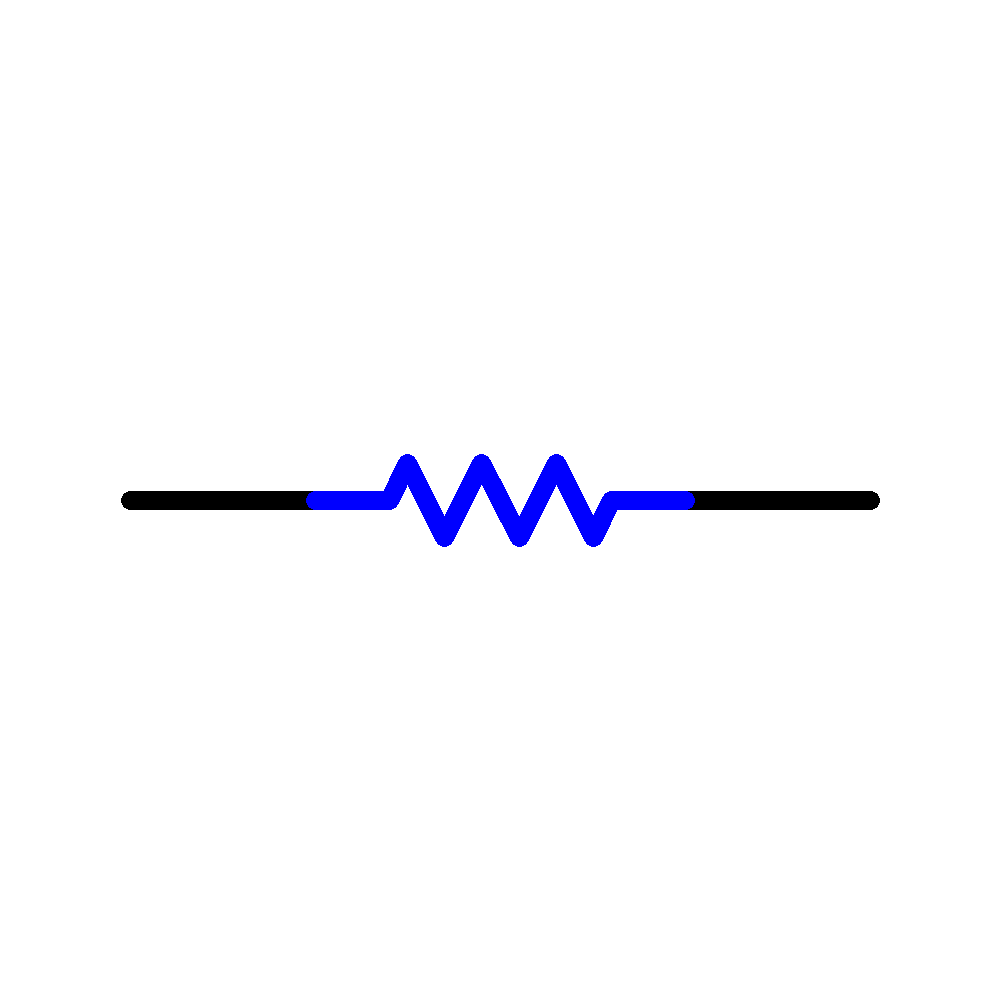

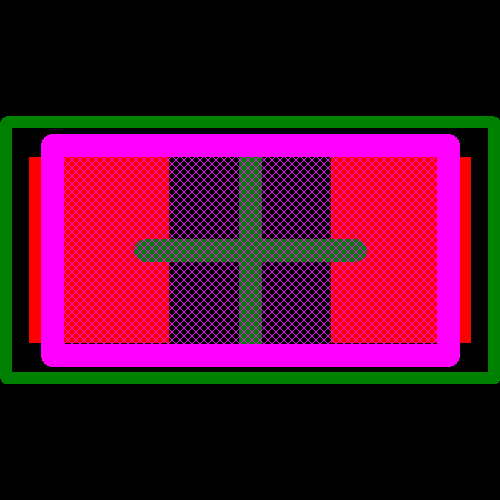

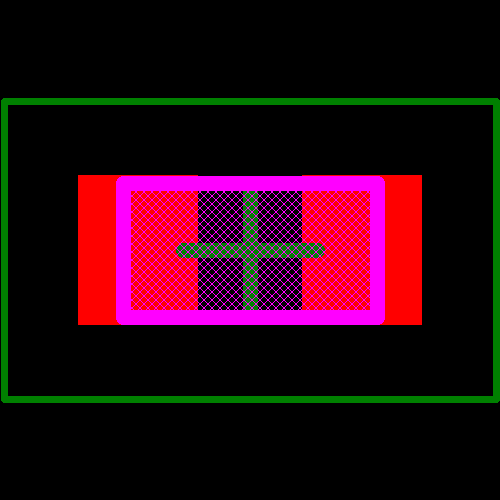

Images
Future Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Vishay | Production | ||
| Vishay | Production | ||
| Multicomp | Production | ||
| Vishay | Production | ||
| Vishay | Production | ||
| Vishay | Obsolete | ||
| Walsin Technologies | Production | ||
| Bourns | Production | ||
| Yageo Group | Production | ||
| Vishay | Production |
