TC164-FR-071KL - Yageo Group
Res Thick Film Array 1KOhm 1% 200ppm/C ISOL Epoxy 8-Pin 1206(4 X 0603) Concave SMD T/R
Technical Details
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| China RoHS | Non-Compliant |
| Circuit Type | Isolated |
| Country of Origin | Mainland China, Taiwan |
| Depth | 1.6mm |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Height | 600µm |
| Harmonized Tariff Schedule (HTS) Code | 8533.21.00.20 |
| Introduction Date | 2008-10-28 |
| Lead Free | Lead Free |
| Length | 1.6mm |
| Lifecycle Status | Production |
| Max Operating Temperature | 155°C |
| Military Standard | Not |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Circuits | 4 |
| Number of Elements | 1 |
| Number of Pins | 8 |
| Number of Resistors | 4 |
| Number of Terminals | 8 |
| Packaging | Cut Tape |
| Power Dissipation | 62.5mW |
| Power Per Element | 62.5mW |
| Power Rating | 63mW |
| REACH SVHC | Yes |
| Resistance | 1kΩ |
| RoHS | Compliant |
| Temperature Coefficient | 200ppm/°C |
| Terminal Pitch | 800µm |
| Termination | Concave |
| Tolerance | 1% |
| Voltage Rating | 50V |
| Voltage Rating (AC) | 50V |
| Voltage Rating (DC) | 50V |
| Width | 3.2mm |
| Working Voltage | 50V |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

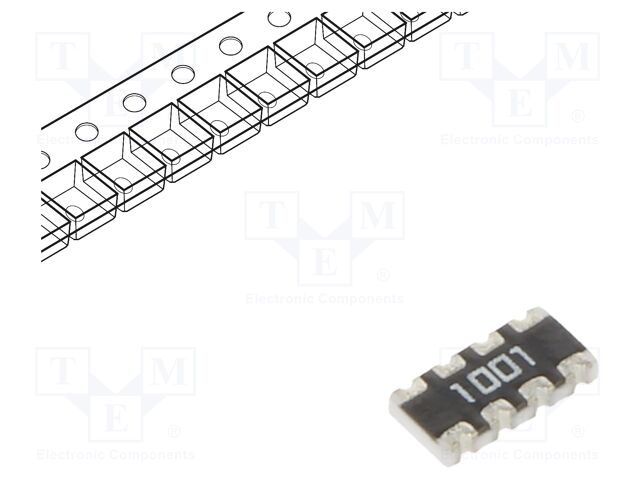

Images
TME
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Yageo Group | Obsolete | ||
| Yageo Group | Obsolete | ||
| NIC Components | Obsolete | ||
| Yageo Group | Production | ||
| Yageo Group | Production | ||
| Yageo Group | Production | ||
| NIC Components | Production | ||
| Samsung Electro-Mechanics | Production | ||
| Yageo / Phycomp | Unknown | ||
| ASJ | Production |
