Yageo Group - TC164-JR-0710KL

TC164-JR-0710KL - Yageo Group

Res Thick Film Array 10K Ohm 5% ±200ppm/C ISOL Epoxy 8-Pin 1206(4 X 0603) Concave SMD T/R

 Datasheets

Technical Details

Case/Package 1206
Case Code (Imperial) 1206
Case Code (Metric) 3216
China RoHS Non-Compliant
Circuit Type Isolated
Composition Thick Film
Country of Origin Mainland China, Taiwan
Depth 1.6mm
Export Control Classification Number (ECCN) Code EAR99
Height 600µm
Harmonized Tariff Schedule (HTS) Code 8533.21.00.20
Introduction Date 2008-10-28
Lead Free Lead Free
Length 1.6mm
Lifecycle Status Production
Max Operating Temperature 155°C
Military Standard Not
Min Operating Temperature -55°C
Mount Surface Mount
Number of Circuits 4
Number of Contacts 8
Number of Elements 1
Number of Pins 8
Number of Resistors 4
Number of Terminals 8
Packaging Cut Tape
Power Dissipation 62.5mW
Power Rating 63mW
Radiation Hardening No
REACH SVHC Yes
Resistance 10kΩ
RoHS Compliant
Temperature Coefficient 200ppm/°C
Terminal Pitch 800µm
Termination Concave
Tolerance 5%
Voltage Rating 50V
Voltage Rating (AC) 50V
Voltage Rating (DC) 50V
Width 3.2mm
Working Voltage 50V

Compliance

   RoHS : Unconfirmed
   Radiation Hardening : No
   REACH SVHC : Yes

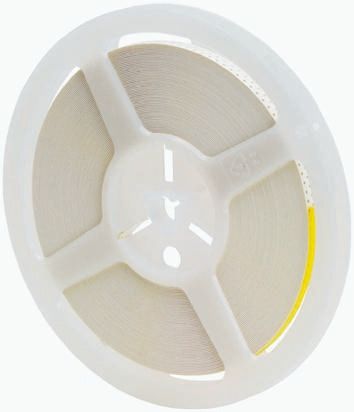

Images

Yageo Group TC164-JR-0710KL | RS

RS

Datasheets

 RS
 RS
 RS

Lifecycle Status Indicator

   Production

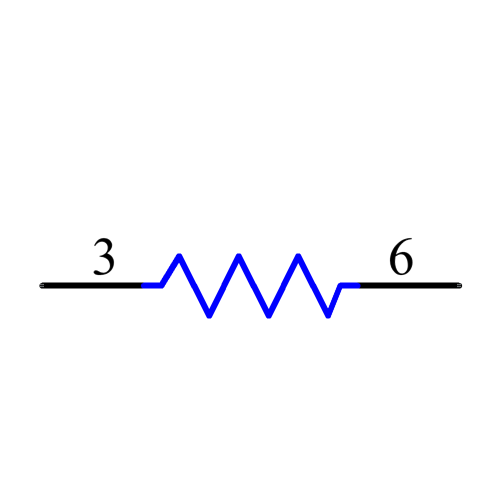

Symbol

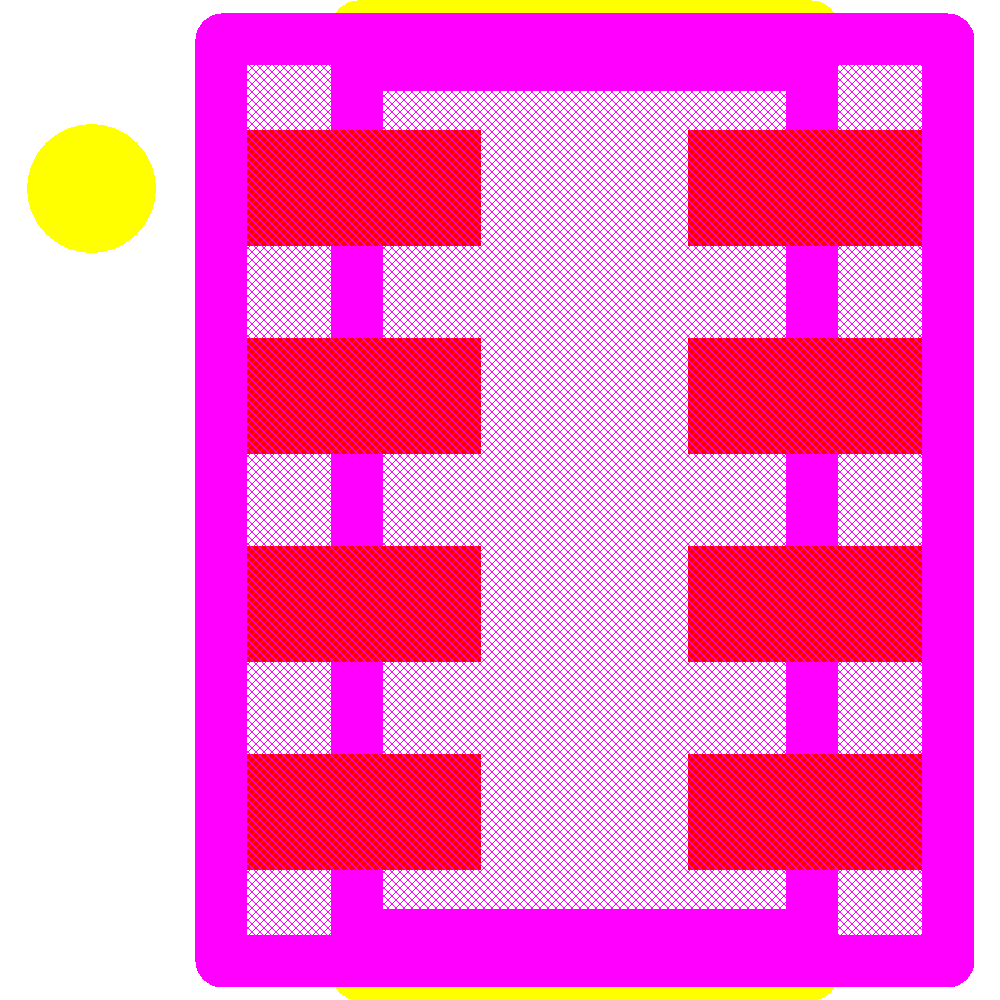

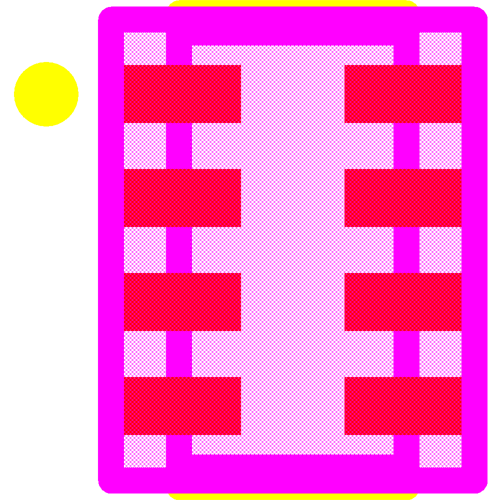

Footprint

Alternatives (Possible Substitutes)

Manufacturer Manufacturer Part No. Lifecycle Status Indicator Confidence
Yageo Group
TC164-JR-0710K
Obsolete
Yageo Group
235003410103L
Production
Yageo Group
TC164-JR-1310KL
Production
Yageo Group
TC164-FR-1310KL
Production
Yageo Group
YC164-JRG0710K
Obsolete
Yageo Group
2350 025 11003
Unknown
Yageo Group
TC164-FR-0710K
Obsolete
Yageo Group
YC164-FR-0710KL
Production
NIC Components
NRSNA6I4J103TR
Obsolete
Yageo Group
AF164-FR-0710KL
Production

See more alternatives See less alternatives
