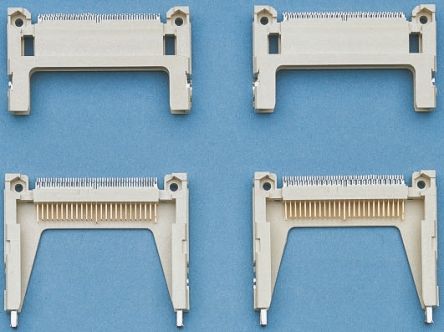

CF050P2-003-00-DS - Yamaichi
Board Connector, 50 Contact(s), 2 Row(s), Male, Right Angle, 0.05 inch Pitch, Surface Mount Terminal, Locking
Technical Details
| Case/Package | SMD/SMT |
| Contact Gender | Male |
| Contact Material | Brass |
| Contact Plating | Gold |
| Current Rating | 500mA |
| Depth | 39.29mm |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Gender | Male |
| Housing Material | Polymer |
| Harmonized Tariff Schedule (HTS) Code | 8536.69.40.40 |
| Insulation Resistance | 1GΩ |
| Introduction Date | 2010-07-14 |
| Length | 47.8mm |
| Lifecycle Status | Production |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Contacts | 50 |
| Number of Pins | 50 |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Pitch | 635µm |
| Plating Thickness | 381nm |
| RoHS | Compliant |
| Terminal Pitch | 635µm |
| Termination | Solder |
| Width | 6.3mm |
Compliance
RoHS : Unconfirmed
