Connectors  >  Card Edge Connectors

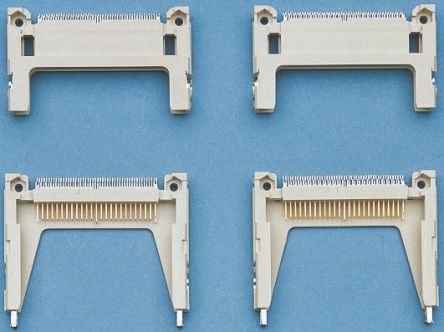

Yamaichi - CF050P2-003-10-DS

CF050P2-003-10-DS - Yamaichi

Board Connector, 50 Contact(s), 2 Row(s), Male, Right Angle, 0.05 inch Pitch, Surface Mount Terminal, Eject Lever

 Datasheets

Technical Details

Case/Package SMD/SMT
Contact Gender Male
Contact Material Brass
Contact Plating Gold
Current Rating 500mA
Depth 51mm
Export Control Classification Number (ECCN) Code EAR99
Gender Male
Housing Material Polymer
Harmonized Tariff Schedule (HTS) Code 8536.69.40.40
Insulation Resistance 1GΩ
Introduction Date 2010-07-14
Length 52.3mm
Lifecycle Status Production
Max Operating Temperature 85°C
Min Operating Temperature -55°C
Mount Surface Mount
Number of Contacts 50
Number of Pins 50
Number of Rows 1
Orientation Right Angle
Pitch 635µm
Plating Thickness 381nm
REACH SVHC Yes
RoHS Compliant
Terminal Pitch 635µm
Termination Solder
Width 7.05mm

Compliance

   RoHS : Unconfirmed
   REACH SVHC : Yes

Images

Yamaichi CF050P2-003-10-DS | RS

RS

Datasheets

 RS
 Sourcengine

Lifecycle Status Indicator

   Production

Authorized Distributors

Distributor SKU Stock USD 1 10 50 100 1000 10000 Buy
RS
4559225
DE: 34
 $ 16.568 16.568 15.7298 14.9285 13.2396 13.2396
 Historical Pricing  Historical Stock Levels
Quantity
Location

Non-Authorized Distributors

Distributor SKU Stock USD 1 10 50 100 1000 10000 Buy
Sourcengine
CF050P2-003-10-DS
US: 106
 $
 Historical Pricing  Historical Stock Levels
Quantity
Location
