Z8F0431SH020SG - Zilog
Z8 Series 8 Bit 256 B RAM 4 kB Flash Surface Mount Microcontroller - SOIC-20
Technical Details
| Access Time | 20µs |
| Case/Package | SOIC |
| Core Architecture | eZ8 |
| Data Bus Width | 8b |
| Frequency | 20MHz |
| Lead Free | Lead Free |
| Max Frequency | 20MHz |
| Max Operating Temperature | 70°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 4kB |
| Memory Type | FLASH |
| Min Operating Temperature | 0°C |
| Min Supply Voltage | 2.7V |
| Number of I/Os | 17 |
| Number of Pins | 20 |
| Number of Programmable I/O | 17 |
| Number of Timers/Counters | 2 |
| Oscillator Type | Internal |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| RAM Size | 256B |
| RoHS | Compliant |
Compliance
RoHS : Unconfirmed

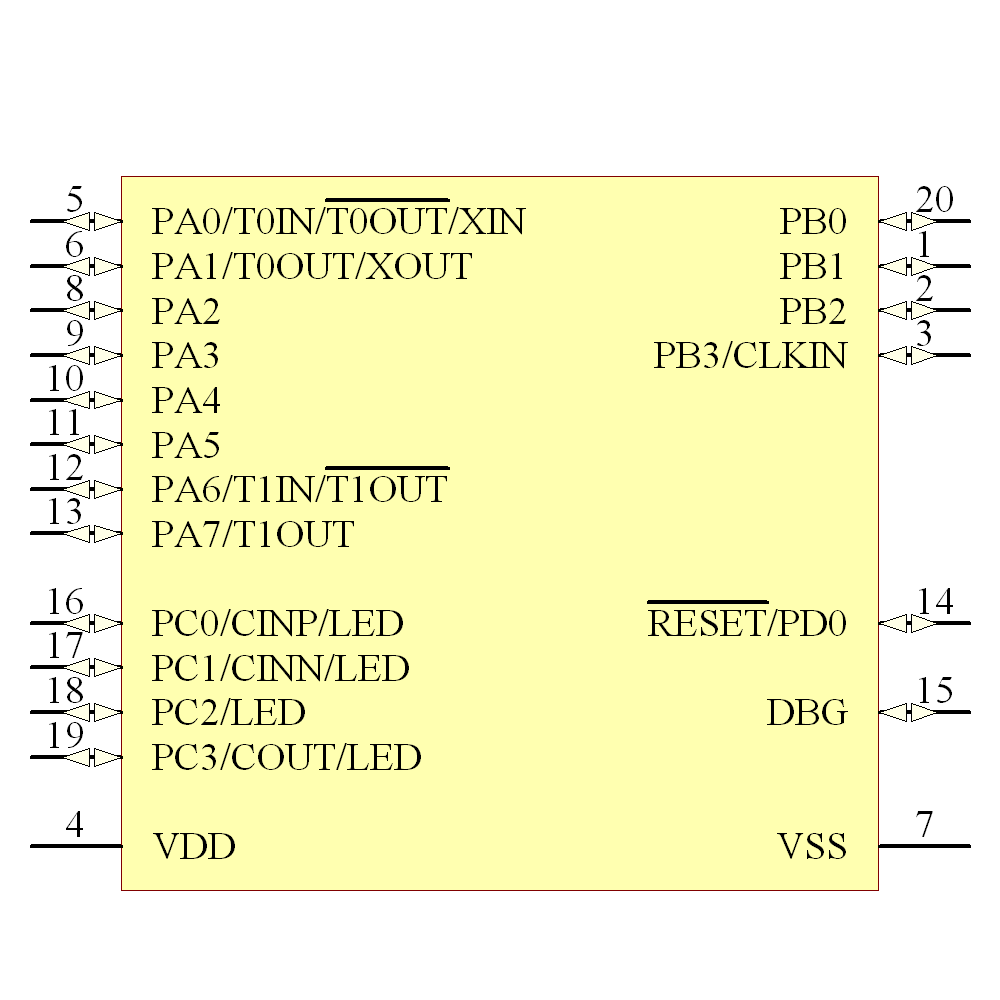

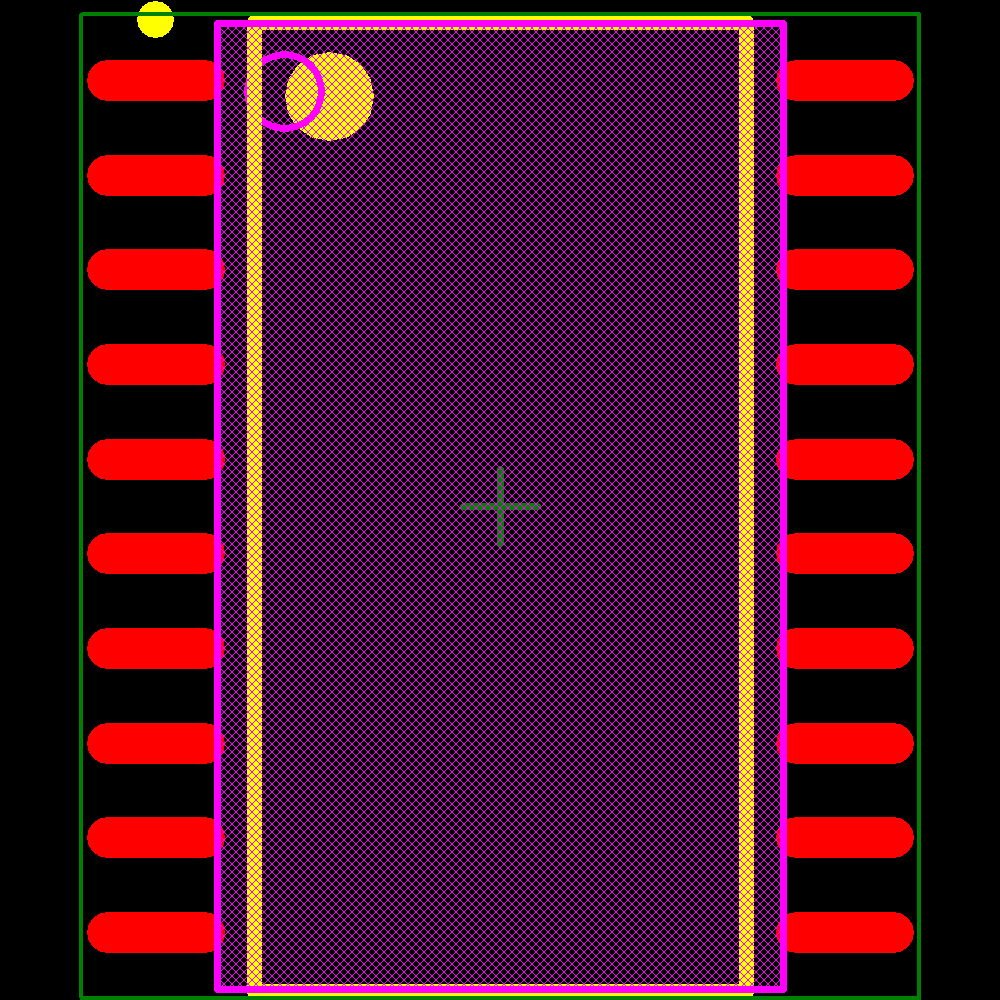

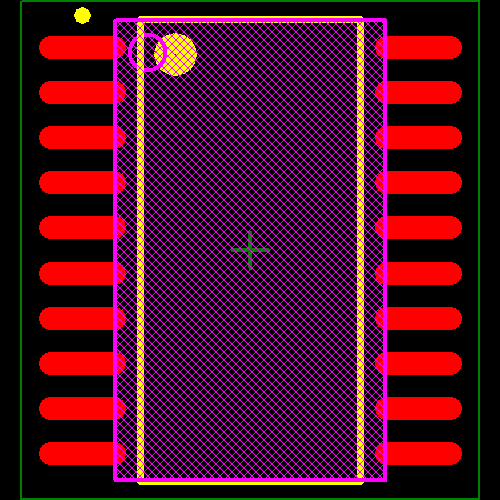

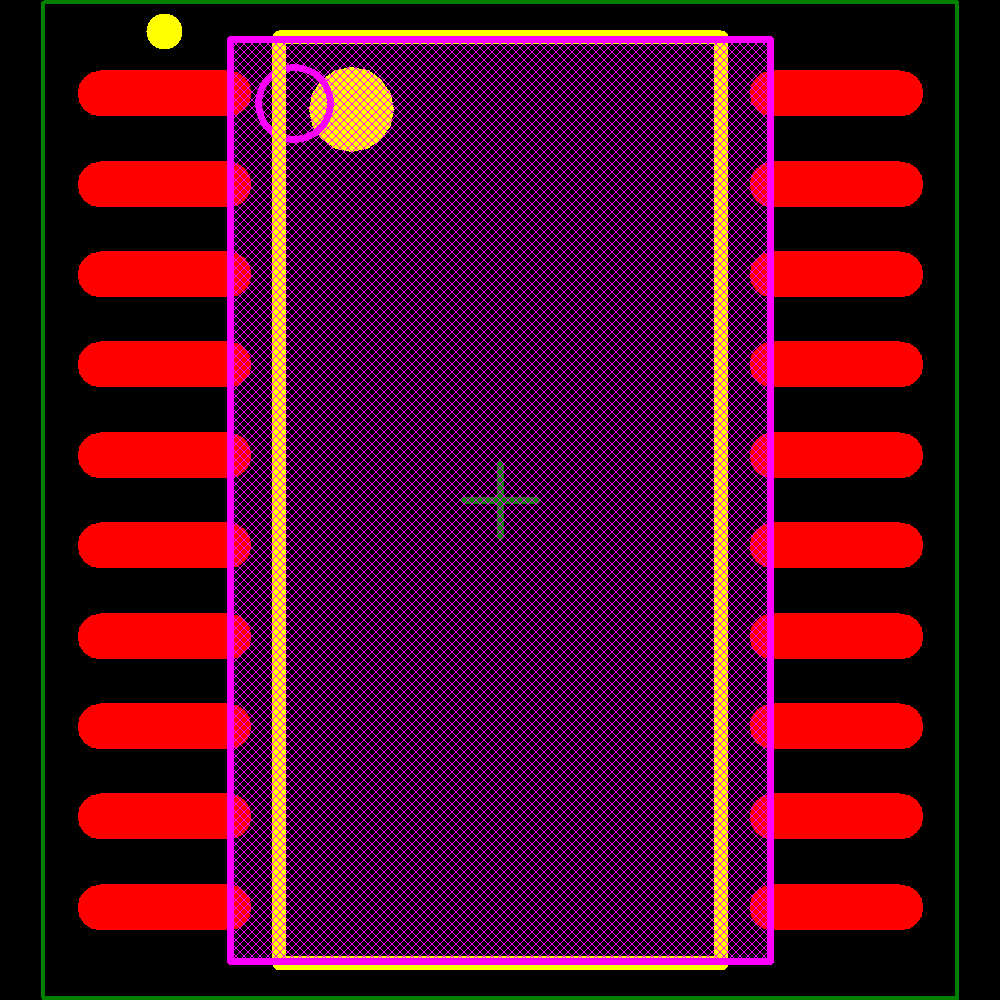

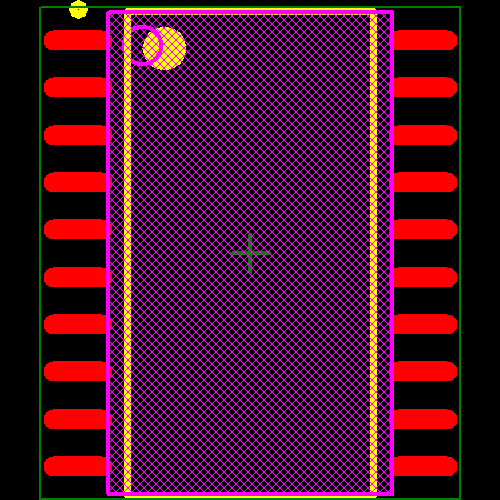

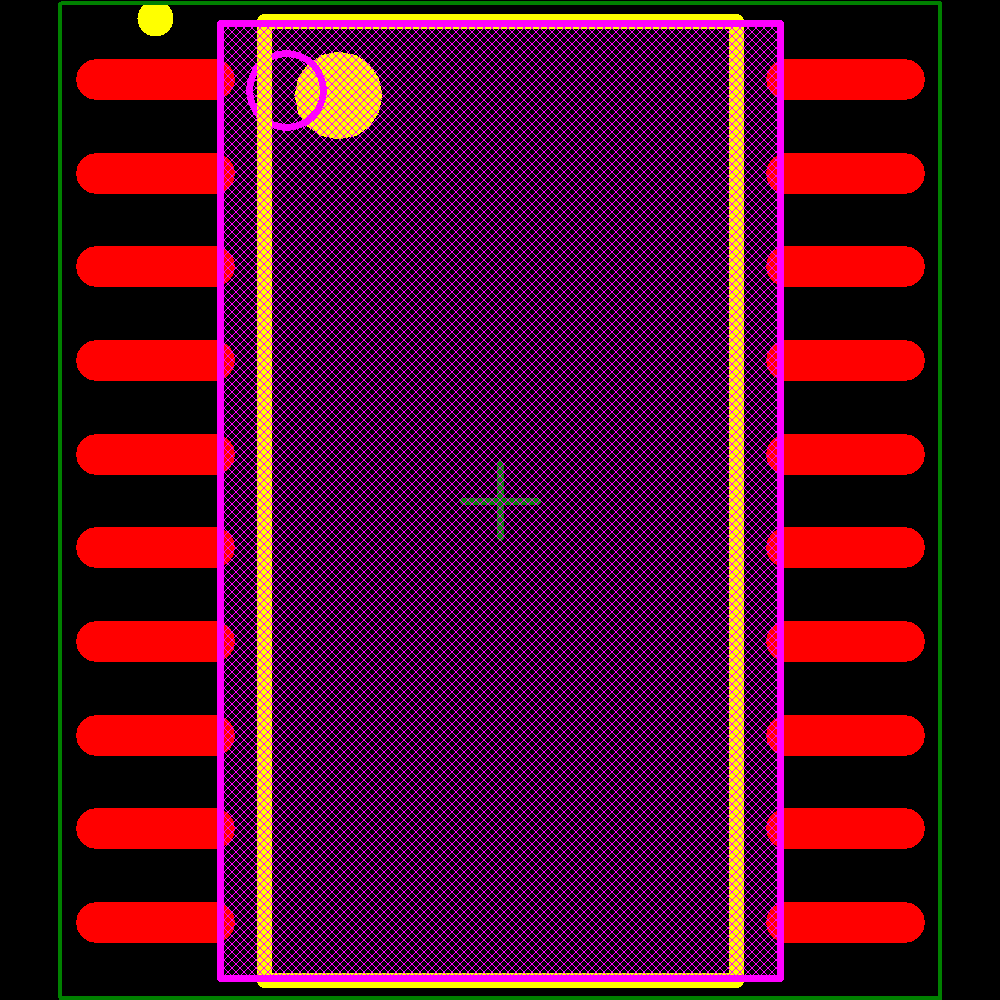

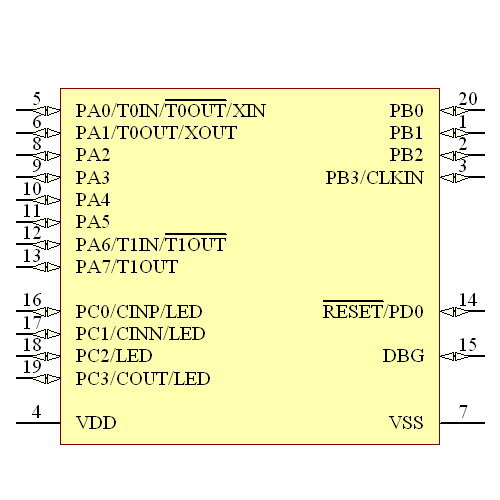

Images
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| DigiKey |
DE: 0
|
$ | 2.8969 | 2.1647 | 2.8969 | 2.8969 | 1.6183 | 1.4938 | ||
