Z8F083ASJ020SG - Zilog
Z8 Encore! XP® F083A Series 256 B RAM 8 kB Flash Microcontroller - SOIC-28
Technical Details
| Case/Package | SOP |
| China RoHS | Compliant |
| Core Architecture | Z8 |
| Data Bus Width | 8b |
| Frequency | 20MHz |
| Height - Seated (Max) | 2.64mm |
| Harmonized Tariff Schedule (HTS) Code | 8542.31.00.15 |
| Introduction Date | 2007-09-07 |
| Lead Free | Lead Free |
| Length | 17.89mm |
| Max Frequency | 20MHz |
| Max Operating Temperature | 70°C |
| Max Power Dissipation | 430mW |
| Max Supply Voltage | 3.6V |
| Memory Size | 8kB |
| Memory Type | FLASH |
| Min Operating Temperature | 0°C |
| Min Supply Voltage | 2.7V |
| Number of I/Os | 23 |
| Number of Pins | 28 |
| Number of Programmable I/O | 23 |
| Number of Terminals | 28 |
| Number of Timers/Counters | 2 |
| Operating Supply Voltage | 3V |
| Oscillator Type | Internal |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Radiation Hardening | No |
| RAM Size | 256B |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Temperature Grade | Commercial |
| Terminal Pitch | 1.27mm |
| Watchdog Timer | Yes |
| Width | 7.5mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

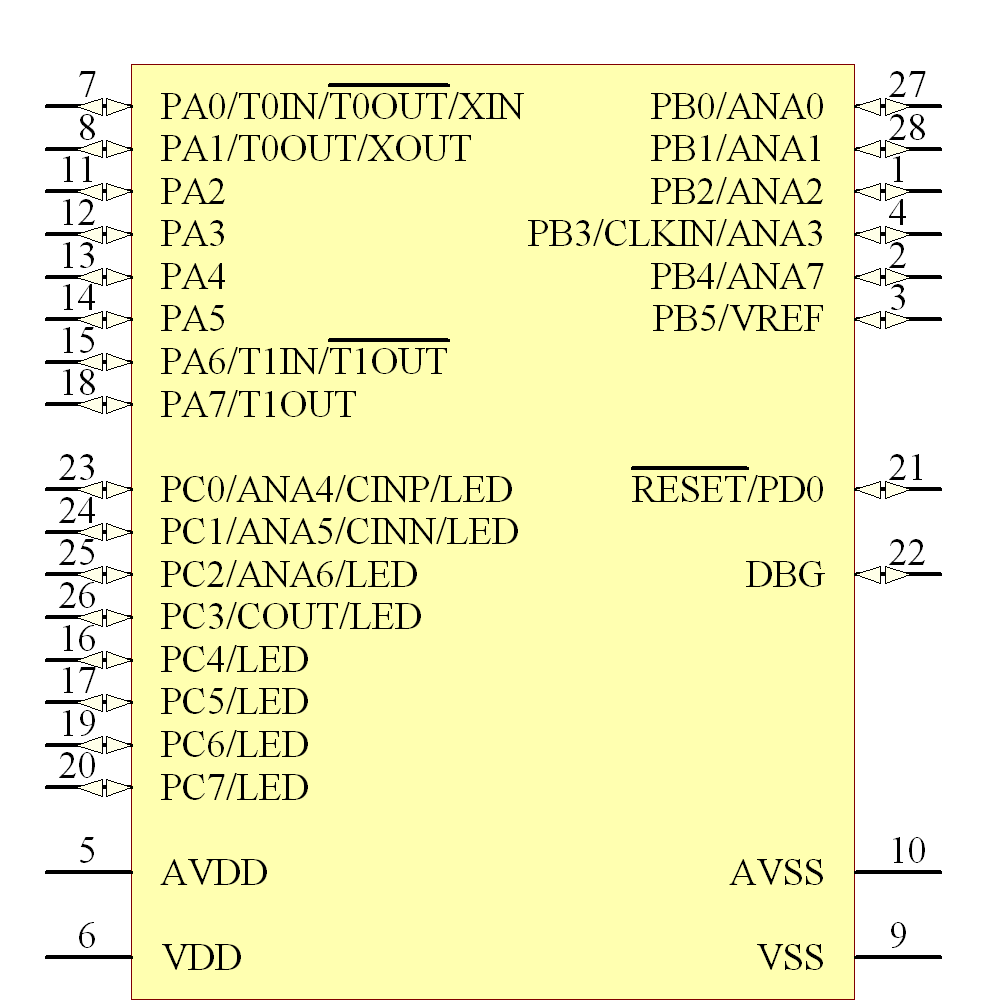

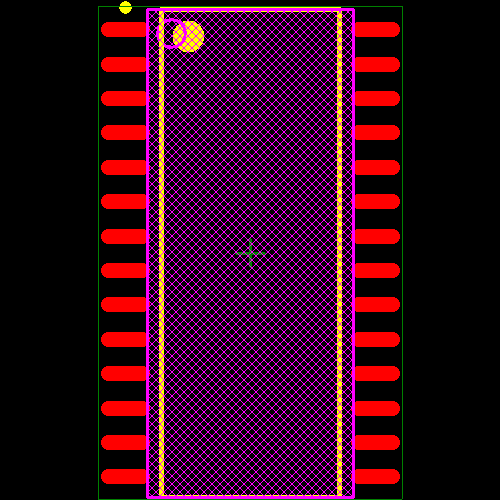

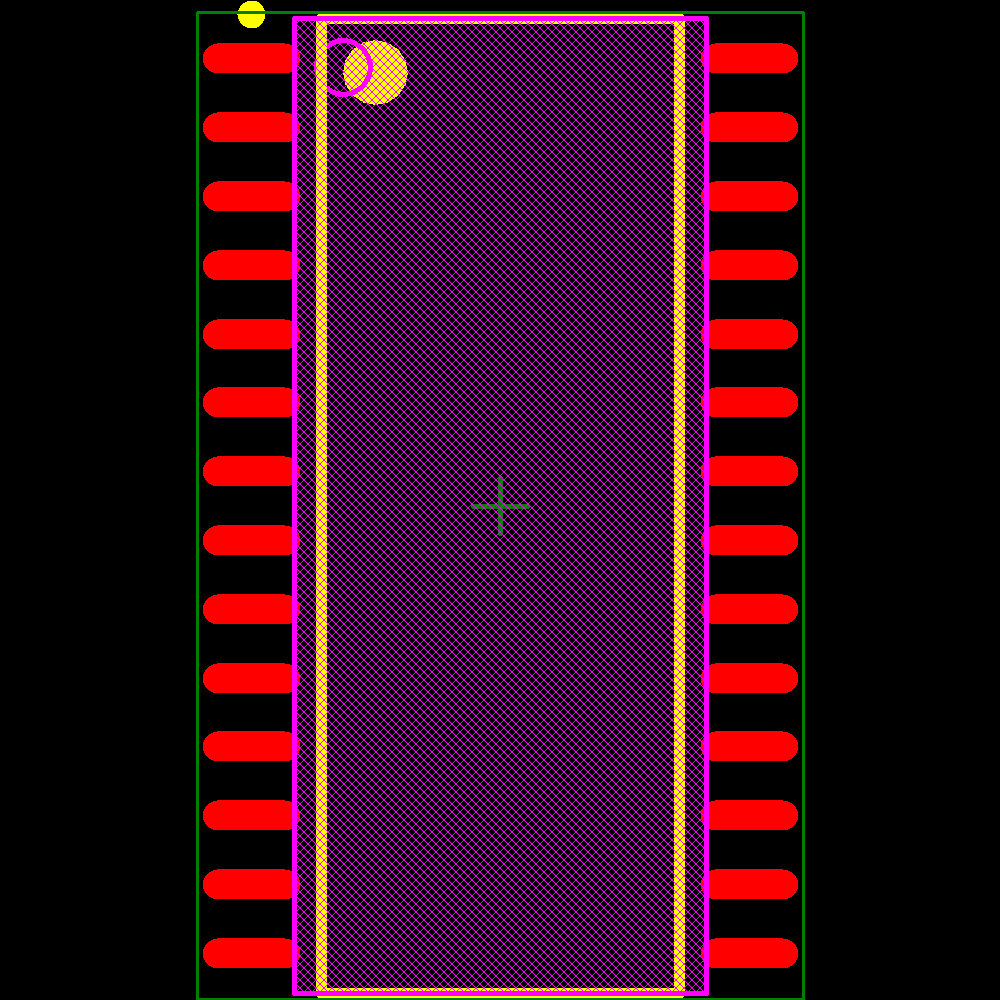

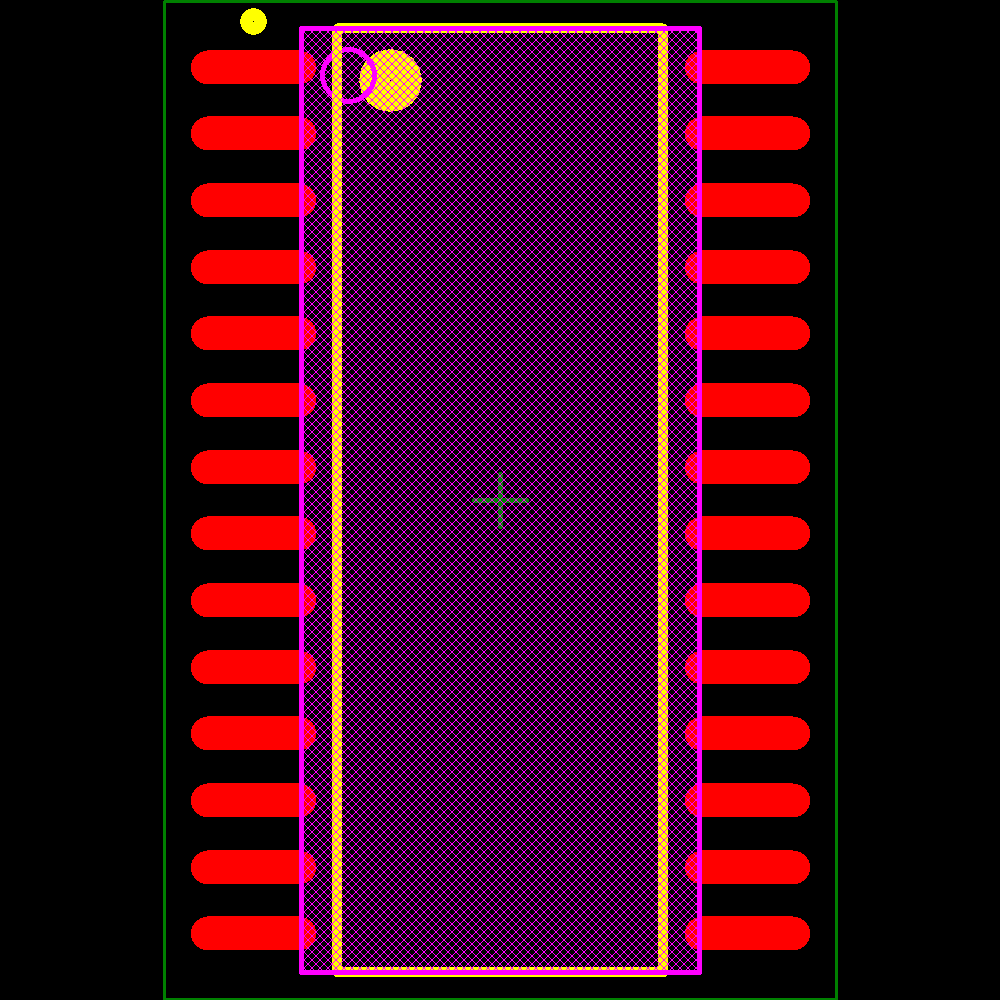

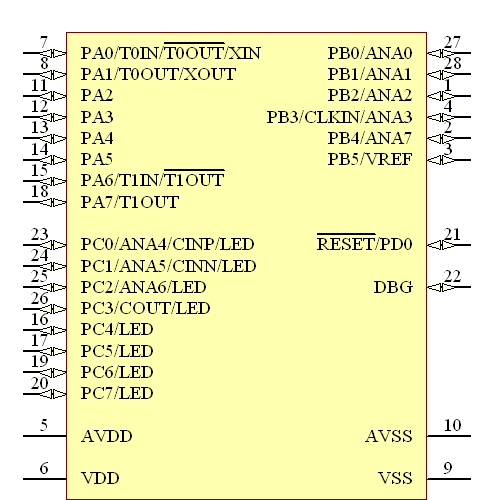

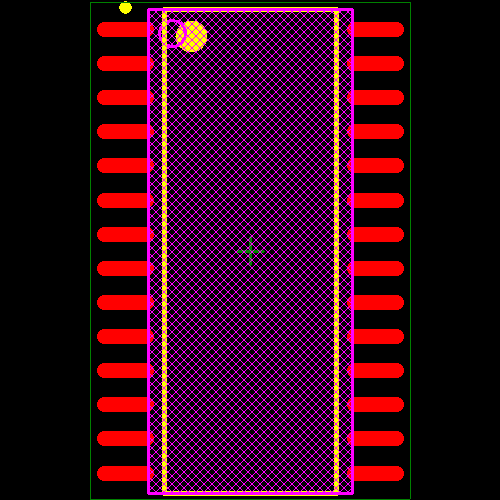

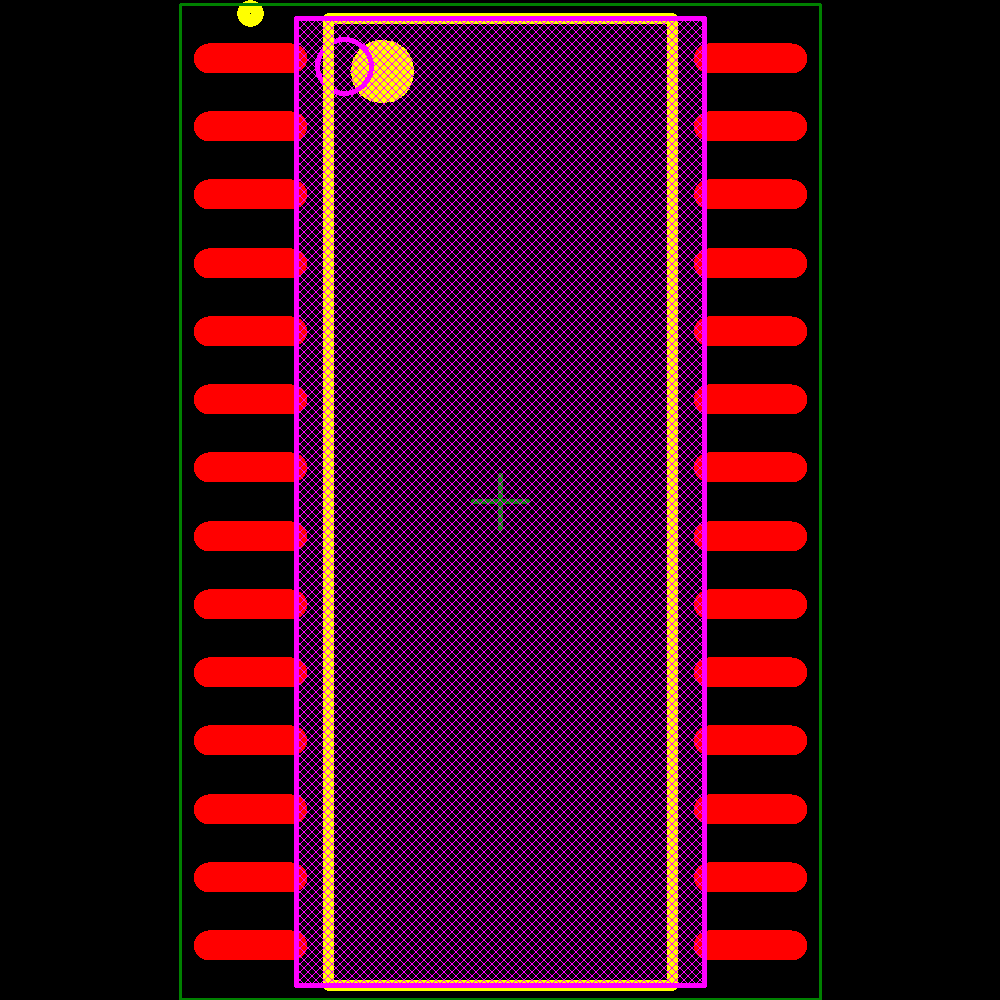

Images
