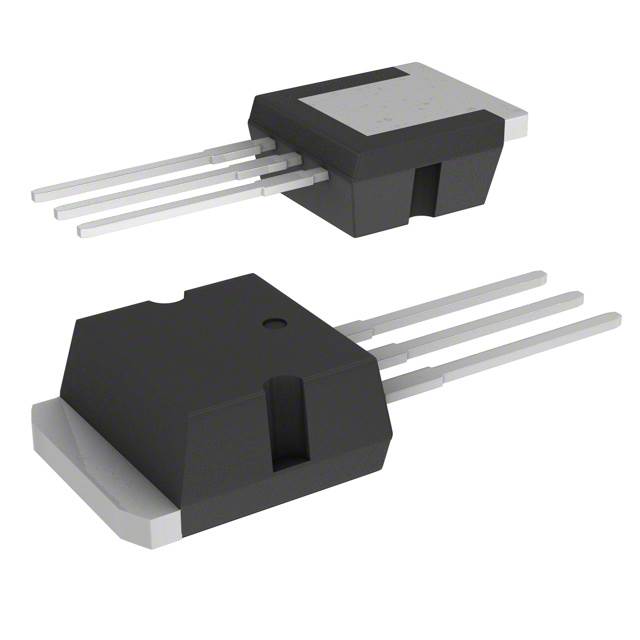

| Case/Package | TO-262-3 |
| China RoHS | Compliant |
| Continuous Drain Current (ID) | 12A |
| Drain to Source Breakdown Voltage | 500V |
| Drain to Source Resistance | 320mΩ |
| Drain to Source Voltage (Vdss) | 500V |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Fall Time | 10ns |
| Gate to Source Voltage (Vgs) | 25V |
| Input Capacitance | 960pF |
| Introduction Date | 2006-12-20 |
| Lifecycle Status | Obsolete |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 100W |
| Min Breakdown Voltage | 500V |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Elements | 1 |
| Number of Pins | 3 |
| Number of Terminals | 3 |
| Power Dissipation | 100W |
| Rds On Max | 320mΩ |
| REACH SVHC | Yes |
| Rise Time | 15ns |
| RoHS | Compliant |
| Turn-Off Delay Time | 40ns |
