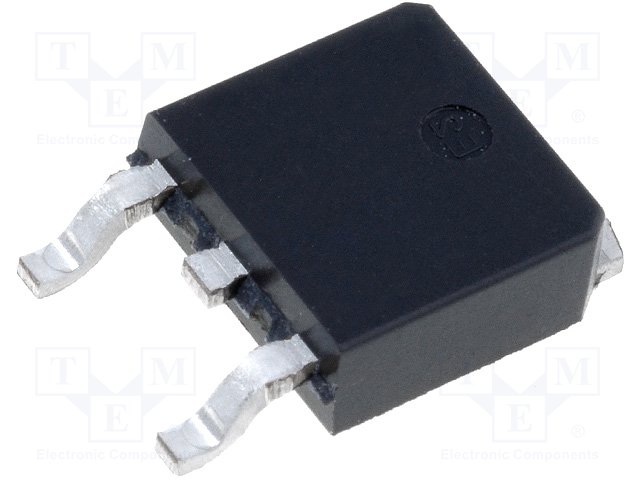

| Case/Package | DPAK |
| China RoHS | Non-Compliant |
| Continuous Drain Current (ID) | 12.5A |
| Country of Origin | Israel |
| Drain to Source Breakdown Voltage | -80V |
| Drain to Source Resistance | 25.2mΩ |
| Drain to Source Voltage (Vdss) | -80V |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Fall Time | 100ns |
| Gate to Source Voltage (Vgs) | 20V |
| Height | 2.507mm |
| Input Capacitance | 4.7nF |
| Introduction Date | 2005-12-02 |
| Lead Free | Lead Free |
| Length | 6.73mm |
| Lifecycle Status | Production |
| Max Junction Temperature (Tj) | 175°C |
| Max Operating Temperature | 175°C |
| Max Power Dissipation | 136W |
| Min Breakdown Voltage | 80V |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Pins | 3 |
| Number of Terminals | 2 |
| Power Dissipation | 8.3W |
| Radiation Hardening | No |
| Rds On Max | 25.2mΩ |
| REACH SVHC | Yes |
| Resistance | 25.2mΩ |
| Rise Time | 25ns |
| RoHS | Compliant |
| Schedule B | 8541290080, 8541290080|8541290080|8541290080|8541290080|8541290080 |
| Threshold Voltage | -3V |
| Turn-Off Delay Time | 95ns |
| Turn-On Delay Time | 45ns |
| Weight | 1.437803g |
| Width | 6.22mm |
